FRONT WHEEL
B9D1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9EF51680133 | CAST WHEEL FRONT | ₹ 5019 | 1 | ||
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5 | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 956021420000 | NUT U FLANGE | ₹ 32 | 1 | ||

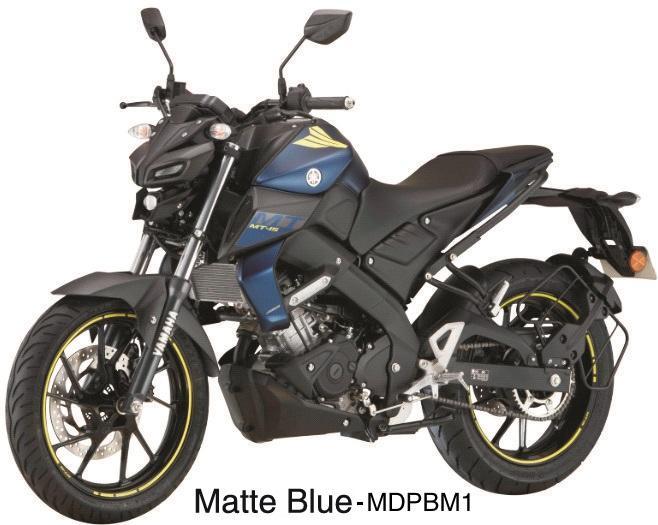

| 12 | B9DF531B0000 | EMBLEM WHEEL | ₹ 80 | 2 | FOR MDPBM1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The agility and steering precision of the Yamaha MT15 begin with the front wheel components, designed for lightweight strength and durability. This collection features the Front Cast Wheel and the high quality Tire Front ( 100/80-17 ) MRF, providing the grip needed for responsive feedback. Included in this catalog are the Wheel Axle and the high quality Bearings, which ensure low friction rotation and long term reliability on all road surfaces. The Oil Seal and specialized Collar Wheel protect the internal parts from dust and moisture, maintaining the smooth performance of the front end over time. Every Nut U Flange and Rotor Sensor is manufactured to precise factory specifications, ensuring that your wheel remains perfectly balanced and your electronic systems receive accurate data. By choosing genuine Yamaha front wheel parts, you preserve the flickable nature of your motorcycle, ensuring every turn is executed with confidence and every ride remains smooth for the rider.
