HEADLIGHT
BAC1/B9P1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GH43000000 | HEADLIGHT ASSY | ₹ 3222 | 1 | ||
| 2 | 2LPH43470000 | BULB ( 12V-5W ) | ₹ 23 | 1 | ||
| 3 | B4GH43120000 | HOLDER SOCKET | ₹ 145 | 1 | ||
| 4 | 904801410100 | GROMMET | ₹ 10 | 2 | ||
| 5 | 90387068D400 | COLLAR | ₹ 7 | 2 | ||
| 6 | 958270602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 7 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 8 | B4GF31750000 | BRACKET HEADLIGHT STAY 1 | ₹ 79 | 1 | ||
| 9 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 10 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 11 | B4GF31210000 | COVER UPPER 1 | ₹ 82 | 1 | ||
| 12 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 14 | 958270801600 | BOLT FLANGE | ₹ 10 | 1 | ||
| 15 | 90387068N200 | COLLAR | ₹ 11 | 1 | ||

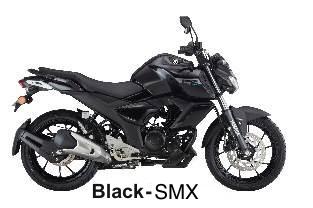

| 16A | B4GF312200P0 | COVER OUTER 1 SMX | ₹ 132 | 1 | FOR SMX | |

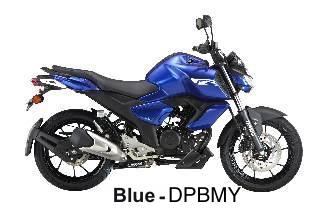

| 16B | B4GF312200P1 | COVER OUTER 1 DPBMY | ₹ 132 | 1 | FOR DPBMY | |
| 17 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 19A | B4GF313200P0 | COVER OUTER 2 SMX | ₹ 132 | 1 | FOR SMX | |
| 19B | B4GF313200P1 | COVER OUTER 2 DPBMY | ₹ 132 | 1 | FOR DPBMY | |
| 20 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Piercing through the darkness becomes an effortless task when your Yamaha FZ V3 is equipped with its signature Headlight assembly. This crucial component defines the face of the motorcycle while providing a powerful beam to illuminate the diverse obstacles of Indian roads at night. The Headlight Assy works with high efficiency to ensure you remain visible to oncoming traffic even in challenging low light conditions. Specialized hardware like the Bracket Headlight Stay 1 plus various Nut Spring pieces keep the entire structure secure against high speed wind resistance on the open highway. The Cover Upper 1 plus specialized GROMMET protect the sensitive electronics housed within the front cowl from dust plus debris during long journeys. Every Bolt Flange plus specialized Collar included in this assembly contributes to the rattle free experience that Yamaha FZ V3 owners truly appreciate. Investing in authentic lighting components preserves the aesthetic appeal.
