FUEL TANK 2
BAC2/B9P2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

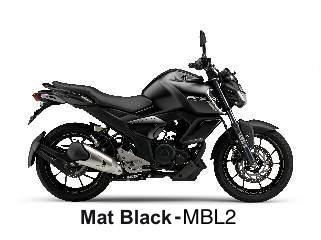

| 1A | B4GXF41201P2 | TANK SIDE COVER 1 | ₹ 1430 | 1 | FOR MBL2 | |

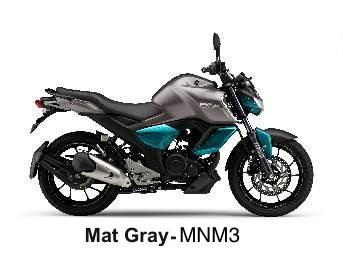

| 1B | B4GXF41210P3 | TANK SIDE COVER 1 MNM3 | ₹ 1429 | 1 | FOR MNM3 | |

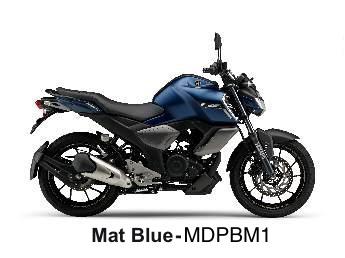

| 1C | B4GXF41220P4 | TANK SIDE COVER 1 MDPBM1 | ₹ 1429 | 1 | FOR MDPBM1 | |
| 1D | B4GXF41200P5 | TANK SIDE COVER 1 VRC1 | ₹ 1429 | 1 | FOR VRC1 | |
| 2A | B4GF42460000 | GRAPHIC 3 | ₹ 610 | 1 | FOR MBL2 | |
| 2B | B4GF42461000 | GRAPHIC 3 | ₹ 610 | 1 | FOR MNM3 | |
| 2C | B4GF42462000 | GRAPHIC 3 | ₹ 610 | 1 | FOR MDPBM1 | |
| 2D | B4GF42463000 | GRAPHIC 3 | ₹ 610 | 1 | FOR VRC1 | |
| 3 | B4GF413B0000 | EMBLEM | ₹ 37 | 1 | ||
| 4 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 5 | 901600580800 | SCREW, ROUND TAPPING | ₹ 7 | 1 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 7 | 958220602000 | BOLT FLANGE | ₹ 5 | 1 | ||
| 8 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 9 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 10 | B4GF836K0000 | PANEL INNER 1 | ₹ 106 | 1 | ||
| 11 | B4GF83960000 | PLATE 1 | ₹ 49 | 1 | ||
| 12 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 5 | ||
| 13 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 14 | B4GF837N0000 | GRILL AIR INTAKE 1 | ₹ 479 | 1 | ||
| 15A | B4GXF41300P2 | TANK SIDE COVER 2 MBL2 | ₹ 1429 | 1 | FOR MBL2 | |
| 15B | B4GXF41310P3 | TANK SIDE COVER 2 MNM3 | ₹ 1429 | 1 | FOR MNM3 | |
| 15C | B4GXF41320P4 | TANK SIDE COVER 2 MDPBM1 | ₹ 1429 | 1 | FOR MDPBM1 | |
| 15D | B4GXF41300P5 | TANK SIDE COVER 2 VRC1 | ₹ 1429 | 1 | FOR VRC1 | |
| 16A | B4GF42470000 | GRAPHIC | ₹ 610 | 1 | FOR MBL2 | |
| 16B | B4GF42471000 | GRAPHIC | ₹ 610 | 1 | FOR MNM3 | |
| 16C | B4GF42472000 | GRAPHIC | ₹ 610 | 1 | FOR MDPBM1 | |
| 16D | B4GF42473000 | GRAPHIC | ₹ 610 | 1 | FOR VRC1 | |
| 17 | B4GF413B0000 | EMBLEM | ₹ 37 | 1 | ||
| 18 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 19 | 901600580800 | SCREW, ROUND TAPPING | ₹ 7 | 1 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 21 | 958220602000 | BOLT FLANGE | ₹ 5 | 1 | ||
| 22 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 23 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 24 | B4GF836L0000 | PANEL INNER 2 | ₹ 106 | 1 | ||
| 25 | B4GF83970000 | PLATE 2 | ₹ 49 | 1 | ||
| 26 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 5 | ||
| 27 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 28 | B4GF837R0000 | GRILL AIR INTAKE 2 | ₹ 493 | 1 | ||
| 29 | B4GF411H0000 | HOOK SIDE COVER 2 | ₹ 47 | 1 | ||
| 30 | 45SF17780000 | DAMPER LOCATING 1 | ₹ 8 | 1 | ||
| 31 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 32 | 904641600600 | CLAMP | ₹ 59 | 1 | ||
| 33 | B4GF41240000 | AIR SHROUD | ₹ 87 | 1 | ||
| 34 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 35 | 958270601400 | BOLT FLANGE | ₹ 18 | 2 | ||
| 36 | 2GSF43640000 | STAY | ₹ 8 | 1 | ||
| 37 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 38 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 4 | ||
| 39 | B4GF137U0000 | GUIDE AIR 1 | ₹ 80 | 1 | ||
| 40 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 41 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 1 | ||
| 42A | B4GF137W00P0 | SCOOP AIR 1 SMX | ₹ 202 | 1 | FOR MBL2 | |
| 42B | B4GF137W00P3 | SCOOP AIR 1 CM6 | ₹ 225 | 1 | FOR MNM3 | |
| 42C | B4GF137W00P4 | SCOOP AIR 1 MNM3 | ₹ 212 | 1 | FOR MDPBM1 | |
| 42D | B4GF137W00P5 | SCOOP AIR 1 VRC1 | ₹ 290 | 1 | FOR VRC1 | |
| 43 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 44 | B4GF137V0000 | GUIDE AIR 2 | ₹ 80 | 1 | ||
| 45 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 46 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 1 | ||
| 47A | B4GF137X00P0 | SCOOP AIR 2 SMX | ₹ 193 | 1 | FOR MBL2 | |
| 47B | B4GF137X00P3 | SCOOP AIR 2 CM6 | ₹ 225 | 1 | FOR MNM3 | |
| 47C | B4GF137X00P4 | SCOOP AIR 2 MNM3 | ₹ 212 | 1 | FOR MDPBM1 | |
| 47D | B4GF137X00P5 | SCOOP AIR 2 VRC1 | ₹ 290 | 1 | FOR VRC1 | |
| 48 | 901830580700 | NUT SPRING | ₹ 9 | 3 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - the aggressive silhouette of the Yamaha FZS V3 is defined by the sculpted panels of the fuel tank two assembly. these tank side cover units serve as a protective shield while enhancing the muscular aesthetics of the street fighter. airflow management is handled by the scoop air plus guide air components, which direct a cooling breeze toward the engine during high performance runs in the Indian heat. these parts are secured by a combination of rivets plus nut spring units to ensure they remain rattle free on uneven roads. beyond its visual appeal, the assembly features the tuning fork mark, representing the premium heritage of the brand. every grommet plus collar is designed to dampen vibrations, providing a refined feel during long distance touring. maintaining these body panels ensures the motorcycle continues to command respect on the road while protecting the internal fuel pump plus electrical systems. experience the perfect blend of form plus function. sculpted bodywork.
