FENDER

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	B4GF15110000	FENDER FRONT	₹ 254	1
2A	B4GXF15510P7	FENDER,OVER 1 ASSY.	₹ 660	1
2B	B4GXF15510P8	FENDER,OVER 1 ASSY.	₹ 660	1
2C	B4GXF15510P0	FENDER,OVER 1 ASSY.	₹ 660	1
3	B9EF843G0000	GRAPHIC 3	₹ 12	1
4A	B4GXF15B10P7	FENDER OVER 2 ASSY.	₹ 660	1
4B	B4GXF15B10P8	FENDER,OVER 2 ASSY.	₹ 660	1
4C	B4GXF15B10P0	FENDER OVER 2 ASSY.	₹ 660	1
5	B9EF843G0000	GRAPHIC 3	₹ 12	1
6	90387068C500	COLLAR	₹ 9	2
7	904800880100	GROMMET	₹ 10	2
8	958220602000	BOLT FLANGE	₹ 5	2
9	90387068S500	COLLAR	₹ 22	2
10	904801282400	GROMMET	₹ 14	2
11	901110686800	BOLT HEX. SOCKET BUTTON	₹ 26	2
12	B9PF16110000	FENDER, REAR	₹ 151	1
13	970120601400	BOLT	₹ 5	2
14	903870604800	COLLAR	₹ 8	2
15	90105068C600	BOLT, FLANGE	₹ 0	4
16	903870807900	COLLAR	₹ 88	4
17	B4GF16130000	STAY FENDER 1	₹ 182	1
18	B4GF16140000	STAY FENDER 2	₹ 182	1
19	B4GF16510000	COVER REAR FENDER	₹ 120	1
20	B4GF163A0000	COVER REAR FENDER 1	₹ 27	1
21	901490682900	SCREW	₹ 25	2
22	901830606900	NUT SPRING	₹ 159	2
23	970120601400	BOLT	₹ 5	2
24	903870604800	COLLAR	₹ 8	2
25	BK7F16410000	BRACKET REFLECTOR	₹ 38	1
26	902674884500	RIVET BLIND	₹ 9	1
27	2FCH51110000	REFLECTOR FRONT 1	₹ 26	2
28	957070550000	NUT FLANGE	₹ 1	2

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

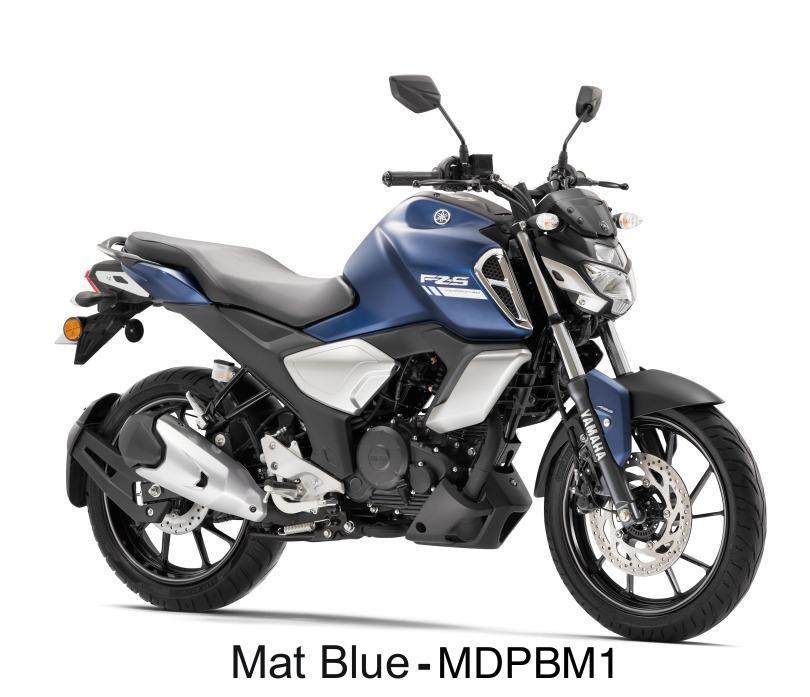

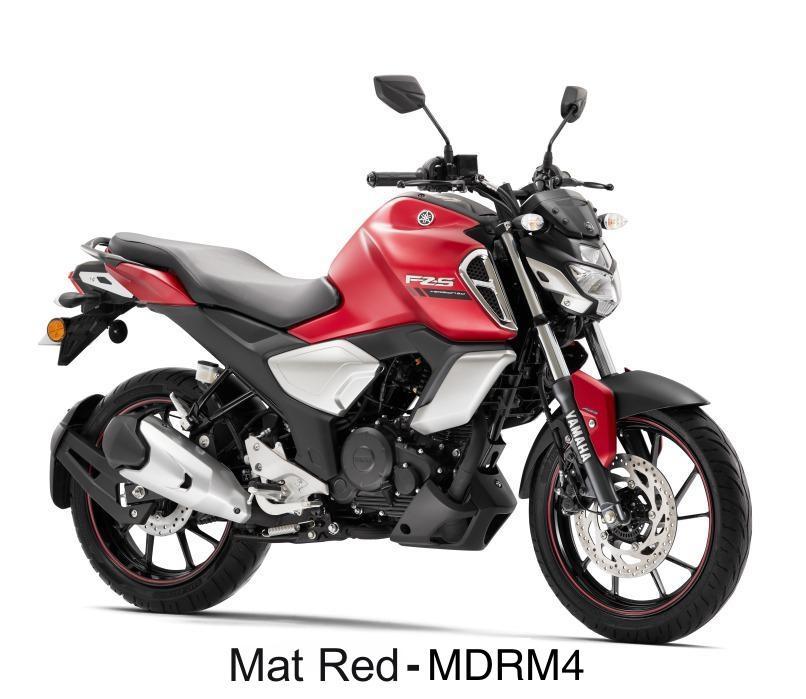

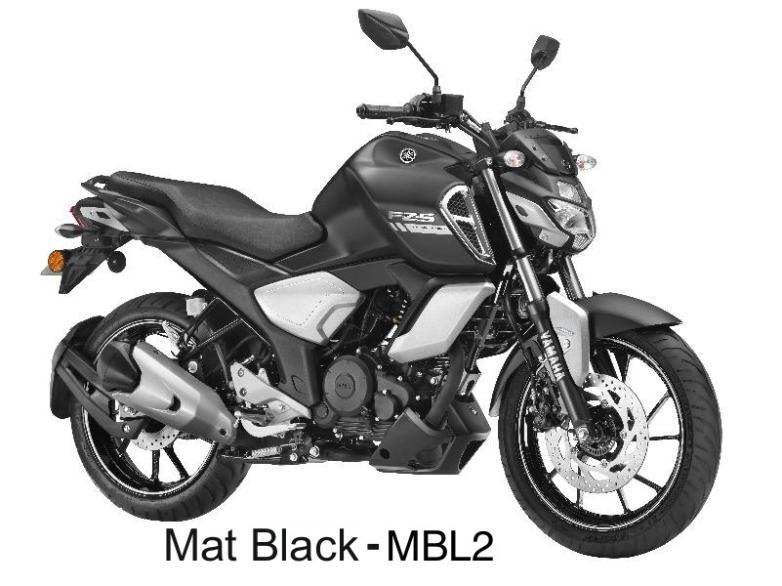

Description: - YAMAHA BAC5/B9P5 FZS V3 Series FENDER
