FRONT WHEEL
BAC5/B9P5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9EF51680133 | CAST WHEEL FRONT | ₹ 5019 | 1 | ||
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5A | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 5B | 941101782400 | TIRE | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 12 | 929071420000 | WASHER | ₹ 8 | 1 | ||

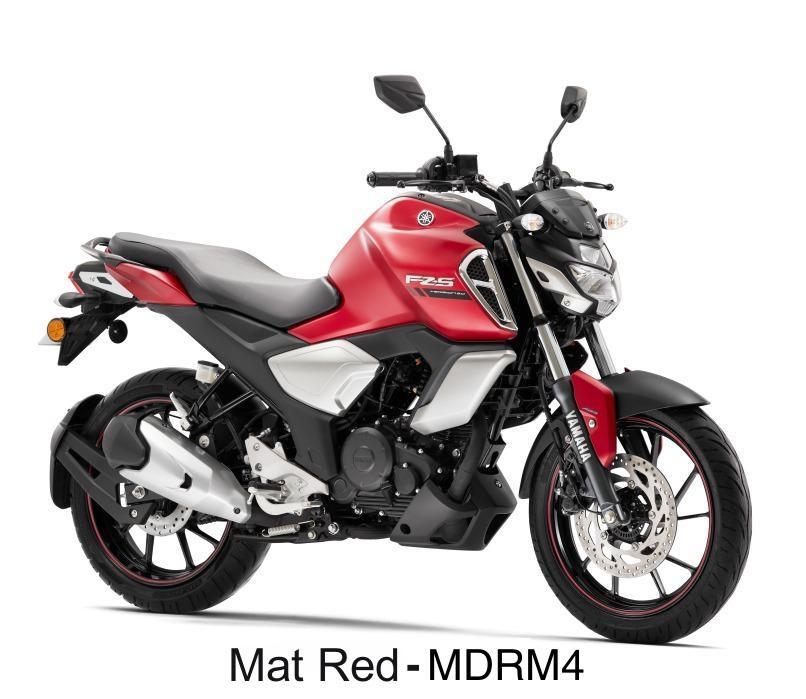

| 13A | 1CKF531B2000 | EMBLEM WHEEL | ₹ 27 | 2 | FOR MDRM4 | |

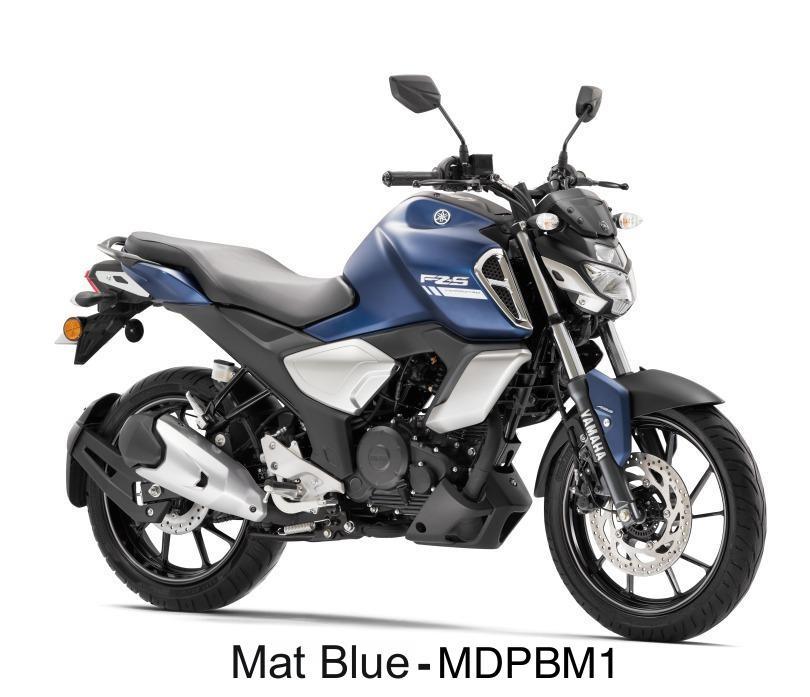

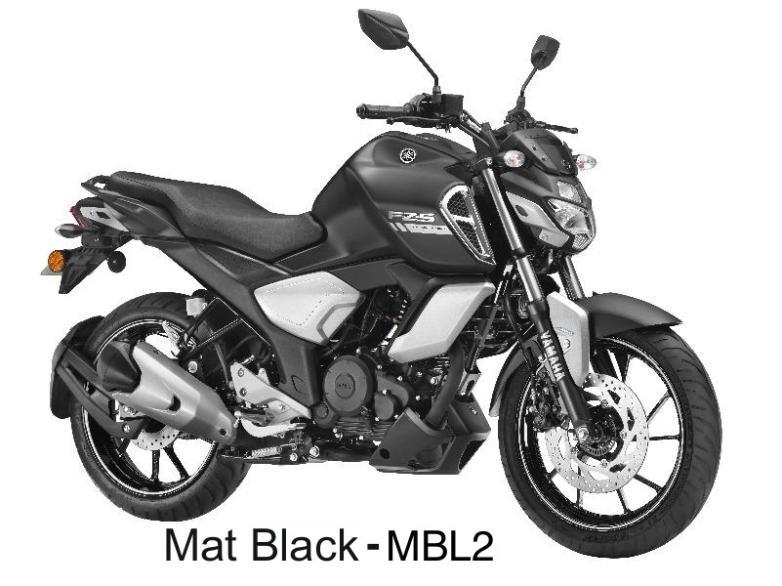

| 13B | 1CKF531B3000 | EMBLEM WHEEL | ₹ 80 | 2 | FOR MDPBM1,MBL2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - the steering precision of the Yamaha FZS V3 begins at the front wheel assembly, where the interaction with the road is most direct. this system features a lightweight cast wheel front that is engineered for structural rigidity plus aerodynamic efficiency. rotating on high quality internal bearings, the wheel provides a vibration free experience even at higher speeds on the highway. to protect the moving parts from environmental damage, the oil seal creates a robust barrier against the dust plus water common on Indian streets. the axle wheel provides the necessary support, anchoring the entire setup to the forks with absolute stability. this assembly also integrates the rotor sensor to provide data for the advanced braking system. every collar plus washer is precision machined to ensure a perfect fitment. maintaining the balance plus condition of the front wheel is essential for preserving the agile handling that this motorcycle is famous for, ensuring every rider input is translated into smooth plus accurate motion.
