FENDER
BACA/B9PA
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF15110000 | FENDER FRONT | ₹ 234 | 1 | ||

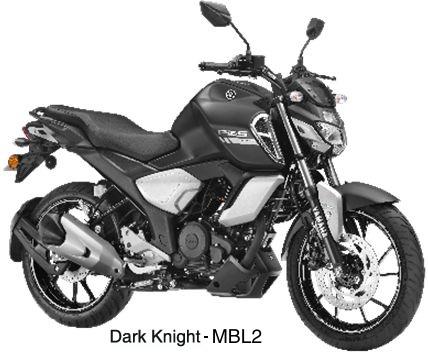

| 2 | B4GXF15510P0 | FENDER OVER 1 ASSY. | ₹ 608 | 1 | FOR MBL2 | |
| 3 | B9EF843G0000 | GRAPHIC 3 | ₹ 12 | 1 | ||
| 4 | B4GXF15B10P0 | FENDER OVER 2 ASSY. | ₹ 608 | 1 | FOR MBL2 | |
| 5 | B9EF843G0000 | GRAPHIC 3 | ₹ 12 | 1 | ||
| 6 | 90387068C500 | COLLAR | ₹ 8 | 2 | ||
| 7 | 904800880100 | GROMMET | ₹ 10 | 2 | ||
| 8 | 958220602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 9 | 90387068S500 | COLLAR | ₹ 20 | 2 | ||
| 10 | 904801282400 | GROMMET | ₹ 14 | 2 | ||
| 11 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 12 | B9PF16110000 | FENDER REAR | ₹ 139 | 1 | ||
| 13 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 14 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 15 | 90105068C600 | BOLT, FLANGE | ₹ 0 | 4 | ||
| 16 | 903870807900 | COLLAR | ₹ 81 | 4 | ||
| 17 | B4GF16130000 | STAY FENDER 1 | ₹ 167 | 1 | ||
| 18 | B4GF16140000 | STAY FENDER 2 | ₹ 167 | 1 | ||
| 19 | B4GF16510000 | COVER REAR FENDER | ₹ 110 | 1 | ||
| 20 | B4GF163A0000 | COVER REAR FENDER 1 | ₹ 24 | 1 | ||
| 21 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 22 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 23 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 24 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 25 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 26 | 902674884500 | RIVET BLIND | ₹ 9 | 1 | ||
| 27 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 28 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protection from road debris on your Yamaha FZS V3 is provided by the Front Fender plus Rear Fender assembly. The Front Fender is designed to channel water plus mud away from the rider during wet Indian commutes. The Rear Fender, along with the Guard Mud, keeps the back of the motorcycle clean from road spray. Every Bolt plus Collar in the assembly is engineered for a secure mount that can withstand road vibrations. The Stay Fender plus Cover Rear Fender provide the necessary structural support plus styling for these panels. Small details like the Bracket Reflector plus Reflector Front enhance your visibility to other drivers at night. Nut Spring fasteners allow for a quick plus easy fitment during maintenance. Genuine fenders are made from high impact materials that can handle the occasional stone chip without cracking. Keep your machine plus yourself clean with these authentic fender components.
