SIDE COVER
0
BACA/B9PA
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF17110000 | COVER SIDE 1 | ₹ 123 | 1 | ||
| 2 | B4GXF83600P0 | PANEL COMP 1 SMX | ₹ 415 | 1 | ||
| 3 | B9PF173E0000 | GRAPHIC 1 | ₹ 119 | 1 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 5 | 977025001200 | SCREW TAPPING | ₹ 11 | 5 | ||
| 6 | 21CF17170000 | DAMPER | ₹ 2 | 2 | ||
| 7 | 902690681600 | RIVET | ₹ 14 | 2 | ||
| 8 | B4GF17210000 | COVER SIDE 2 | ₹ 123 | 1 | ||
| 9 | B4GXF83G00P0 | PANEL COMP 2 SMX | ₹ 415 | 1 | ||
| 10 | B9PF173F0000 | GRAPHIC 2 | ₹ 119 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 12 | 977025001200 | SCREW TAPPING | ₹ 11 | 5 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 902690681600 | RIVET | ₹ 14 | 2 | ||
| 15 | B4GXF17331P2 | COVER, SIDE 3 | ₹ 660 | 1 | ||
| 16 | B9PF174G0000 | GRAPHIC 3 | ₹ 195 | 1 | ||
| 17 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 19 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 20 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 1 | ||
| 21 | B4GXF17431P2 | COVER, SIDE 4 | ₹ 660 | 1 | ||
| 22 | B9PF174H0000 | GRAPHIC 4 | ₹ 195 | 1 | ||
| 23 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 24 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 25 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 26 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 1 | ||
| 27 | B4GF171E0000 | COVER SIDE 5 | ₹ 22 | 1 | ||
| 28 | 950220601600 | BOLT, FLANGE | ₹ 11 | 2 | ||
| 29 | 90387068N200 | COLLAR | ₹ 13 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

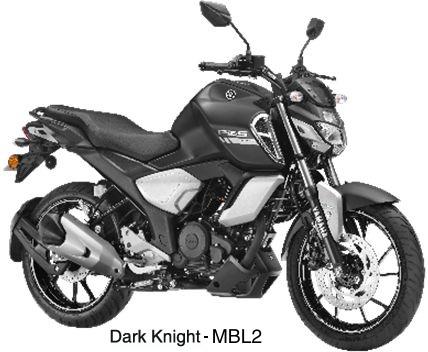

Description: - YAMAHA BACA/B9PA FZS V3 Series SIDE COVER
