COWLING 2
BC42
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

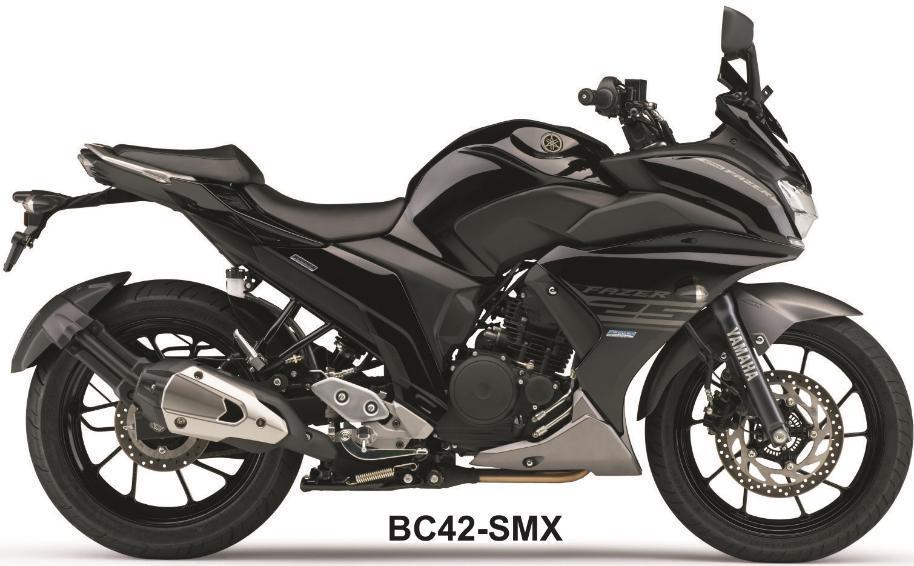

| 1A | BC4XF83620P3 | PANEL COMP 1 SMX | ₹ 1404 | 1 | FOR SMX | |

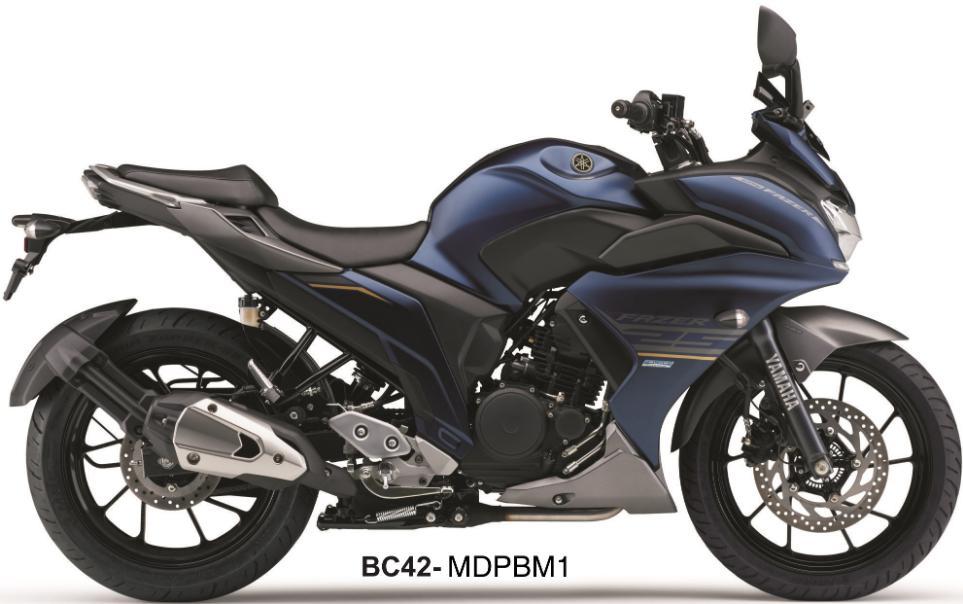

| 1B | BC4XF83610P4 | PANEL COMP 1 MDPBM1 | ₹ 1404 | 1 | FOR MDPBM1 | |
| 2 | B4GF45490000 | EMBLEM | ₹ 20 | 1 | ||
| 3A | BC4F83912000 | GRAPHIC 1 | ₹ 40 | 1 | FOR SMX | |
| 3B | BC4F83913000 | GRAPHIC 1 | ₹ 100 | 1 | FOR MDPBM1 | |
| 4A | BC4F83932000 | GRAPHIC 3 | ₹ 200 | 1 | FOR SMX | |
| 4B | BC4F83933000 | GRAPHIC 3 | ₹ 200 | 1 | FOR MDPBM1 | |
| 5 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 6A | BC4XF83G20P3 | PANEL COMP 2 SMX | ₹ 1404 | 1 | FOR SMX | |
| 6B | BC4XF83G30P4 | PANEL COMP 2 MDPBM1 | ₹ 1404 | 1 | FOR MDPBM1 | |
| 7A | BC4F83922000 | GRAPHIC 2 | ₹ 40 | 1 | FOR SMX | |
| 7B | BC4F83923000 | GRAPHIC 2 | ₹ 100 | 1 | FOR MDPBM1 | |
| 8A | BC4F83942000 | GRAPHIC 4 | ₹ 200 | 1 | FOR SMX | |
| 8B | BC4F83943000 | GRAPHIC 4 | ₹ 200 | 1 | FOR MDPBM1 | |
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 10 | BC4F137U00P0 | GUIDE AIR 1 -MBL2(MAT BLACK) | ₹ 562 | 1 | ||
| 11 | 905200281000 | DAMPER PLATE | ₹ 6 | 2 | ||
| 12 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 13 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 14 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 16 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 17 | BC4F137V00P0 | GUIDE AIR 2 -MBL2(MAT BLACK) | ₹ 562 | 1 | ||
| 18 | 905200281000 | DAMPER PLATE | ₹ 6 | 2 | ||
| 19 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 20 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 21 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 22 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 23 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 24 | BC4F836M0000 | PANEL INNER 3 | ₹ 69 | 1 | ||
| 25 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||
| 26 | BC4F836N0000 | PANEL INNER 4 | ₹ 73 | 1 | ||
| 27 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||
| 28 | BC4F838500P2 | COVER LOWER MNM3 | ₹ 623 | 1 | ||
| 29 | 904801400300 | GROMMET | ₹ 8 | 1 | ||
| 30 | 90387068C200 | COLLAR | ₹ 7 | 1 | ||
| 31 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 32 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 33 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 34 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 35 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 36 | BC4F839500P2 | COVER UNDER MNM3 | ₹ 623 | 1 | ||
| 37 | 904801400300 | GROMMET | ₹ 8 | 1 | ||
| 38 | 90387068C200 | COLLAR | ₹ 7 | 1 | ||
| 39 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 40 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 41 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 42 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 43 | 901830580700 | NUT SPRING | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The sophisticated and aerodynamic identity of the Yamaha FAZER 25 is defined by its specialized body panels and air management components for performance. This catalog features the vital Panel Comp and Guide Air sets that direct airflow to keep your engine running at optimal temperatures during long rides. Each part is precision molded to fit the refined lines of the motorcycle, providing a seamless look while protecting the internal hardware from road debris. Included in this selection are various specialized Graphics and Nut Springs that ensure a secure and vibration free installation on rough roads across the country today. The addition of specialized Dampers and decorative Emblems ensures that your motorcycle retains its sharp and premium appearance through years of exposure to the intense sun and rain. By choosing genuine Yamaha body parts, you maintain the high quality finish and structural integrity of your machine. Trust in original panels for every journey you take.
