FENDER
BCW1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

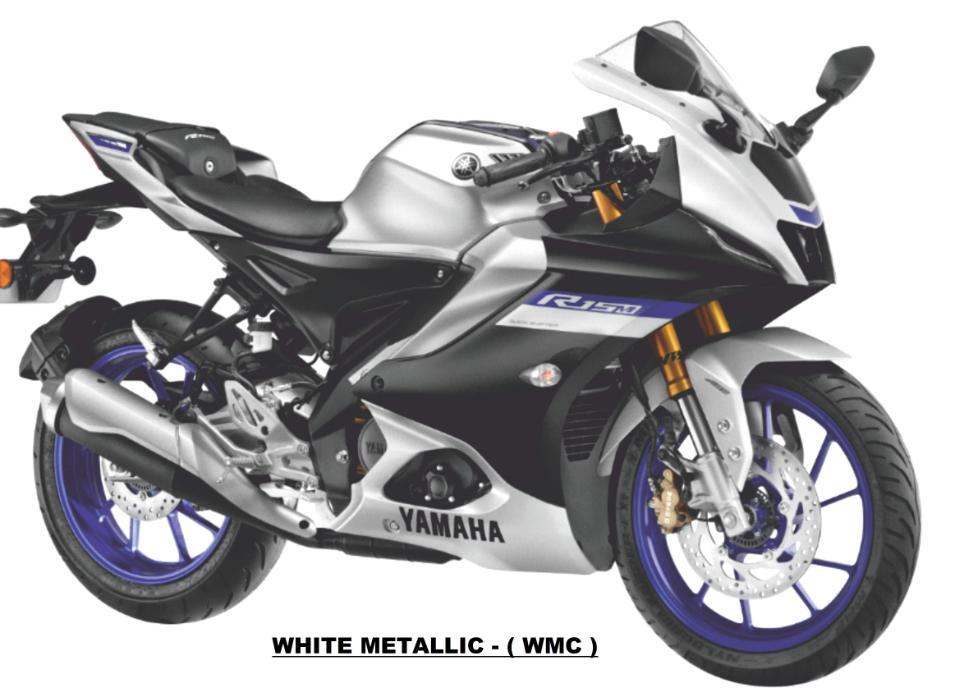

| 1 | BCWXF15100P3 | FENDER FRONT | ₹ 1531 | 1 | FOR WMC | |
| 2 | B9EF843G0000 | GRAPHIC 3 | ₹ 12 | 2 | ||
| 4 | 90387068C800 | COLLAR | ₹ 16 | 6 | ||
| 5 | 904801280500 | GROMMET | ₹ 8 | 6 | ||
| 6 | 901110613700 | BOLT HEX. SOCKET BUTTON | ₹ 35 | 5 | ||
| 7 | BCWF16110000 | FENDER REAR | ₹ 170 | 1 | ||
| 8 | 901590681700 | SCREW, WITH WASHER | ₹ 10 | 2 | ||
| 9 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 10 | BK7F16290100 | GUARD MUD | ₹ 161 | 1 | ||
| 11 | BK7F834E0000 | DAMPER 1 | ₹ 14 | 2 | ||
| 12 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 13 | BK7F16170000 | BRACKET FENDER | ₹ 285 | 1 | ||
| 14 | 90387066J900 | COLLAR | ₹ 7 | 4 | ||
| 15 | BK7F16130000 | STAY FENDER 1 | ₹ 50 | 2 | ||
| 16 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 17 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 4 | ||
| 18 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 4 | ||
| 19 | BCWF16420000 | GUARD FLAP | ₹ 47 | 1 | ||
| 20 | BCWF162R0000 | FENDER 2 | ₹ 175 | 1 | ||
| 21 | 901830403900 | NUT SPRING | ₹ 110 | 2 | ||
| 22 | 901730680600 | NUT, SQUARE | ₹ 11 | 1 | ||
| 23 | 901090622000 | BOLT | ₹ 19 | 2 | ||
| 24 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 25 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 26 | 902674884500 | RIVET BLIND | ₹ 9 | 1 | ||
| 27 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 28 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 29 | 36LF81511100 | GRIP DRIVER | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting your Yamaha R15 V4 from road spray plus dirt is the primary role of the Fender assembly, keeping your bike pristine. This assembly is designed to be lightweight plus aerodynamic, ensuring it does not interfere with the high speed performance of your supersport machine. Within this catalog, the Front Fender plus the Rear Fender are featured to provide full protection for your tires plus engine components. The Mud Guard plus the Fender Bracket ensure that these parts remain stable plus secure even in the face of heavy wind pressure. Genuine Yamaha fenders are made from high impact materials that resist damage from stones plus road grit during your travels. Using authentic spares ensures that all mounting points align perfectly with your frame plus forks. Maintain the cleanliness of your ride with durable fender components.
