LEG SHIELD
BCW2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

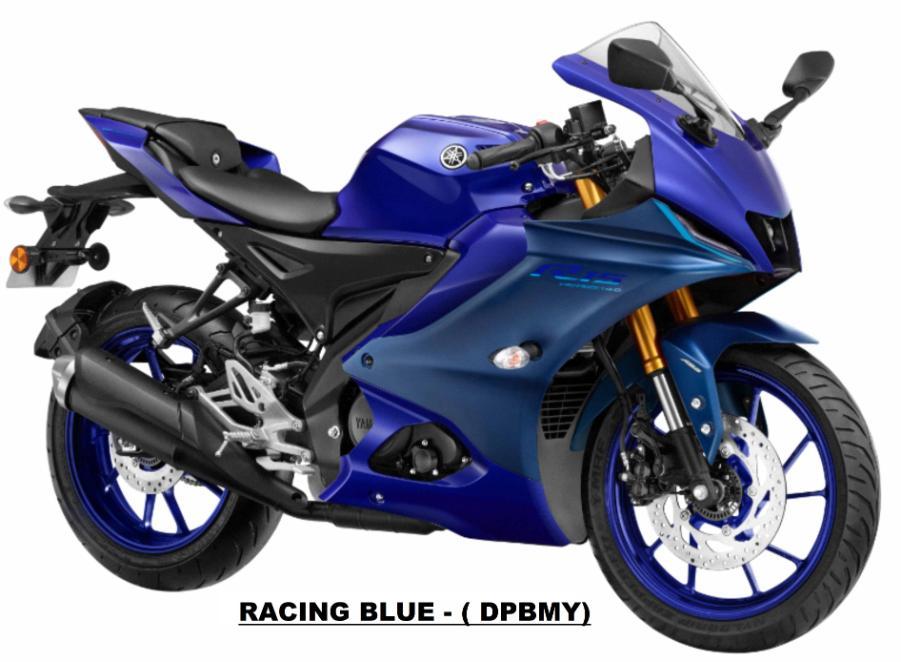

| 1A | BCWXF83600P1 | PANEL COMP 1 | ₹ 1859 | 1 | FOR DPBMY | |

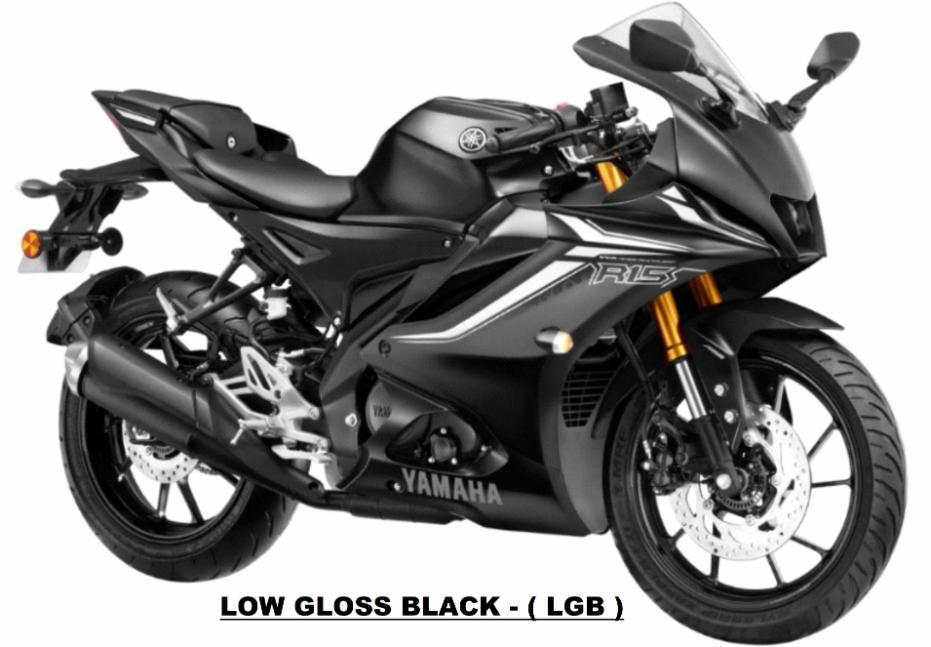

| 1B | BCWXF8360098 | PANEL COMP 1 | ₹ 1859 | 1 | FOR LGB | |

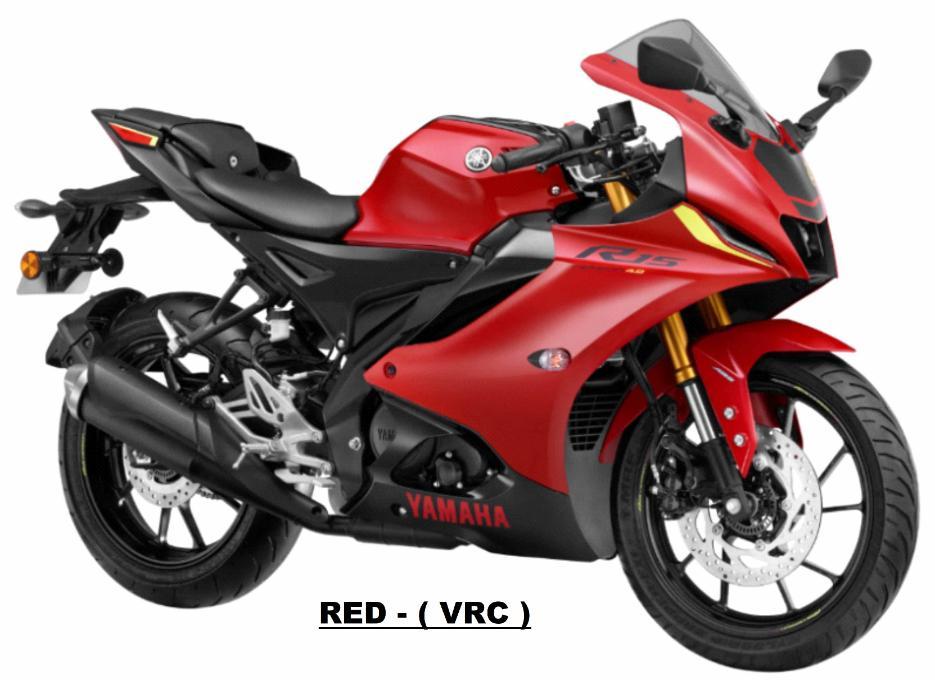

| 1C | BCWXF83600P2 | PANEL COMP 1 | ₹ 1859 | 1 | FOR VRC1 | |
| 2A | BCWF83980000 | GRAPHIC 5 | ₹ 16 | 1 | FOR DPBMY | |
| 2B | BCWF83981000 | GRAPHIC 5 | ₹ 35 | 1 | FOR LGB | |
| 2C | BCWF83982000 | GRAPHIC 5 | ₹ 23 | 1 | FOR VRC1 | |
| 3A | BCWF83931000 | GRAPHIC 3 | ₹ 67 | 1 | FOR DPBMY | |
| 3B | BCWF83932000 | GRAPHIC 3 | ₹ 38 | 1 | FOR LGB | |
| 3C | BCWF83933000 | GRAPHIC 3 | ₹ 71 | 1 | FOR VRC1 | |
| 4 | BCWF839E0000 | GRAPHIC 8 | ₹ 213 | 1 | FOR LGB | |
| 5 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 7 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 8A | BCWXF83G00P1 | PANEL COMP 2 | ₹ 1859 | 1 | FOR DPBMY | |
| 8B | BCWXF83G0098 | PANEL COMP 2 | ₹ 1859 | 1 | FOR LGB | |
| 8C | BCWXF83G00P2 | PANEL COMP 2 | ₹ 1859 | 1 | FOR VRC1 | |
| 9A | BCWF83990000 | GRAPHIC 6 | ₹ 16 | 1 | FOR DPBMY | |
| 9B | BCWF83991000 | GRAPHIC 6 | ₹ 35 | 1 | FOR LGB | |
| 9C | BCWF83992000 | GRAPHIC 6 | ₹ 23 | 1 | FOR VRC1 | |
| 10A | BCWF83941000 | GRAPHIC 4 | ₹ 67 | 1 | FOR DPBMY | |
| 10B | BCWF83942000 | GRAPHIC 4 | ₹ 38 | 1 | FOR LGB | |
| 10C | BCWF83943000 | GRAPHIC 4 | ₹ 71 | 1 | FOR VRC1 | |
| 11 | BCWF839F0000 | GRAPHIC 9 | ₹ 213 | 1 | FOR LGB | |
| 12 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 14 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 15 | BCWF837L0000 | PANEL CONSOLE 1 | ₹ 66 | 1 | ||
| 16 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 17 | BCWF837M0000 | PANEL CONSOLE 2 | ₹ 66 | 1 | ||
| 18 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 19A | BCWF838500P1 | COVER LOWER | ₹ 1680 | 1 | FOR DPBMY | |
| 19B | BCWWF8380098 | UNDER COVER ASSY.1 | ₹ 1783 | 1 | FOR LGB | |
| 19C | BCWWF83800P2 | UNDER COVER ASSY.1 | ₹ 1783 | 1 | FOR VRC1 | |
| 20A | BCWF839H0000 | EMBLEM 1 | ₹ 72 | 1 | FOR LGB | |
| 20B | BCWF839H1000 | EMBLEM 1 | ₹ 72 | 1 | FOR VRC1 | |
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 22 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 23 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 24 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 25 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 26 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 27A | BCWF839500P1 | COVER UNDER | ₹ 1680 | 1 | FOR DPBMY | |
| 27B | BCWWF8390098 | UNDER COVER ASSY 2 | ₹ 1783 | 1 | FOR LGB | |
| 27C | BCWWF83900P2 | UNDER COVER ASSY 2 | ₹ 1783 | 1 | FOR VRC1 | |
| 28A | BCWF839H0000 | EMBLEM 1 | ₹ 72 | 1 | FOR LGB | |
| 28B | BCWF839H1000 | EMBLEM 1 | ₹ 72 | 1 | FOR VRC1 | |
| 29 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 30 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 31 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 32 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 33 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 34 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 35 | BCWF836K0000 | PANEL INNER 1 | ₹ 132 | 1 | ||
| 36 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 37 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 38 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 39 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 40 | BCWF836L0000 | PANEL INNER 2 | ₹ 132 | 1 | ||
| 41 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 42 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 43 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 44 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 45 | BCWF836M0000 | PANEL INNER 3 | ₹ 286 | 1 | ||
| 46 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 47 | 902690681300 | RIVET | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting the lower profile of your Yamaha R15 V4 requires the durable Leg Shield assembly, which helps manage airflow plus protects engine components. This catalog provides the structural panels needed to maintain the sleek, racing inspired look of your motorcycle while providing functional protection. The Panel Comp plus the Under Cover Assembly are included to shield the internal parts from road debris plus water splashes during the monsoon. Each Graphic plus Emblem adds the final touch of style that makes the R-Series stand out in any crowd. Genuine Yamaha panels are designed for a perfect snap fit, ensuring there are no rattles or gaps in the bodywork. Investing in authentic shields protects the delicate cooling plus electrical systems located behind the fairings. Keep your bike looking new plus performing well with these high quality body components.
