SIDE COVER
BCW2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF17110000 | COVER SIDE 1 | ₹ 129 | 1 | ||
| 2 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 3 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 4 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 5 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 6 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 7 | BCWF17210000 | COVER SIDE 2 | ₹ 128 | 1 | ||
| 8 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 9 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 10 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 11 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 12 | 901490682900 | SCREW | ₹ 25 | 1 | ||

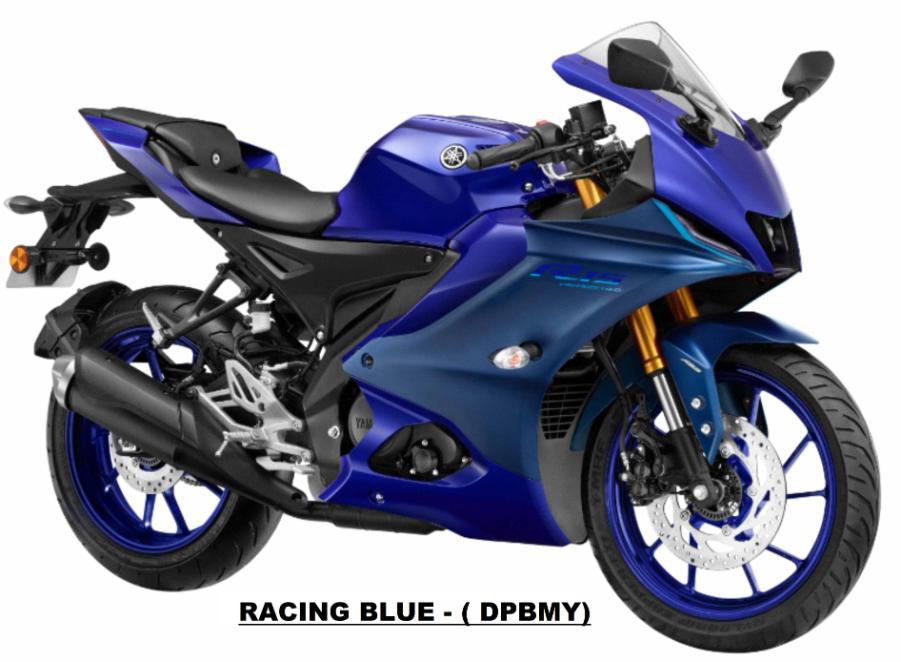

| 13A | BCWWF17301P1 | COVER SIDE | ₹ 1565 | 1 | FOR DPBMY | |

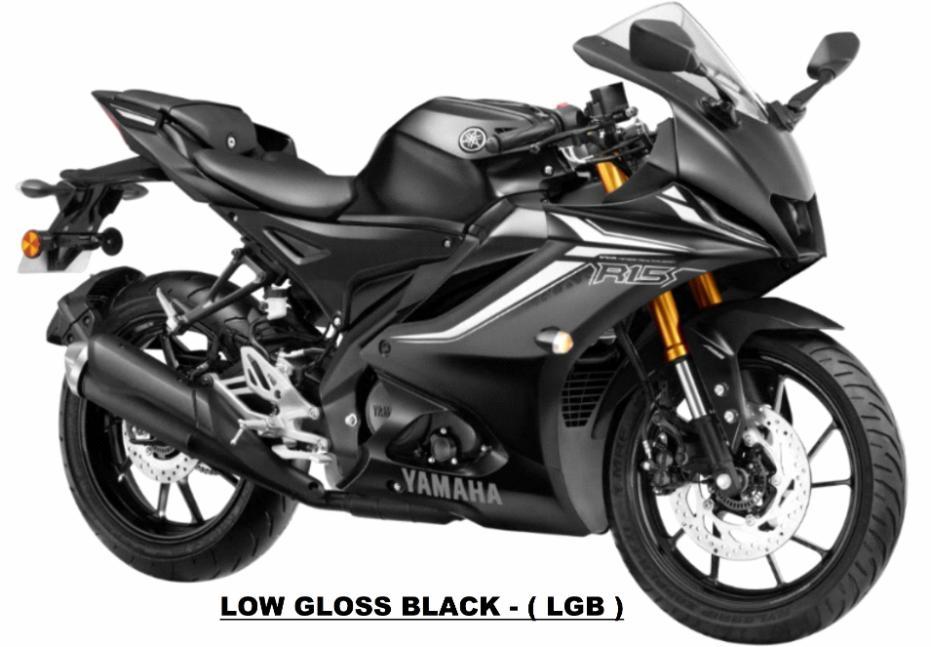

| 13B | BCWWF1730198 | COVER SIDE | ₹ 1565 | 1 | FOR LGB | |

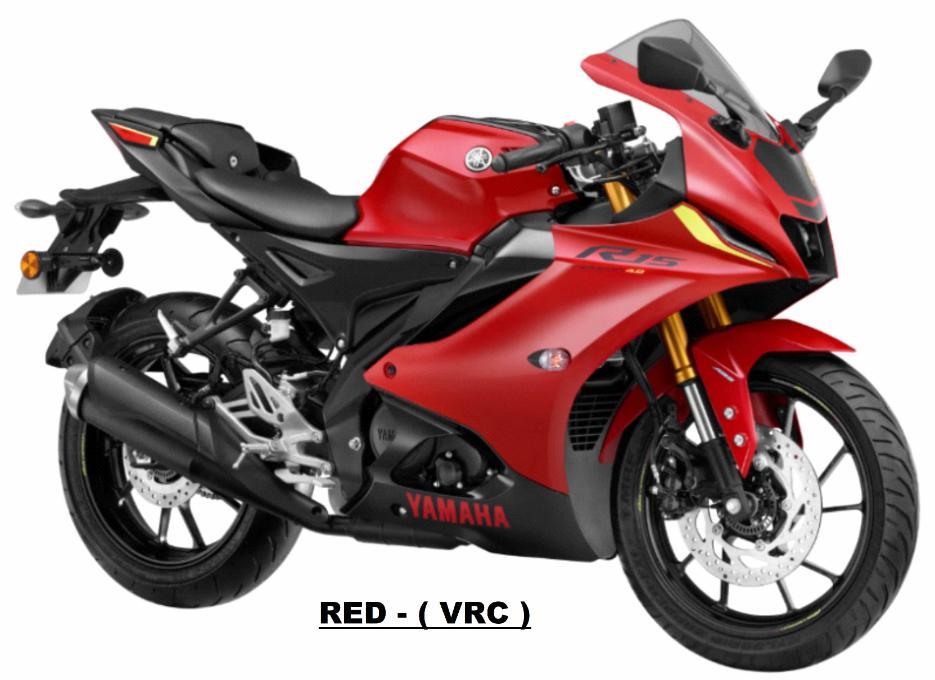

| 13C | BCWWF17301P2 | COVER SIDE | ₹ 1565 | 1 | FOR VRC1 | |
| 14A | BCWF173E1000 | GRAPHIC 1 | ₹ 28 | 1 | FOR DPBMY | |
| 14B | BCWF173E2000 | GRAPHIC 1 | ₹ 145 | 1 | FOR LGB | |
| 14C | BCWF173E3000 | GRAPHIC 1 | ₹ 145 | 1 | FOR VRC1 | |
| 15 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 16 | 903871086600 | COLLAR | ₹ 41 | 1 | ||
| 17 | 901100621500 | BOLT HEXAGON SOCKET HEAD | ₹ 19 | 1 | ||
| 18 | 90109068C600 | BOLT | ₹ 18 | 2 | ||
| 19 | 901110501600 | BOLT,HEX. SOCKET BUTTON | ₹ 12 | 1 | ||
| 20A | BCWWF17401P1 | COVER SIDE 4 | ₹ 1565 | 1 | FOR DPBMY | |
| 20B | BCWWF1740198 | COVER SIDE 4 | ₹ 1565 | 1 | FOR LGB | |
| 20C | BCWWF17401P2 | COVER SIDE 4 | ₹ 1565 | 1 | FOR VRC1 | |
| 21A | BCWF173F1000 | GRAPHIC 2 | ₹ 28 | 1 | FOR DPBMY | |
| 21B | BCWF173F2000 | GRAPHIC 2 | ₹ 145 | 1 | FOR LGB | |
| 21C | BCWF173F3000 | GRAPHIC 2 | ₹ 145 | 1 | FOR VRC1 | |
| 22 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 23 | 903871086600 | COLLAR | ₹ 41 | 1 | ||
| 24 | 901100621500 | BOLT HEXAGON SOCKET HEAD | ₹ 19 | 1 | ||
| 25 | 90109068C600 | BOLT | ₹ 18 | 2 | ||
| 26 | 901110501600 | BOLT,HEX. SOCKET BUTTON | ₹ 12 | 1 | ||
| 27 | BCWF171E0000 | COVER SIDE 5 | ₹ 42 | 1 | ||
| 28 | 90183050A600 | NUT SPRING | ₹ 73 | 2 | ||
| 29 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 30 | BCWF171X0000 | COVER SIDE 6 | ₹ 63 | 1 | ||
| 31 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 2 | ||
| 32 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 33 | BCWF175N0000 | COVER FLANGE | ₹ 27 | 1 | ||
| 34 | BK7F18710000 | TANK RECOVERY | ₹ 105 | 1 | ||
| 35 | BK7F18750000 | CAP | ₹ 12 | 1 | ||
| 36 | BK7F18170000 | PIPE 2 | ₹ 81 | 1 | ||
| 37 | BK7F247A0000 | HOSE 1 | ₹ 11 | 1 | ||
| 38 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 3 | ||
| 39 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 40 | BCWF82830000 | BRACKET POUCH | ₹ 244 | 1 | ||
| 41 | BCWF82840000 | BRACKET UNDER | ₹ 122 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The sleek, aerodynamic profile of the Yamaha R15 V4 is completed by the stylish Side Cover assembly, which protects internal components while enhancing airflow. These covers are essential for maintaining the clean lines of the motorcycle while shielding the battery plus electrical modules from the elements. Included in this catalog are the Side Cover plus the Recovery Tank, ensuring that your bike looks as good as it performs. Each Graphic plus Emblem is designed to match the factory finish, preserving the authentic look of your R-Series machine. Genuine Yamaha panels are made from durable plastics that resist cracking plus vibrations from the engine. Every GROMMET plus Screw is included for a perfect, rattle free installation every time. Keep your motorcycle looking sharp plus protected with high quality body components designed for a perfect fit.
