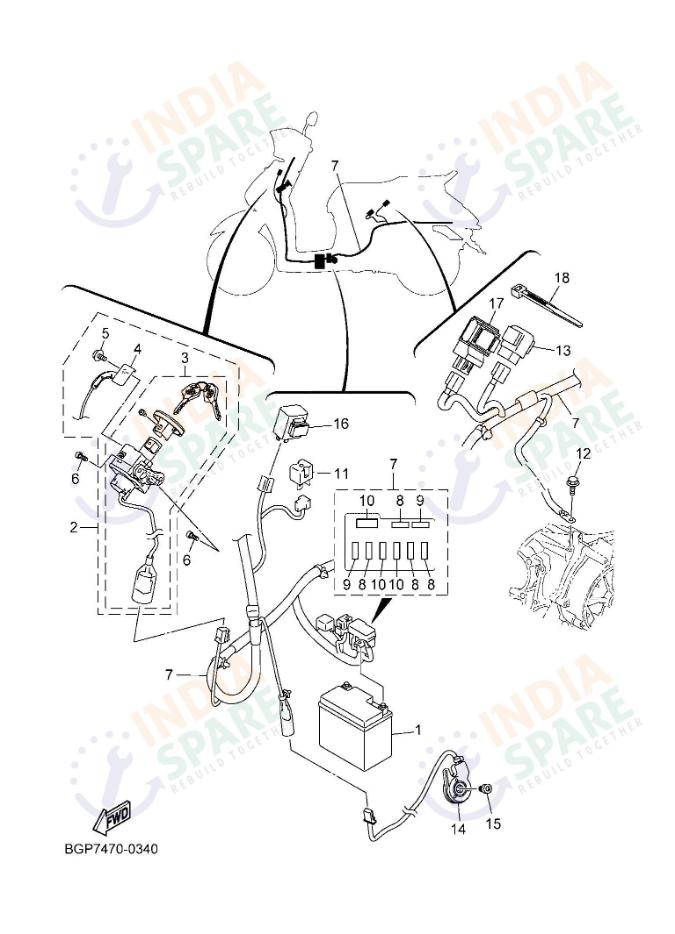

ELECTRICAL 2
BGP7
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGPH21000000 | BATTERY ASSY | ₹ 0 | 1 | ||
| 2 | B7JXH2520000 | MAIN SWITCH SUB ASSY | ₹ 935 | 1 | ||
| 3 | B7JH252E0000 | MAIN SWITCH COMP. | ₹ 804 | 1 | ||
| 4 | B7JF478E0000 | CABLE SEAT LOCK | ₹ 158 | 1 | ||
| 5 | 9760N0521200 | PAN HEAD SCREW | ₹ 5 | 1 | ||
| 6 | 913320601400 | BOLT | ₹ 3 | 2 | ||
| 7 | BGPH25902000 | WIRE HARNESS ASSY | ₹ 6265 | 1 | ||
| 8 | B4GH21510000 | FUSE (7.5A) | ₹ 4 | 4 | ||
| 9 | BK7H21511000 | FUSE -15 AMP | ₹ 7 | 2 | ||
| 10 | BK7H21518000 | FUSE -2 AMP | ₹ 25 | 3 | ||
| 11 | 3WP819800000 | DIODE ASSY | ₹ 270 | 1 | ||
| 12 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 13 | B44H19400000 | STARTER RELAY ASSY | ₹ 164 | 1 | ||
| 14 | B7JH25660000 | SWITCH SIDE STAND | ₹ 440 | 1 | ||
| 15 | 901100689300 | BOLT HEXAGON SOCKET HEAD | ₹ 10 | 1 | ||
| 16 | 5TSH33500100 | FLASHER RELAY | ₹ 160 | 1 | ||
| 17 | BGPH57400000 | CONTROL UNIT ASSY | ₹ 3120 | 1 | ||
| 18 | 904648080200 | CLAMP | ₹ 13 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Maintain your scooter's electrical reliability with the Yamaha Fascino Electrical 2 assembly. This kit includes the Main Switch Sub Assy, Starter Relay Assy, and a complete set of Fuses ranging from 2 Amp to 15 Amp. It also features the Side Stand Switch and Control Unit Assy for advanced vehicle management. These genuine electrical components are designed to handle the specific voltage and current requirements of your Fascino, preventing short circuits and starting issues.
