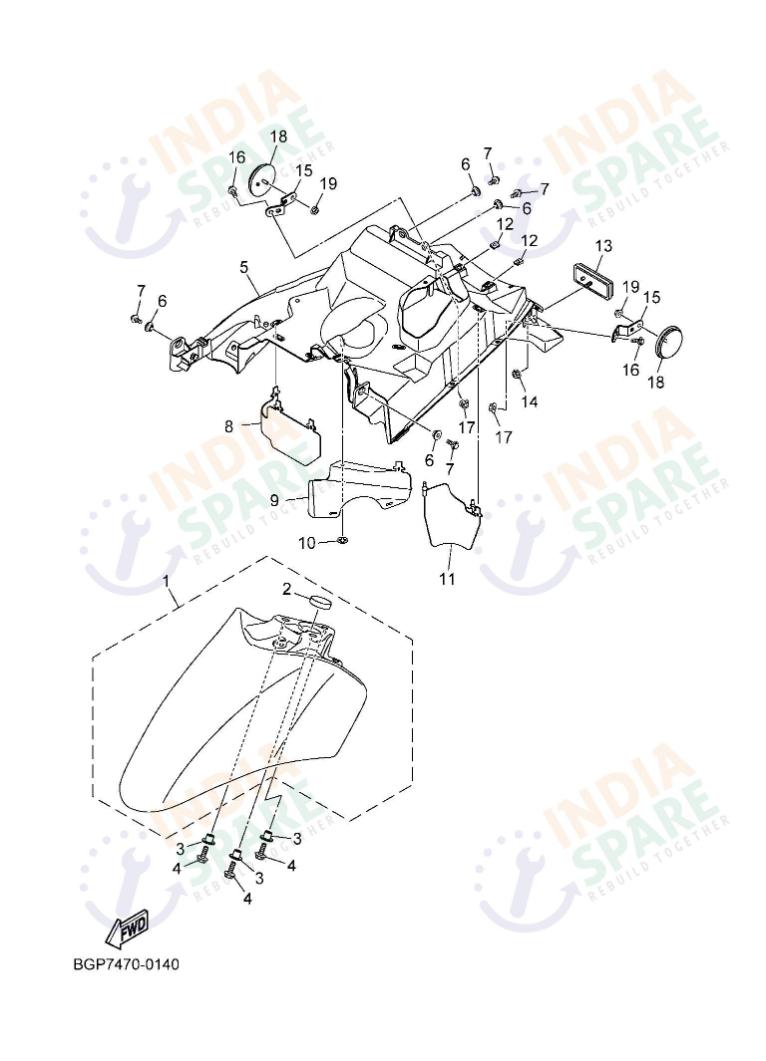

FENDER
BGP7
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | B7JXF15110PE | FENDER, FRONT | ₹ 1020 | 1 | FOR MLNM4 | |
| 1B | B7JXF15130P9 | FENDER, FRONT | ₹ 1014 | 1 | FOR MBL2 | |
| 2 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 3 | 90387068U000 | COLLAR | ₹ 25 | 3 | ||
| 4 | 958170602000 | BOLT FLANGE | ₹ 31 | 3 | ||
| 5 | B7JF16110000 | FENDER REAR | ₹ 298 | 1 | ||
| 6 | 90387068S100 | COLLAR | ₹ 12 | 4 | ||
| 7 | 958120601400 | BOLT FLANGE | ₹ 5 | 4 | ||
| 8 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 9 | B7JF16910100 | FLAP | ₹ 32 | 1 | ||
| 10 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 11 | B7JF162J0100 | FLAP 4 | ₹ 23 | 1 | ||
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 13 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 14 | 957070550000 | NUT FLANGE | ₹ 1 | 1 | ||
| 15 | B7JF16410000 | BRACKET REFLECTOR | ₹ 15 | 2 | ||
| 16 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 17 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 18 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 19 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Keep your scooter clean and safe with the Yamaha Fascino Fender assembly. This kit features the Front Fender and Rear Fender, along with the Reflector Assy for improved visibility. It includes specialized Flap components and all necessary mounting hardware like Collars and Nut Flange. Genuine fenders are engineered for aerodynamic efficiency and impact resistance, ensuring they stay securely attached and functional throughout the life of your scooter.
