BGP7

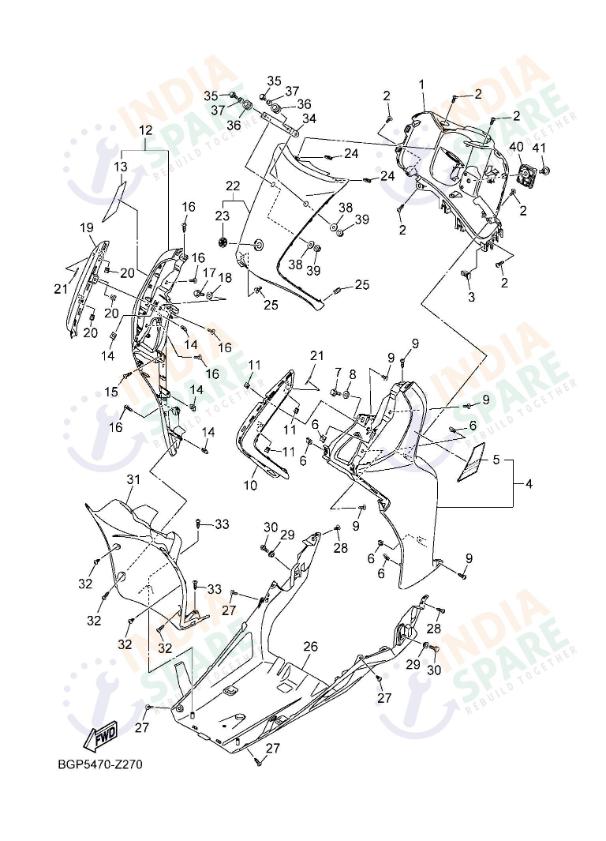

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGPF83110000 | LEG SHIELD 1 | ₹ 1060 | 1 | ||
| 2 | 977025001200 | SCREW TAPPING | ₹ 11 | 6 | ||
| 3 | 904640400500 | CLAMP | ₹ 6 | 1 | ||

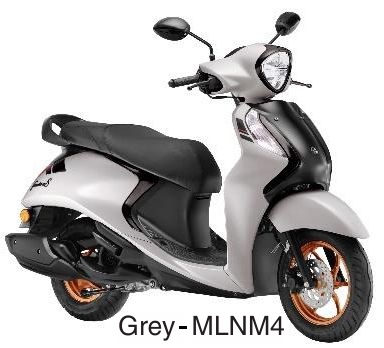

| 4A | B7JXF83600PF | B7JXF83600PF | ₹ 0 | 1 | FOR MLNM4 | |

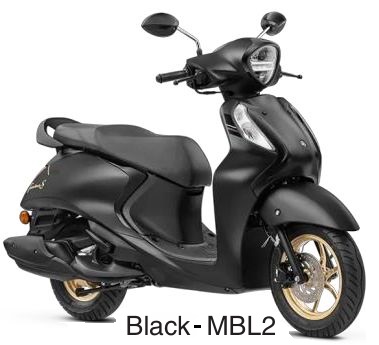

| 4B | B7JXF83600P8 | PANEL COMP 1 | ₹ 1087 | 1 | FOR MBL2 | |
| 5A | BGPF83913000 | BGPF83913000 | ₹ 0 | 1 | FOR MLNM4 | |
| 5B | BGPF83911000 | GRAPHIC 1 | ₹ 0 | 1 | FOR MBL2 | |
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 7 | 958120601600 | BOLT FLANGE | ₹ 3 | 1 | ||
| 8 | 90387068S100 | COLLAR | ₹ 12 | 1 | ||
| 9 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 10 | B7JF834610P0 | MOLE 2 SMX | ₹ 400 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 12A | B7JXF83G00PF | B7JXF83G00PF | ₹ 0 | 1 | FOR MLNM4 | |
| 12B | B7JXF83G00P8 | PANEL COMP 2 | ₹ 1087 | 1 | FOR MBL2 | |
| 13A | BGPF83923000 | BGPF83923000 | ₹ 0 | 1 | FOR MLNM4 | |
| 13B | BGPF83921000 | GRAPHIC 2 | ₹ 0 | 1 | FOR MBL2 | |
| 14 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 15 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 16 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 17 | 958120601600 | BOLT FLANGE | ₹ 3 | 1 | ||
| 18 | 90387068S100 | COLLAR | ₹ 12 | 1 | ||
| 19 | B7JF834710P0 | MOLE 3 SMX | ₹ 400 | 1 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 21 | B7JF45950000 | PROTECTOR SEAL | ₹ 2 | 2 | ||
| 22A | B7JXF83U00P9 | B7JXF83U00P9 | ₹ 0 | 1 | FOR MLNM4 | |
| 22B | B7JXF83U00P0 | MOLE SUB ASSY MBL2 | ₹ 645 | 1 | FOR MBL2 | |
| 23 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 24 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 25 | 904640701800 | CLAMP | ₹ 6 | 2 | ||
| 26 | B7JF83850000 | COVER, LOWER | ₹ 295 | 1 | ||
| 27 | 977025001200 | SCREW TAPPING | ₹ 11 | 4 | ||
| 28 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 29 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 30 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 31 | B7JF15520000 | FENDER, INNER | ₹ 672 | 1 | ||
| 32 | 977025001200 | SCREW TAPPING | ₹ 11 | 4 | ||
| 33 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 34 | B7JF34870000 | STAY, PLATE | ₹ 21 | 1 | ||
| 35 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 36 | 904801481900 | GROMMET | ₹ 8 | 2 | ||
| 37 | 90387066J900 | COLLAR | ₹ 7 | 2 | ||
| 38 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 39 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 40 | B7JF83790000 | HOOK | ₹ 81 | 1 | ||
| 41 | 90109068C800 | BOLT | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA BGP7 FASCINO 125 Series LEG SHIELD
