BGP7
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF172W0000 | COVER | ₹ 110 | 1 | ||
| 2 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 3A | B7JXF17100PF | B7JXF17100PF | ₹ 0 | 1 | FOR MLNM4 | |
| 3B | B7JXF17110P8 | SIDE COVER ASSY 1 | ₹ 1313 | 1 | FOR MBL2 | |
| 4A | BGPF173B0000 | EMBLEM 3D | ₹ 550 | 1 | FOR MLNM4 | |
| 4B | B7JF173B1000 | EMBLEM 3D | ₹ 508 | 1 | FOR MBL2 | |
| 5A | BGPF174G4000 | BGPF174G4000 | ₹ 0 | 1 | FOR MLNM4 | |
| 5B | BGPF174G2000 | GRAPHIC 3 | ₹ 175 | 1 | FOR MBL2 | |
| 6 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 7 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 8 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 10 | B7JF171L10P0 | MOLE SIDE COVER 1 SMX | ₹ 388 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 12A | B7JXF17210P8 | SIDE COVER ASSY 2 | ₹ 1313 | 1 | FOR MBL2 | |
| 12B | B7JXF17200PF | B7JXF17200PF | ₹ 0 | 1 | FOR MLNM4 | |
| 13A | BGPF173B0000 | EMBLEM 3D | ₹ 550 | 1 | FOR MLNM4 | |
| 13B | B7JF173B1000 | EMBLEM 3D | ₹ 508 | 1 | FOR MBL2 | |
| 14A | BGPF174H4000 | BGPF174H4000 | ₹ 0 | 1 | FOR MLNM4 | |
| 14B | BGPF174H2000 | GRAPHIC 4 | ₹ 175 | 1 | FOR MBL2 | |
| 15 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 16 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 17 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 19 | B7JF171M10P0 | MOLE SIDE COVER 2 SMX | ₹ 388 | 1 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 21A | B7JXF17300PA | B7JXF17300PA | ₹ 0 | 1 | FOR MLNM4 | |
| 21B | B7JXF17300P7 | COVER SIDE 3 | ₹ 444 | 1 | FOR MBL2 | |
| 22 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 23 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 24 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 25A | B7JH451600PF | B7JH451600PF | ₹ 0 | 1 | FOR MLNM4 | |
| 25B | B7JH451600P8 | COVER TAILLIGHT | ₹ 136 | 1 | FOR MBL2 | |
| 26 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 27 | 904640400500 | CLAMP | ₹ 6 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

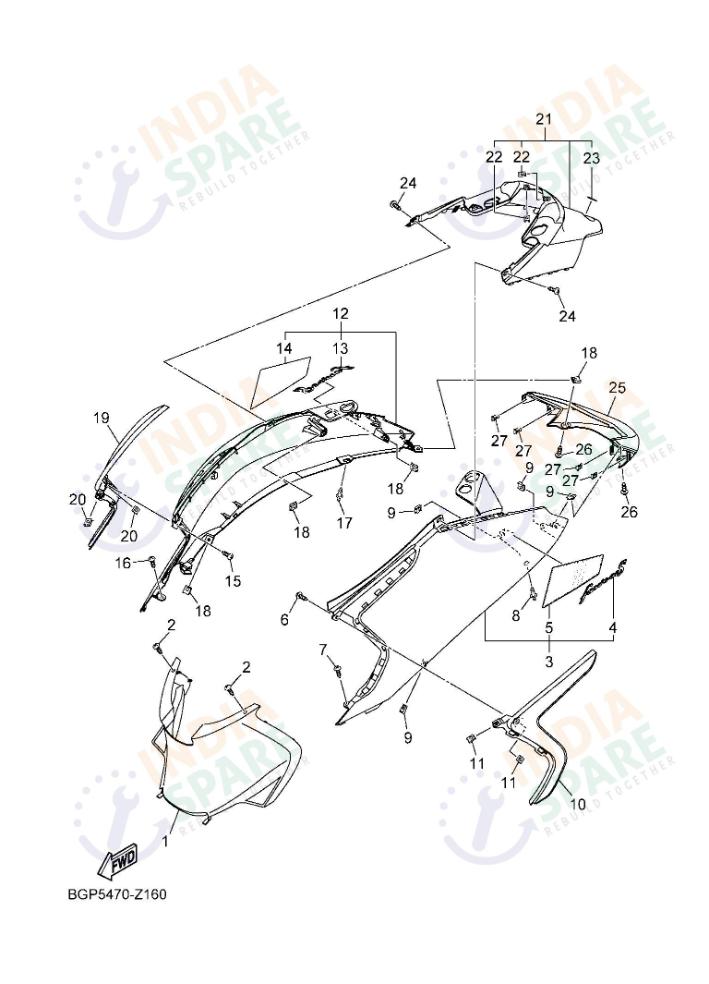

Description: - YAMAHA BGP7 FASCINO 125 Series SIDE COVER
