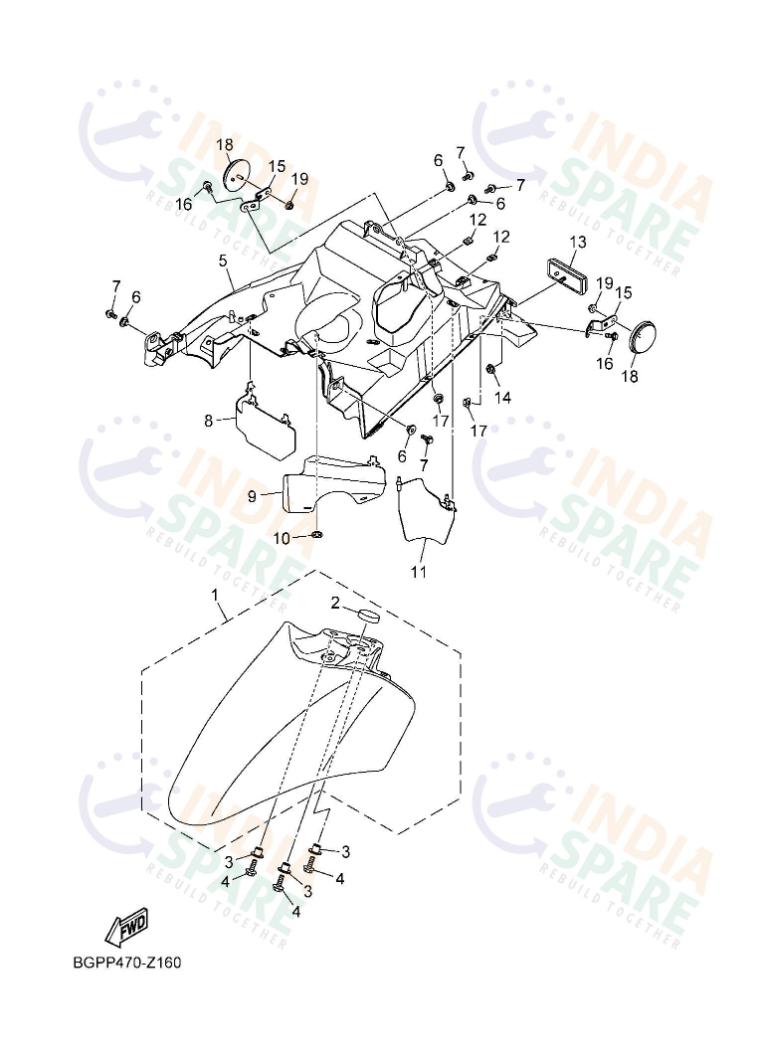

FENDER
BGP8
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | B7JXF15110PC | FENDER, FRONT | ₹ 1014 | 1 | FOR BWC1 | |
| 1B | B7JXF15160P5 | FENDER, FRONT | ₹ 1014 | 1 | FOR VRC1 | |
| 2 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 3 | 90387068U000 | COLLAR | ₹ 25 | 3 | ||
| 4 | 958170602000 | BOLT FLANGE | ₹ 31 | 3 | ||
| 5 | B7JF16110000 | FENDER REAR | ₹ 298 | 1 | ||
| 6 | 90387068S100 | COLLAR | ₹ 12 | 4 | ||
| 7 | 958120601400 | BOLT FLANGE | ₹ 5 | 4 | ||
| 8 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 9 | B7JF16910100 | FLAP | ₹ 32 | 1 | ||
| 10 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 11 | B7JF162J0100 | FLAP 4 | ₹ 23 | 1 | ||
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 13 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 14 | 957070550000 | NUT FLANGE | ₹ 1 | 1 | ||
| 15 | B7JF16410000 | BRACKET REFLECTOR | ₹ 15 | 2 | ||
| 16 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 17 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 18 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 19 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your scooter from road debris with the Yamaha Fascino Fender assembly. This set includes both the Front Fender and Rear Fender, along with the essential Flap and Reflector Assy for added safety. To ensure a vibration-free fit, it comes with Collars, Flange Bolts, and Nut Springs. Genuine fenders are designed to withstand road impacts while maintaining their structural integrity, ensuring your scooter remains clean and compliant with safety regulations.
