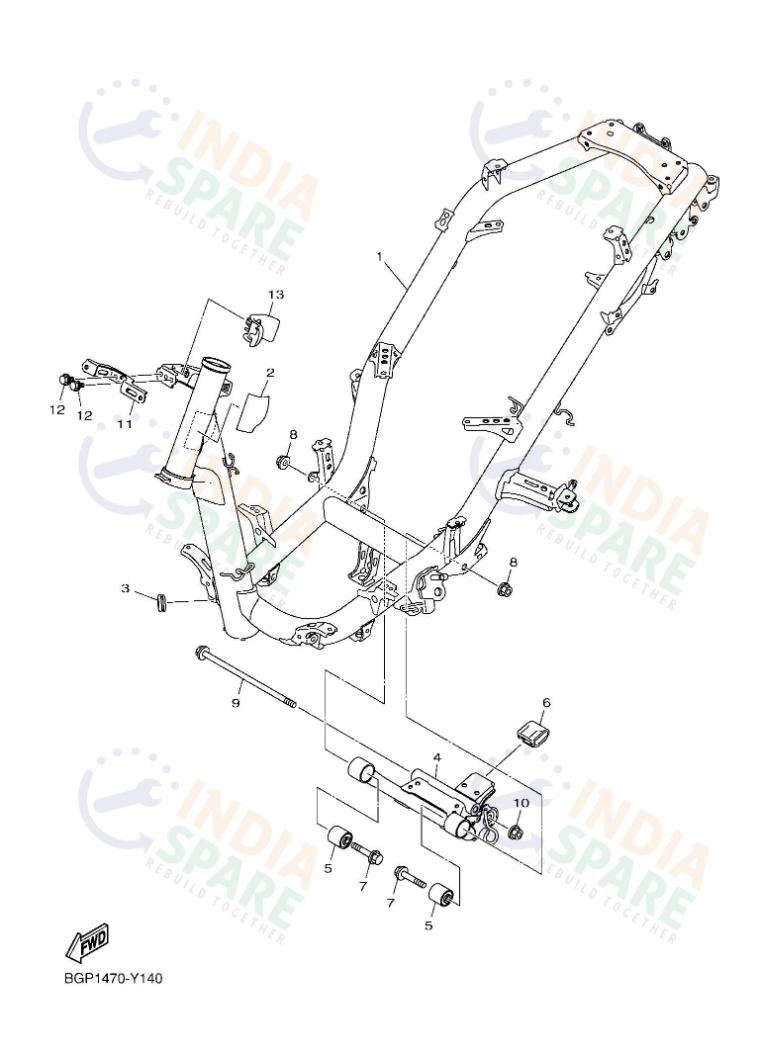

FRAME
BGP8
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGPF11100000 | FRAME COMP. | ₹ 6674 | 1 | ||
| 2 | 905200282900 | DAMPER PLATE | ₹ 18 | 1 | ||
| 3 | 904801223700 | GROMMET | ₹ 67 | 1 | ||
| 4 | B7JF14100000 | ENGINE BRACKET COMP. | ₹ 706 | 1 | ||
| 5 | 903881082100 | DAMPER | ₹ 80 | 2 | ||
| 6 | B7JF71140000 | STOPPER MAIN STAND | ₹ 22 | 1 | ||
| 7 | 90105108C300 | BOLT, FLANGE | ₹ 24 | 2 | ||
| 8 | 956021020000 | NUT U FLANGE | ₹ 32 | 2 | ||
| 9 | 90105108C400 | BOLT FLANGE | ₹ 100 | 1 | ||
| 10 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 11 | B7JF83560000 | STAY 1 | ₹ 129 | 1 | ||
| 12 | 958170601000 | BOLT FLANGE | ₹ 8 | 2 | ||
| 13 | B7JF834V0000 | PROTECTOR 1 | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Yamaha Fascino Frame assembly is the backbone of your vehicle's structural integrity. This assembly includes the main Frame Comp, Engine Bracket, and vital Dampers to isolate vibration. It comes equipped with high-strength Flange Bolts and Nut U Flange hardware to ensure all major components are securely anchored. Choosing a genuine frame ensures that all mounting points align perfectly with your engine and bodywork, maintaining the original safety ratings of your scooter.
