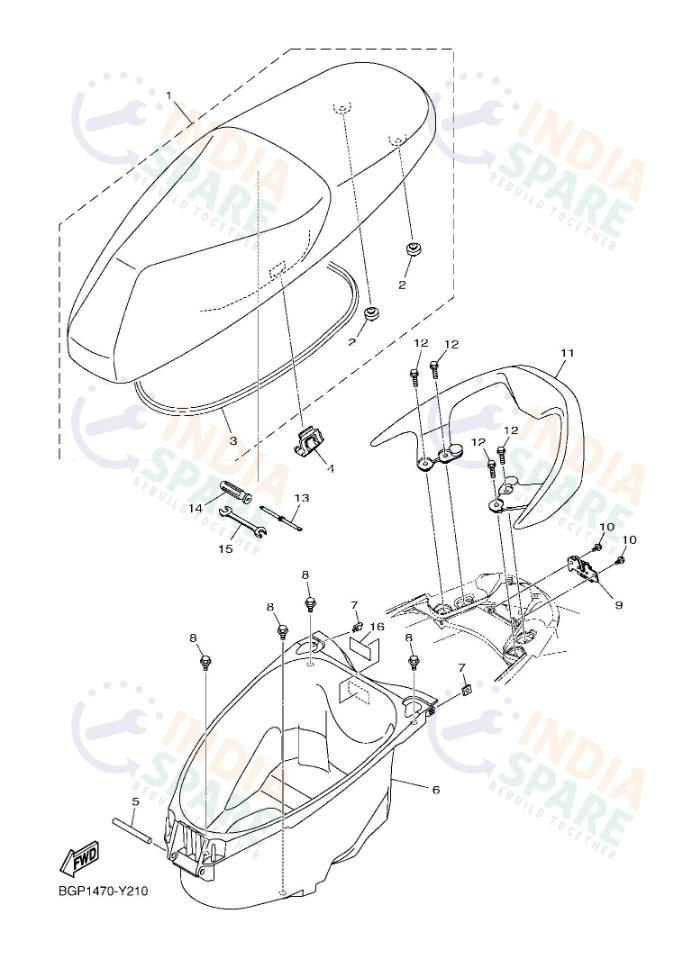

SEAT
BGP8
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BGPF47300000 | DOUBLE SEAT ASSY | ₹ 2433 | 1 | FOR BWC1 | |
| 1B | B7JF47302000 | DOUBLE SEAT ASSY | ₹ 2433 | 1 | FOR VRC1 | |
| 2 | 21CF47410000 | PAD SEAT | ₹ 14 | 2 | ||
| 3 | B7JF475M1000 | .SEAL | ₹ 0 | 1 | ||
| 4 | B7JF476A0000 | PLATE GUIDE 1 | ₹ 7 | 1 | ||
| 5 | B7JF47270000 | PIN SEAT FITTING | ₹ 13 | 1 | ||
| 6 | B7JF473R0100 | BOX 1 | ₹ 483 | 1 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 901090620200 | BOLT | ₹ 13 | 4 | ||
| 9 | B7JF47800000 | SEAT LOCK ASSY | ₹ 88 | 1 | ||
| 10 | 950220601000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 11A | B7JF47730135 | HANDLE SEAT | ₹ 1163 | 1 | FOR BWC1 | |
| 11B | B7JF477301P0 | HANDLE SEAT | ₹ 1163 | 1 | FOR VRC1 | |
| 12 | 975120652500 | BOLT WITH WASHER | ₹ 7 | 4 | ||
| 13 | 36LF81520000 | DRIVER PLUS MINUS | ₹ 11 | 1 | ||
| 14 | 36LF81511100 | GRIP DRIVER | ₹ 9 | 1 | ||
| 15 | 21CF81251000 | SPANNER 12-14 | ₹ 26 | 1 | ||
| 16 | B7JF16680000 | LABEL TIRE | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Experience premium comfort with the Yamaha Fascino Double Seat Assy. This genuine seating solution includes the Pad Seat for ergonomic support and a durable Seat Seal to protect internal storage. The assembly comes complete with the Seat Lock Assy, Handle Seat, and necessary hardware like the Pin Seat Fitting and Bolt Flange. Also included is a basic tool kit with a Driver and Spanner for minor roadside adjustments, ensuring you are always prepared.
