BGP8
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF172W0000 | COVER | ₹ 110 | 1 | ||
| 2 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 3A | B7JXF17100PE | SIDE COVER ASSY 1 | ₹ 1161 | 1 | FOR BWC1 | |
| 3B | B7JXF17100P5 | COVER SIDE 1 VRC1 | ₹ 1133 | 1 | FOR VRC1 | |
| 4 | 2SPF173B0000 | EMBLEM 3D | ₹ 464 | 1 | ||
| 5 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 7 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 8 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 9 | B7JF171L0000 | MOLE SIDE COVER 1 | ₹ 388 | 1 | ||
| 10 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 11A | B7JXF17200PE | SIDE COVER ASSY 2 | ₹ 1161 | 1 | FOR BWC1 | |
| 11B | B7JXF17200P5 | SIDE COVER ASSY 2 VRC1 | ₹ 1133 | 1 | FOR VRC1 | |
| 12 | 2SPF173B0000 | EMBLEM 3D | ₹ 464 | 1 | ||
| 13 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 14 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 15 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 16 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 17 | B7JF171M0000 | MOLE SIDE COVER 2 | ₹ 388 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 19A | B7JXF17300P9 | B7JXF17300P9 | ₹ 0 | 1 | FOR BWC1 | |
| 19B | B7JXF17300P3 | COVER SIDE 3 VRC1 | ₹ 444 | 1 | FOR VRC1 | |
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 21 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 22 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 23A | B7JH451600PE | COVER, TAILLIGHT | ₹ 207 | 1 | FOR BWC1 | |
| 23B | B7JH451600P5 | COVER TAILLIGHT VRC1 | ₹ 136 | 1 | FOR VRC1 | |
| 24 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 25 | 904640400500 | CLAMP | ₹ 6 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

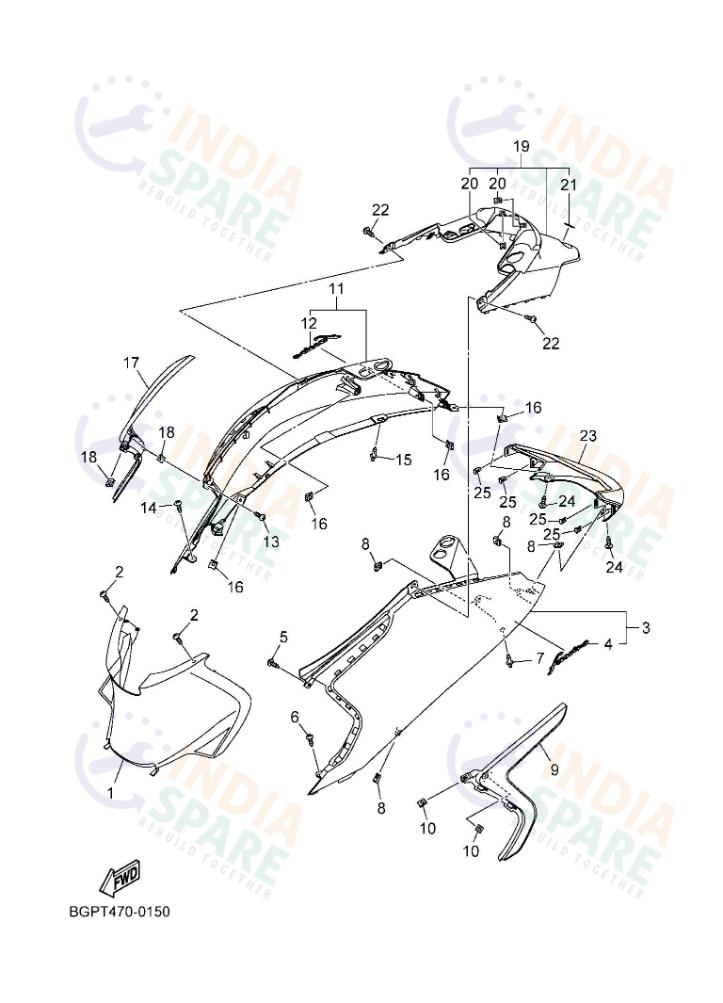

Description: - YAMAHA BGP8 FASCINO 125 Series SIDE COVER
