FENDER
0
BGPR
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

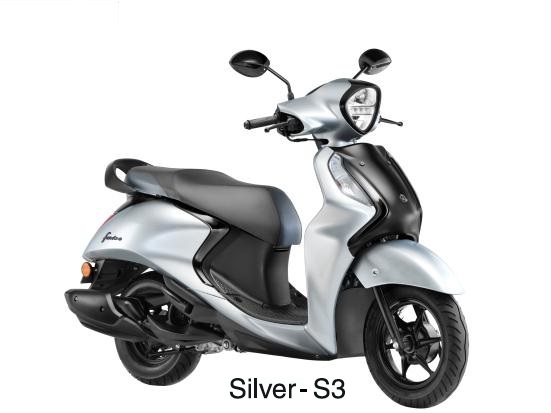

| 1A | B7JXF15100PA | FENDER, FRONT | ₹ 2090 | 1 | FOR S3 | |

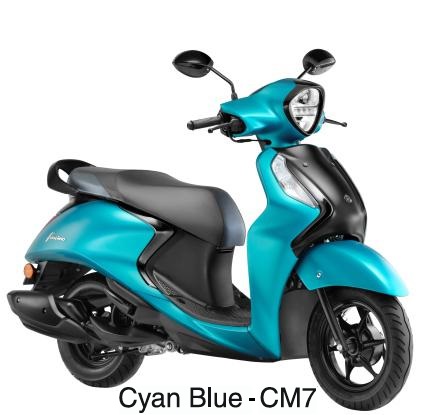

| 1B | B7JXF15100PB | FENDER, FRONT | ₹ 2090 | 1 | FOR CM7 | |

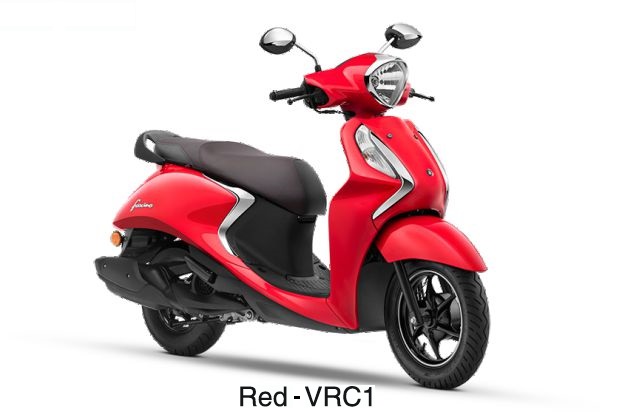

| 1C | B7JXF15140P5 | FENDER FRONT | ₹ 2340 | 1 | FOR VRC1 | |

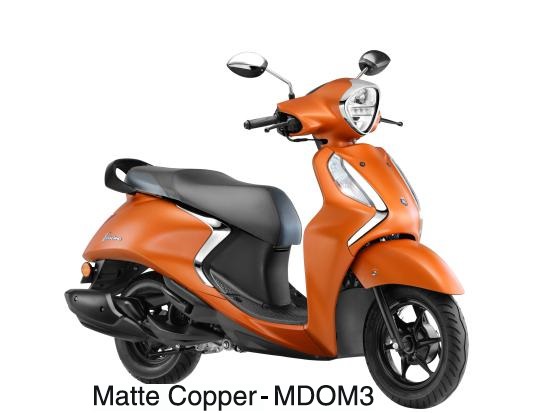

| 1D | B7JXF15100PC | FENDER, FRONT | ₹ 2090 | 1 | FOR MDOM3 | |

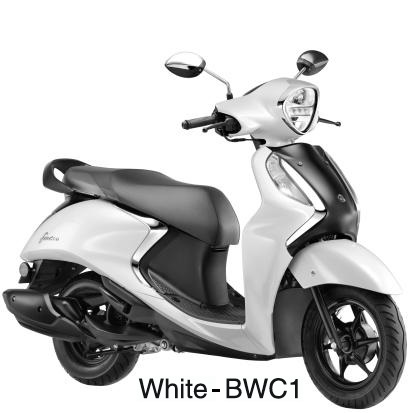

| 1E | B7JXF15100PE | FENDER, FRONT | ₹ 2090 | 1 | FOR BWC1 | |
| 2 | 901110685600 | BOLT,HEX. SOCKET BUTTON | ₹ 8 | 2 | ||
| 3 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 4 | B7JF15530000 | FENDER, INNER 2 | ₹ 60 | 1 | ||
| 5 | 90387068S100 | COLLAR | ₹ 14 | 2 | ||
| 6 | 958120601600 | BOLT FLANGE | ₹ 3 | 3 | ||
| 7 | B7JF16110000 | FENDER, REAR | ₹ 324 | 1 | ||
| 8 | 90387068S100 | COLLAR | ₹ 14 | 4 | ||
| 9 | 958120601400 | BOLT, FLANGE | ₹ 5 | 4 | ||
| 10 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 11 | B7JF16910100 | FLAP | ₹ 35 | 1 | ||
| 12 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 13 | B7JF162J0100 | FLAP 4 | ₹ 25 | 1 | ||
| 14 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 15 | 5USH51100100 | REFLECTOR ASSY | ₹ 16 | 1 | ||
| 16 | 957070550000 | NUT FLANGE | ₹ 1 | 1 | ||
| 17 | B7JF16410000 | BRACKET, REFLECTOR | ₹ 17 | 2 | ||
| 18 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 19 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 20 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 26 | 2 | ||
| 21 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA BGPR FASCINO 125 DRUM Series FENDER
