FRONT WHEEL
BJE3/BFH3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

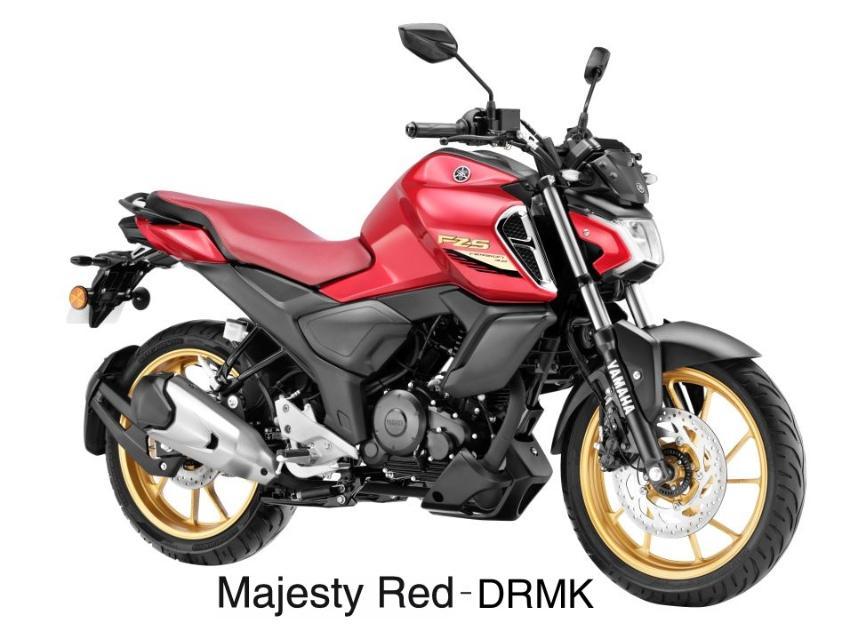

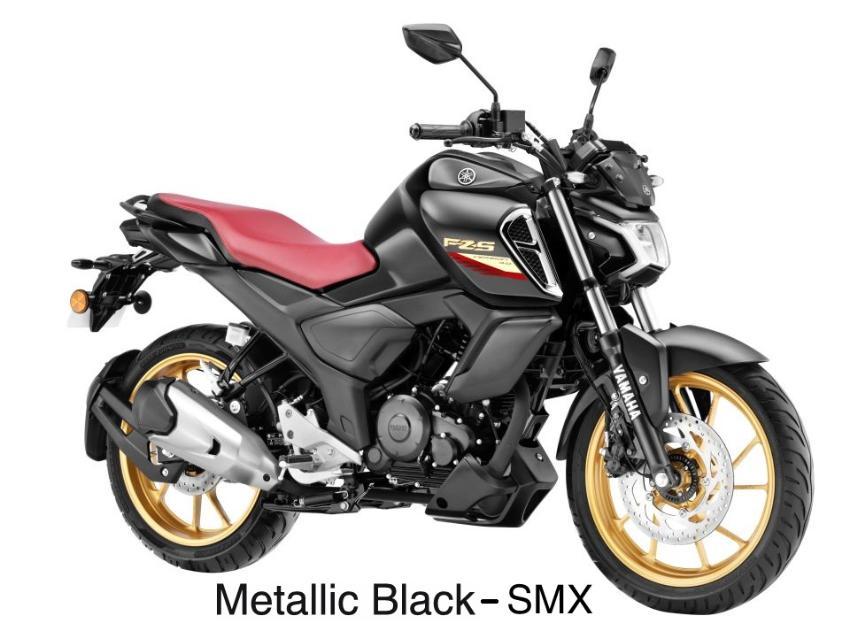

| 1A | B9EF5168018L | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR SMX,DRMK | |

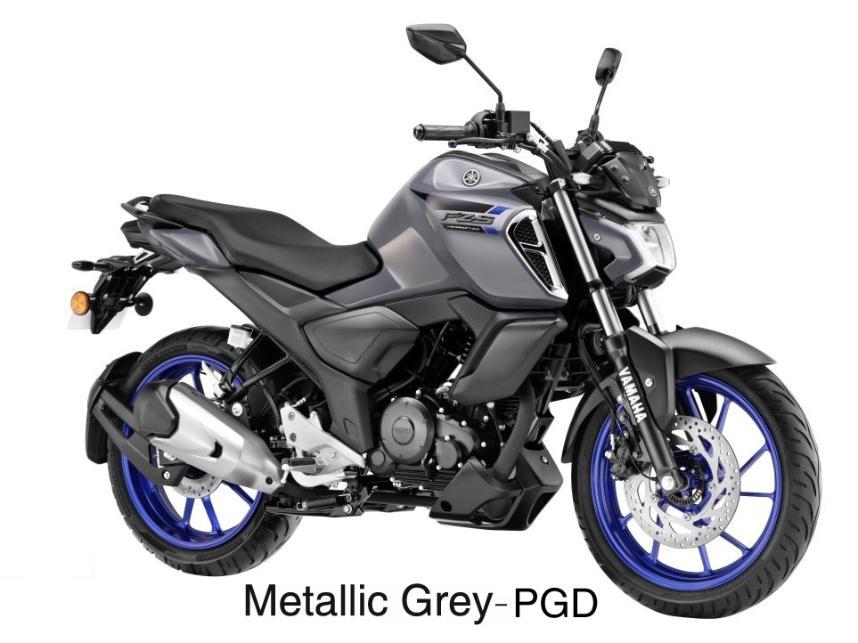

| 1B | B9EF516801P0 | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR PGD | |
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5 | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 12 | 929071420000 | WASHER | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - the steering precision of the Yamaha FZS V4 begins at the front wheel assembly, where the interaction with the road is most direct. this system features a lightweight cast wheel front engineered for structural rigidity plus aerodynamic efficiency. rotating on high quality internal bearings, the wheel provides a vibration free experience even at higher speeds on the highway. to protect the moving parts from environmental damage, the oil seal creates a robust barrier against the dust, water common on Indian streets. the axle wheel provides the necessary support; it anchors the entire setup to the forks with absolute stability. this assembly also integrates the rotor sensor to provide data for the advanced braking system. every collar plus washer is precision machined to ensure a perfect fitment. maintaining the balance, condition of the front wheel is essential for preserving the agile handling that this motorcycle is famous for; it translates every rider input into motion accurately.
