FRONT WHEEL
BJE5/BFH5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

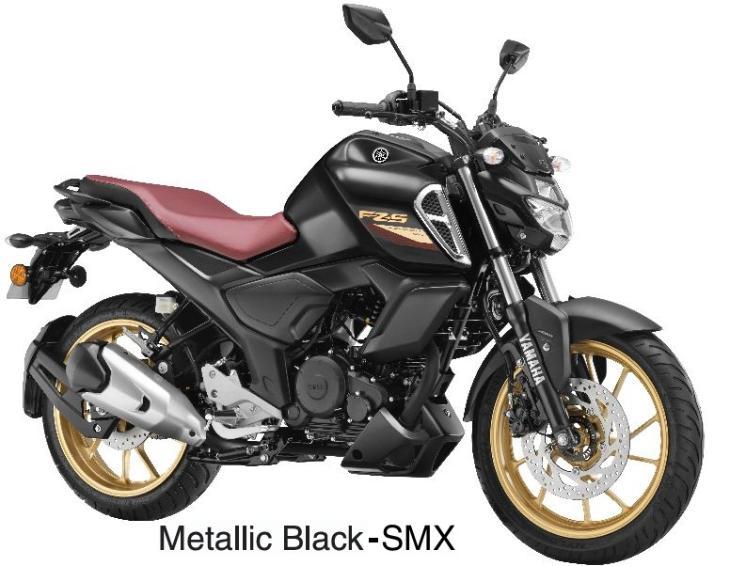

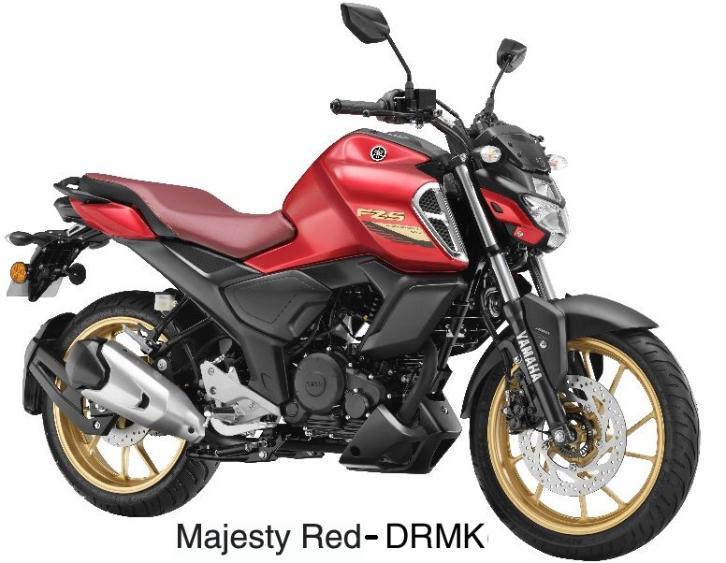

| 1A | B9EF5168018L | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR SMX,DRMK | |

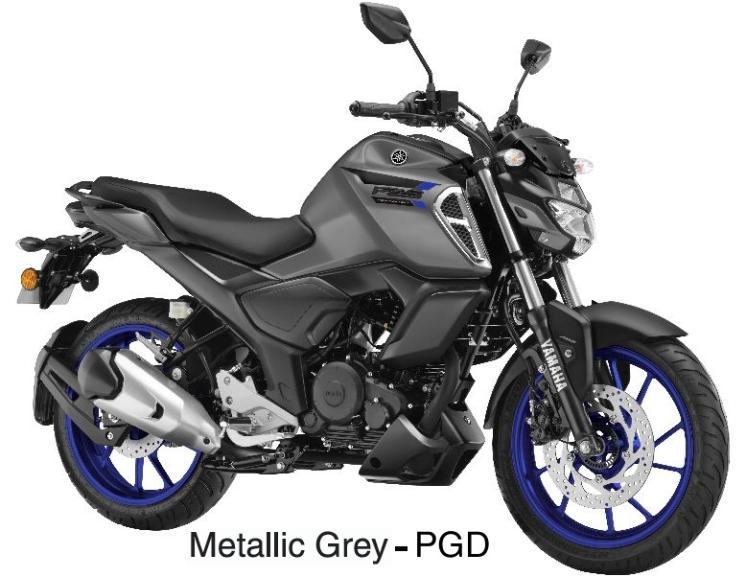

| 1B | B9EF516801P0 | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR PGD | |
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5A | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 5B | 941101782400 | TIRE | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 12 | 929071420000 | WASHER | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - the steering dynamics of the Yamaha FZS V3 begin at the point where the rubber meets the road. this assembly features a lightweight cast wheel front; it provides structural rigidity while minimizing unsprung weight for better suspension response. rotating on high quality bearings, the setup ensures a vibration free experience at higher speeds. the axle wheel serves as the sturdy anchor; it secures the entire structure to the forks with absolute stability. for advanced safety, the rotor sensor tracks rotation data; this information is vital for the active braking systems to function correctly on unpredictable Indian surfaces. every collar plus washer is precision machined; they ensure a perfect fitment during installation. maintaining the balance of this wheel is essential for preserving the agile handling that this motorcycle is famous for; it translates every rider input into accurate direction changes while cruising through busy urban traffic or open highways.
