FRONT WHEEL
BKH1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

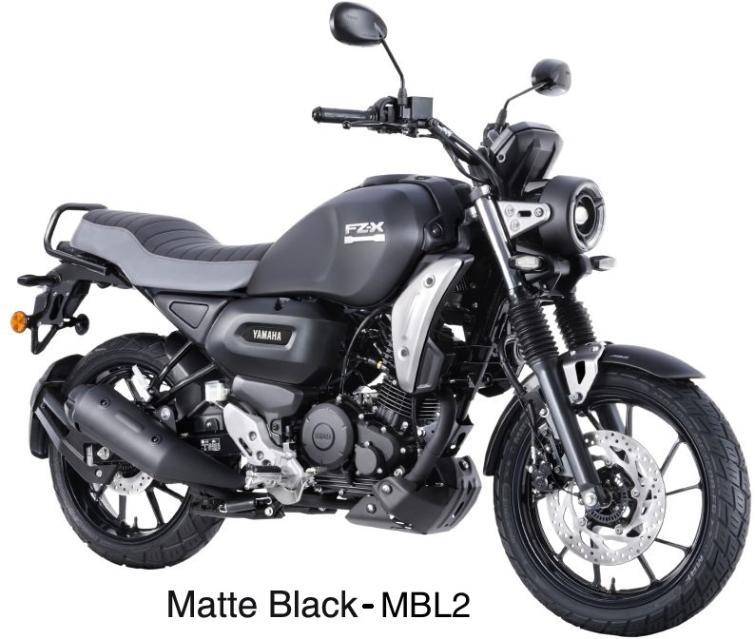

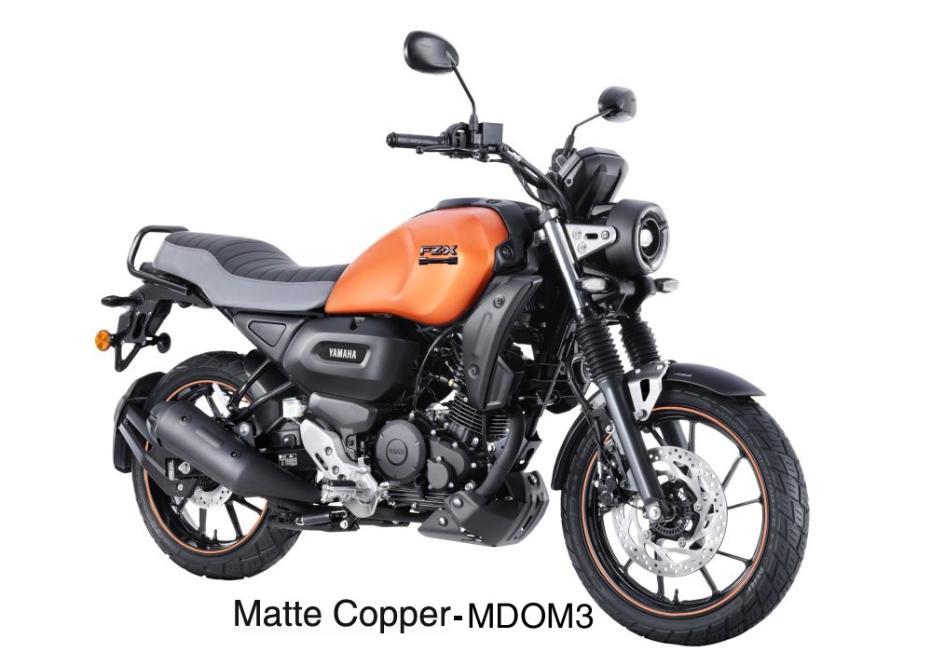

| 1A | B9EF51680133 | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR MBL2,MDOM3 | |

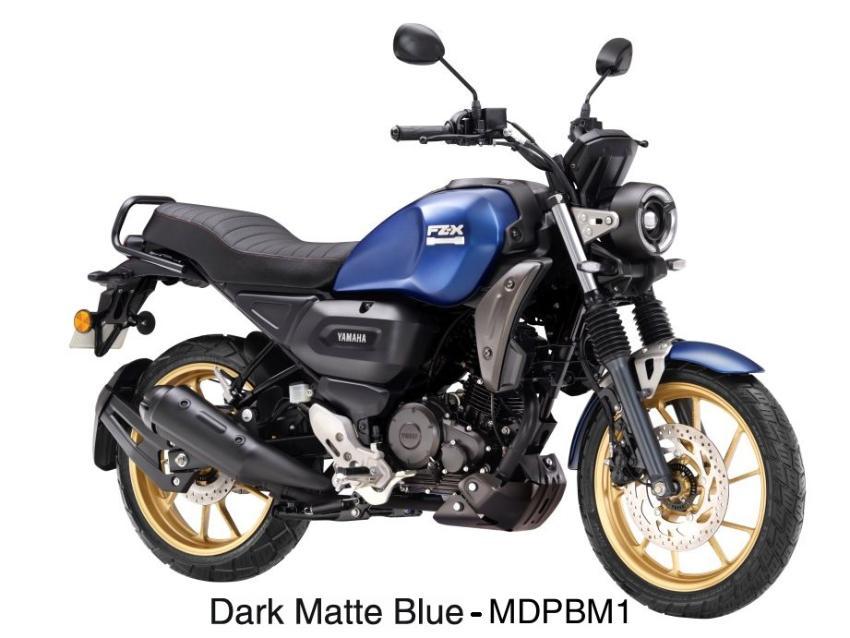

| 1B | B9EF5168018L | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR MDPBM1 | |
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5 | 941101783000 | TIRE (100/80-17 M/C 52P) | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 12 | 929071420000 | WASHER | ₹ 8 | 1 | ||
| 13 | BCLF51880000 | CAP | ₹ 9 | 1 | ||
| 14 | BCLF531B0000 | EMBLEM WHEEL | ₹ 25 | 2 | FOR MDOM3 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Precise steering plus stability on your Yamaha FZX start with the engineering excellence of the Front Wheel assembly. This setup features the lightweight plus strong Cast Wheel Front, designed to offer superior handling plus aesthetic appeal. The assembly includes high quality Bearings plus an Oil Seal to ensure smooth rotation plus protection from environmental contaminants. The Axle Wheel plus Nut Self Locking provide a secure connection to the front forks, while the Washer plus Cap finish the assembly with professional precision. A high traction Tire ensures maximum grip during cornering plus braking on varied road surfaces. The integrated Rotor Sensor plus Screw setup provide vital speed data to the motorcycle computer, ensuring all safety systems function correctly. Whether you are navigating narrow city lanes or high speed expressways, this front wheel assembly provides the reliability plus performance needed for a superior riding experience.
