FRONT WHEEL

BKJ1

YAMAHA BKJ1 MT15 V2 Series FRONT WHEEL
Fullscreen
YAMAHA BKJ1 MT15 V2 Series FRONT WHEEL YAMAHA BKJ1 MT15 V2 Series FRONT WHEEL YAMAHA BKJ1 MT15 V2 Series FRONT WHEEL YAMAHA BKJ1 MT15 V2 Series FRONT WHEEL YAMAHA BKJ1 MT15 V2 Series FRONT WHEEL
Ref No Part No Part Name Rate Qnty Order Remarks

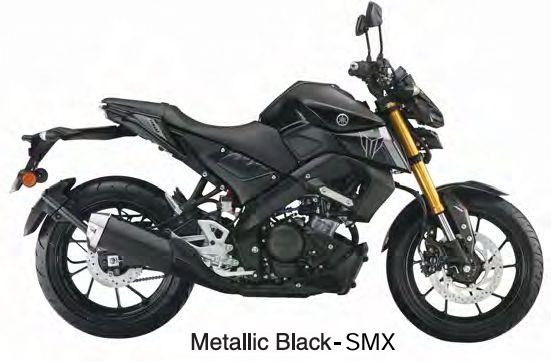

1A B9EF51680133 CAST WHEEL FRONT ₹ 5019 1 FOR SMX

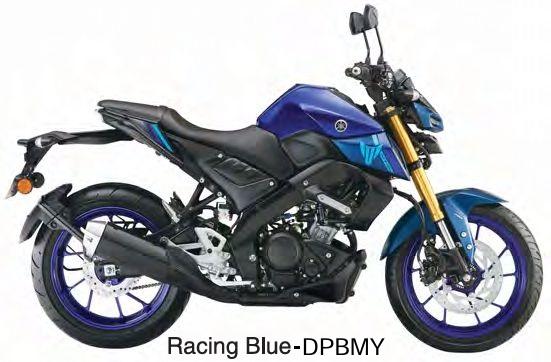

1B B9EF516801P0 CAST WHEEL FRONT ₹ 5019 1 FOR DPBMY

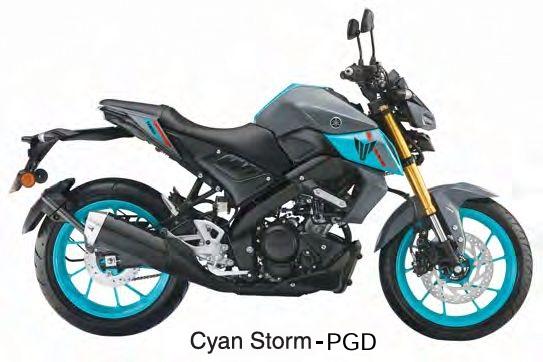

1C B9EF516801P3 CAST WHEEL FRONT ₹ 5019 1 FOR PGD

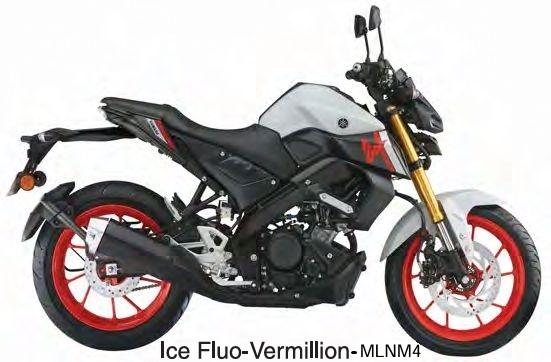

1D B9EF516801P1 CAST WHEEL FRONT ₹ 5019 1 FOR MLNM4
2 21CF510C1000 COLLAR ASSY. ₹ 27 1
3 931062280800 OIL SEAL ₹ 9 2
4 93306202XT00 BEARING ( USE IN REAR WHEEL H ₹ 185 2
5 941101781800 TIRE FRONT ( 100/80-17 ) MRF ₹ 1751 1
6 939000082400 VALVE RIM ₹ 19 1
7 B9EF517G0000 ROTOR SENSOR ₹ 107 1
8 901490503000 SCREW ₹ 21 3
9 1CKF51860000 COLLAR WHEEL ₹ 23 2
10 21CF51810000 AXLE WHEEL ₹ 152 1
11 956021420000 NUT U FLANGE ₹ 32 1


Color Legend:

  • Red: Canceled part - unavailable for any operations.
  • Blue: Part of a kit - cannot be ordered individually.
  • Gray (Dimmed): Disabled part - non-interactive for various reasons.
  • Part Number : Superseded part - replaced by a newer part.

Description: - The agility and steering precision of the Yamaha MT15 V2 begin with the front wheel components, designed for lightweight strength and durability. This collection features the Front Cast Wheel, engineered to provide a perfect balance between rigidity and weight for sharp handling and responsive feedback. Included in this catalog are the Wheel Axle and the high quality Bearings, which ensure low friction rotation and long term reliability on all road surfaces. The Oil Seal and specialized Collar Wheel protect the internal parts from dust and moisture, maintaining the smooth performance of the front end over time. Every Nut U Flange and Rotor Sensor is manufactured to precise factory specifications, ensuring that your wheel remains perfectly balanced and your electronic systems receive accurate data. By choosing genuine Yamaha front wheel parts, you preserve the flickable nature of your motorcycle, ensuring every turn is executed with confidence and every ride remains smooth.
