BKXC
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF15680000 | LABEL WARNING | ₹ 6 | 1 | ||
| 2 | B2UF83110000 | LEG SHIELD 1 | ₹ 414 | 1 | ||
| 3 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 8 | ||
| 5 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 6 | 904801339800 | GROMMET | ₹ 10 | 2 | ||
| 7 | 904801382300 | GROMMET | ₹ 20 | 2 | ||
| 8 | 90387068U700 | COLLAR | ₹ 23 | 2 | ||
| 9 | 958220602000 | BOLT FLANGE | ₹ 5 | 2 | ||

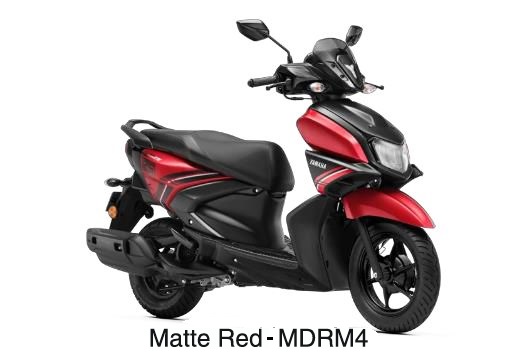

| 10A | B2UF835U00P3 | PANEL 1 | ₹ 654 | 1 | FOR MDRM4 | |
| 10B | B2UF835U00P1 | PANEL 1 | ₹ 654 | 1 | FOR SMX | |

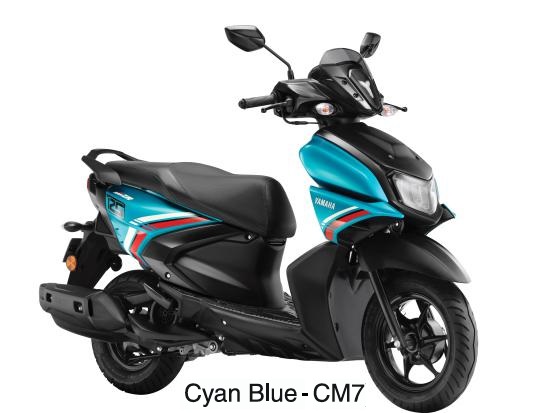

| 10C | B2UF835U00PC | PANEL 1 | ₹ 654 | 1 | FOR CM7 | |
| 11 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 2 | ||
| 12A | B2UF835V00P3 | PANEL 2 | ₹ 654 | 1 | FOR MDRM4 | |
| 12B | B2UF835V00P1 | PANEL 2 | ₹ 654 | 1 | FOR SMX | |
| 12C | B2UF835V00PC | PANEL 2 | ₹ 654 | 1 | FOR CM7 | |
| 13 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 1 | ||
| 14A | B2UF839R00P0 | PANEL ACCESSORY | ₹ 461 | 1 | FOR MDRM4 | |
| 14B | B2UF839R00P0 | PANEL ACCESSORY | ₹ 461 | 1 | FOR SMX,CM7 | |
| 15 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 16 | B2UF83120000 | LEG SHIELD 2 | ₹ 414 | 1 | ||
| 17 | 977025001600 | SCREW TAPPING | ₹ 10 | 8 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 8 | ||
| 19 | 90183050A700 | NUT SPRING | ₹ 22 | 3 | ||
| 20 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 21 | 904801339800 | GROMMET | ₹ 10 | 2 | ||
| 22A | B2UXF8AB20P0 | PLATE 1 SUB ASSY | ₹ 239 | 1 | FOR MDRM4 | |
| 22B | B2UXF8AB20P2 | PLATE 1 SUB ASSY | ₹ 239 | 1 | FOR SMX | |
| 22C | B2UXF8AB00P4 | PLATE,1 SUB ASSY | ₹ 354 | 1 | FOR CM7 | |
| 23A | BKXF83911000 | GRAPHIC 1 | ₹ 65 | 1 | FOR SMX | |
| 23B | BKXF83917000 | GRAPHIC 1 | ₹ 75 | 1 | FOR CM7 | |
| 23C | BKXF83910000 | GRAPHIC 1 | ₹ 65 | 1 | FOR MDRM4 | |
| 24 | B2UF83150000 | EMBLEM | ₹ 20 | 1 | ||
| 25 | 901830506700 | NUT SPRING | ₹ 8 | 2 | ||
| 26A | B2UXF8AC20P0 | PLATE 2 SUB ASSY | ₹ 239 | 1 | FOR MDRM4 | |
| 26B | B2UXF8AC20P2 | PLATE 2 SUB ASSY | ₹ 239 | 1 | FOR SMX | |
| 26C | B2UXF8AC00P4 | PLATE,2 SUB ASSY | ₹ 354 | 1 | FOR CM7 | |
| 27A | BKXF83921000 | GRAPHIC 2 | ₹ 65 | 1 | FOR SMX | |
| 27B | BKXF83927000 | GRAPHIC 2 | ₹ 75 | 1 | FOR CM7 | |
| 27C | BKXF83920000 | GRAPHIC 2 | ₹ 65 | 1 | FOR MDRM4 | |
| 28 | B2UF83150000 | EMBLEM | ₹ 20 | 1 | ||
| 29 | 901830506700 | NUT SPRING | ₹ 8 | 2 | ||
| 30 | B2UF83850100 | COVER UNDER | ₹ 295 | 1 | ||
| 31 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 32 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 33 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 34 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 35 | B2UF15520000 | FENDER INNER | ₹ 295 | 1 | ||
| 36 | 977025001200 | SCREW TAPPING | ₹ 11 | 8 | ||
| 37 | B2UF34870000 | STAY PLATE | ₹ 32 | 1 | ||
| 38 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 39 | 904801481900 | GROMMET | ₹ 8 | 2 | ||
| 40 | 90387066J900 | COLLAR | ₹ 7 | 2 | ||
| 41 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 42 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 43 | B7JF83790000 | HOOK | ₹ 81 | 1 | ||
| 44 | 90109068C800 | BOLT | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Leg Shield of the Yamaha RayZR is more than just a body panel; it is the aerodynamic armor that protects the rider and defines the scooters aggressive silhouette. This comprehensive catalog includes the LEG SHIELD 1, LEG SHIELD 2, and the FENDER INNER, all designed to deflect wind and debris. Style is personalized through various PANEL 1, PANEL 2, and PANEL ACCESSORY options, complemented by striking GRAPHIC 1, GRAPHIC 2, and the iconic EMBLEM. We provide every technical detail for a perfect fit, including the NUT SPRING, GROMMET, COLLAR, and BOLT HEX. SOCKET BUTTON. The PLATE 1 SUB ASSY and PLATE 2 SUB ASSY ensure structural rigidity, while the COVER UNDER protects the chassis. This level of detail provides buyers with the purchase confidence that their RayZR will look and feel brand new. Whether you are replacing a scuffed panel or refreshing your scooter’s look, these genuine Yamaha body parts guarantee a seamless alignment and the high-quality finish that makes the RayZR a standout on any street.
