BKXD

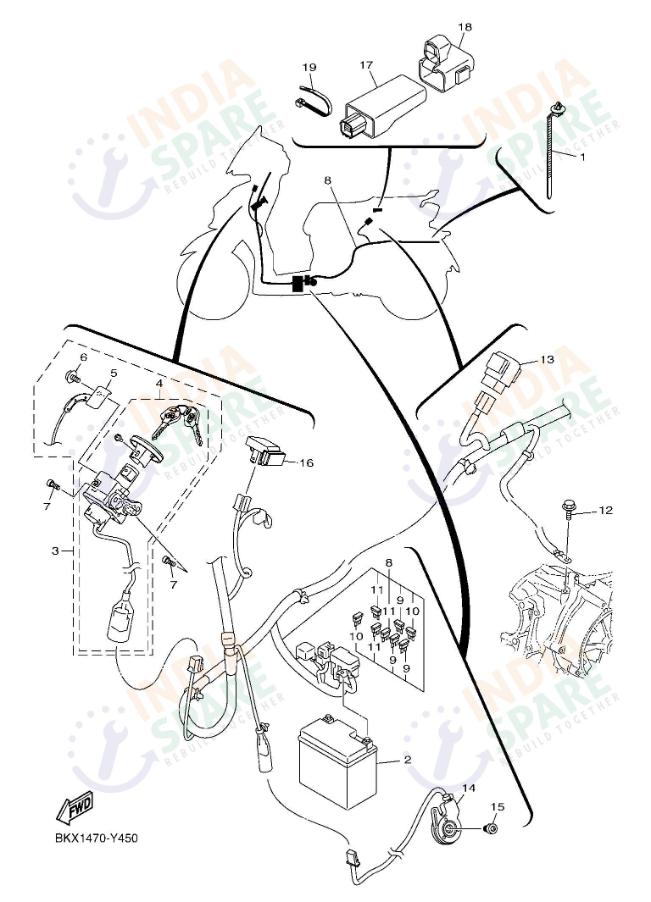

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 904643680100 | CLAMP | ₹ 20 | 3 | ||
| 2 | BGPH21000000 | BATTERY ASSY | ₹ 0 | 1 | ||
| 3 | B7JXH2521000 | MAIN SWITCH SUB AS | ₹ 935 | 1 | ||
| 4 | B7JH252E0000 | MAIN SWITCH COMP. | ₹ 804 | 1 | ||
| 5 | B2UF478E0000 | CABLE SEAT LOCK | ₹ 158 | 1 | ||
| 6 | 9760N0521200 | PAN HEAD SCREW | ₹ 5 | 1 | ||
| 7 | 913320601400 | BOLT | ₹ 3 | 2 | ||
| 8 | BKXH25903000 | WIRE HARNESS ASSY | ₹ 6300 | 1 | ||
| 9 | BEPH21510000 | FUSE | ₹ 8 | 3 | ||
| 10 | BKXH21512000 | FUSE | ₹ 20 | 2 | ||
| 11 | BEPH21518000 | FUSE | ₹ 29 | 3 | ||
| 12 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 13 | B44H19400000 | STARTER RELAY ASSY | ₹ 164 | 1 | ||
| 14 | B7JH25660000 | SWITCH SIDE STAND | ₹ 440 | 1 | ||
| 15 | 901100689300 | BOLT HEXAGON SOCKET HEAD | ₹ 10 | 1 | ||
| 16 | 5TSH33500100 | FLASHER RELAY | ₹ 160 | 1 | ||
| 17 | B6YH58101300 | COMMUNICATION CONT | ₹ 5440 | 1 | ||
| 18 | BGPH55460000 | BAND | ₹ 40 | 1 | ||
| 19 | 904645080000 | CLAMP | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Ensure your Yamaha RayZR starts with precision using the Electrical 2 assembly. This kit features the robust Starter Relay Assy and the sophisticated Main Switch Comp., paired with the Main Switch Sub As for total ignition security. Power distribution is managed by a high-grade Wire Harness (BKXH25903000) and three specialized Fuse units for electrical safety. To maintain a clean layout, we provide industrial-strength Clamp and Band hardware. Safety is prioritized with the Switch Side Stand, while signaling is managed by the Flasher Relay and the high-tech B6YH58101300 module. Every Bolt Flange and Bolt Hexagon Socket Head is included for a secure, factory-standard mount. For the storyteller who values technical clarity, these components offer the purchase confidence of a perfectly protected machine. Trust in the BGPH21000000 lead and Pan Head Screw sets to keep your electrical architecture in peak condition. Whether you are replacing a worn switch or a faulty relay, these genuine parts ensure your scooter is always ready for your next urban adventure.
