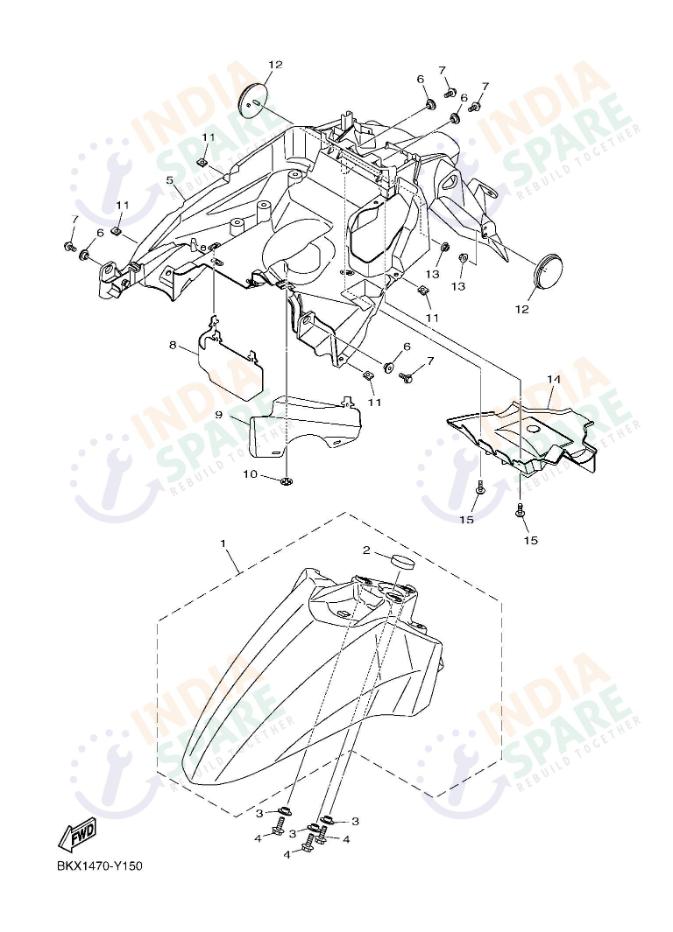

BKXD
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | B2UXF15100PB | FENDER, FRONT | ₹ 792 | 1 | FOR S8 | |
| 1B | B2UXF15120P1 | FENDER FRONT | ₹ 792 | 1 | FOR SMX | |
| 1C | B2UXF15120P0 | FENDER FRONT | ₹ 792 | 1 | FOR MDPBM1 | |
| 2 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 3 | 90387068T800 | COLLAR | ₹ 16 | 3 | ||
| 4 | 958120601600 | BOLT FLANGE | ₹ 3 | 3 | ||
| 5 | B2UF16110000 | FENDER REAR | ₹ 317 | 1 | ||
| 6 | 90387068S100 | COLLAR | ₹ 12 | 4 | ||
| 7 | 958120601400 | BOLT FLANGE | ₹ 5 | 4 | ||
| 8 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 9 | B7JF16910100 | FLAP | ₹ 32 | 1 | ||
| 10 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 12 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 13 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 14 | B2UF16510000 | COVER REAR FENDER | ₹ 42 | 1 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your Yamaha RayZR and enhance its aggressive look with the BKXD Fender assembly. This kit features the premium B2UXF15100PB Fender Front and secondary Fender Front options, providing excellent coverage against road debris. For the rear, we provide the Fender Rear and Fender 2, keeping road spray away from the engine and passenger. Technical integrity is maintained with the specialized Damper 1, Collar, and Bolt hardware. We’ve also included the Cover Rear Fender and various Nut Spring and Nut Self-Locking units for a secure installation. For safety and compliance, the kit includes the Reflector Front 1 and its Nut Flange. Aerodynamics and style are bolstered by the dual Flap components and specialized Plate hardware. These genuine parts offer the technical clarity of perfect fitment and the purchase confidence of knowing your machine is protected by high-impact resistant materials. Keep your machine looking new and functioning perfectly with these factory-original fender components and hardware, ensuring your story remains one of quality.
