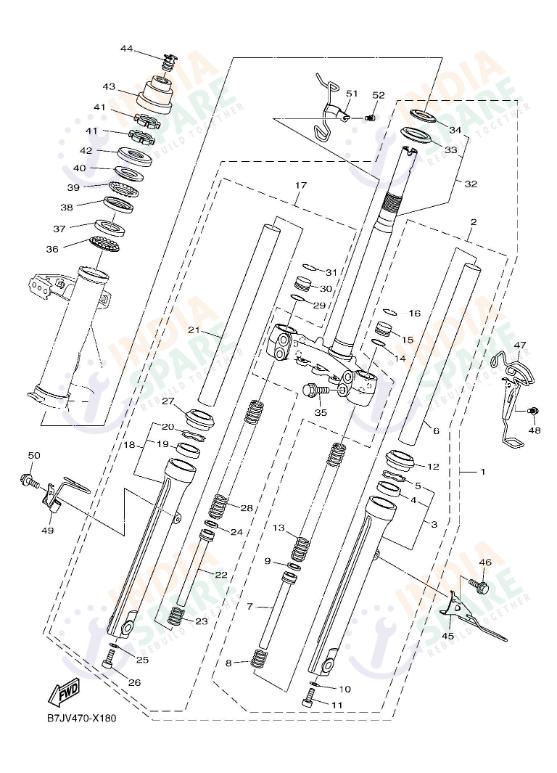

BKXD
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF31001000 | FRONT FORK ASSY | ₹ 6785 | 1 | ||
| 2 | B7JF31021000 | FRONT FORK ASSY (L.H) | ₹ 2919 | 1 | ||
| 3 | B7JF31771000 | TUBE OUTER 3 | ₹ 1445 | 1 | ||
| 4 | B7JF31450000 | OIL SEAL | ₹ 167 | 1 | ||
| 5 | B7JF31560000 | RING SNAP | ₹ 12 | 1 | ||
| 6 | B7JF31100000 | INNER TUBE COMP.1 | ₹ 1045 | 1 | ||
| 7 | B7JF31700000 | CYLINDER COMP. FRONT FORK | ₹ 110 | 1 | ||
| 8 | B7JF31520000 | SPRING SUB | ₹ 15 | 1 | ||
| 9 | B7JF31570000 | RING PISTON | ₹ 19 | 1 | ||
| 10 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 11 | 2FSF31810000 | BOLT, HEXAGON SOCKET HEAD | ₹ 25 | 1 | ||
| 12 | B7JF31440000 | SEAL DUST | ₹ 68 | 1 | ||
| 13 | B7JF31410000 | SPRING FRONT FORK | ₹ 90 | 1 | ||
| 14 | 2JGF31470000 | O-RING | ₹ 17 | 1 | ||
| 15 | B7JF31110000 | BOLT CAP | ₹ 46 | 1 | ||
| 16 | B7JF31530000 | RING SNAP | ₹ 13 | 1 | ||
| 17 | B7JF31031000 | FRONT FORK ASSY (R.H) | ₹ 2919 | 1 | ||
| 18 | B7JF31781000 | TUBE OUTER 4 | ₹ 1445 | 1 | ||
| 19 | B7JF31450000 | OIL SEAL | ₹ 167 | 1 | ||
| 20 | B7JF31560000 | RING SNAP | ₹ 12 | 1 | ||
| 21 | B7JF31100000 | INNER TUBE COMP.1 | ₹ 1045 | 1 | ||
| 22 | B7JF31700000 | CYLINDER COMP. FRONT FORK | ₹ 110 | 1 | ||
| 23 | B7JF31520000 | SPRING SUB | ₹ 15 | 1 | ||
| 24 | B7JF31570000 | RING PISTON | ₹ 19 | 1 | ||
| 25 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 26 | 2FSF31810000 | BOLT, HEXAGON SOCKET HEAD | ₹ 25 | 1 | ||
| 27 | B7JF31440000 | SEAL DUST | ₹ 68 | 1 | ||
| 28 | B7JF31410000 | SPRING FRONT FORK | ₹ 90 | 1 | ||
| 29 | 2JGF31470000 | O-RING | ₹ 17 | 1 | ||
| 30 | B7JF31110000 | BOLT CAP | ₹ 46 | 1 | ||
| 31 | B7JF31530000 | RING SNAP | ₹ 13 | 1 | ||
| 32 | B7JF33401000 | UNDER BRACKET COMP. | ₹ 3341 | 1 | ||
| 33 | B7JF34620000 | SEAL STEERING | ₹ 29 | 1 | ||
| 34 | 21CF34110000 | ..RACE, BALL 1 | ₹ 0 | 1 | ||
| 35 | 2FSF33460000 | BOLT 1 | ₹ 13 | 4 | ||
| 36 | 4LSF341E1000 | RETAINER, BALL BEARING | ₹ 0 | 1 | ||
| 37 | 21CF34120000 | RACE, BALL 2 | ₹ 0 | 1 | ||
| 38 | 21CF34140000 | RACE, BALL 4 | ₹ 0 | 1 | ||
| 39 | 4LSF341E0000 | RETAINER, BALL BEARING | ₹ 0 | 1 | ||
| 40 | 21CF34130000 | RACE, BALL 3 | ₹ 0 | 1 | ||
| 41 | 901792581200 | NUT | ₹ 30 | 2 | ||
| 42 | 1GCF34161000 | COVER BALL RACE 2 | ₹ 9 | 1 | ||
| 43 | B7JF34150100 | COVER BALL RACE 1 | ₹ 20 | 1 | ||
| 44 | B7JF312G0000 | PLUG | ₹ 10 | 1 | ||
| 45 | B7JF33171000 | HOLDER CABLE | ₹ 245 | 1 | ||
| 46 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 47 | B7JF38570000 | HOLDER | ₹ 101 | 1 | ||
| 48 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 49 | B7JF58750000 | HOLDER BRAKE HOSE 1 | ₹ 51 | 1 | ||
| 50 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 51 | B7JF58870000 | HOLDER BRAKE HOSE | ₹ 52 | 1 | ||
| 52 | 920120601000 | BOLT BUTTON HEAD | ₹ 14 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Restore your Yamaha RayZR’s superior handling with the BKXD Front Fork assembly, the pinnacle of suspension technology. This kit includes both the LH and RH Front Fork Assy, featuring the Tube Outer 3 and 4, and Inner Tube Comp.1. Internal damping is provided by the Cylinder Comp. Front Fork, Spring Sub, Ring Piston, and Spring Front Fork, all protected by high-grade Oil Seals, Ring Snap, and Seal Dust. For structural rigidity, we include the Under Bracket Comp. and Seal Steering, alongside the ..Race Ball 1 through 4 and RETAINER Ball Bearing sets. Protection is offered by the O-Ring and Bolt Cap. Connectivity is secured with the Holder Cable, Holder Brake Hose 1, and Bolt Flange hardware. Every Bolt 1 and specialized Bolt Button Head is included for a professional rebuild. This assembly provides the technical clarity of a responsive front end, giving you the purchase confidence to lean into every corner. As a storyteller, you know the ride quality defines the adventure; ensure yours is smooth and precise.
