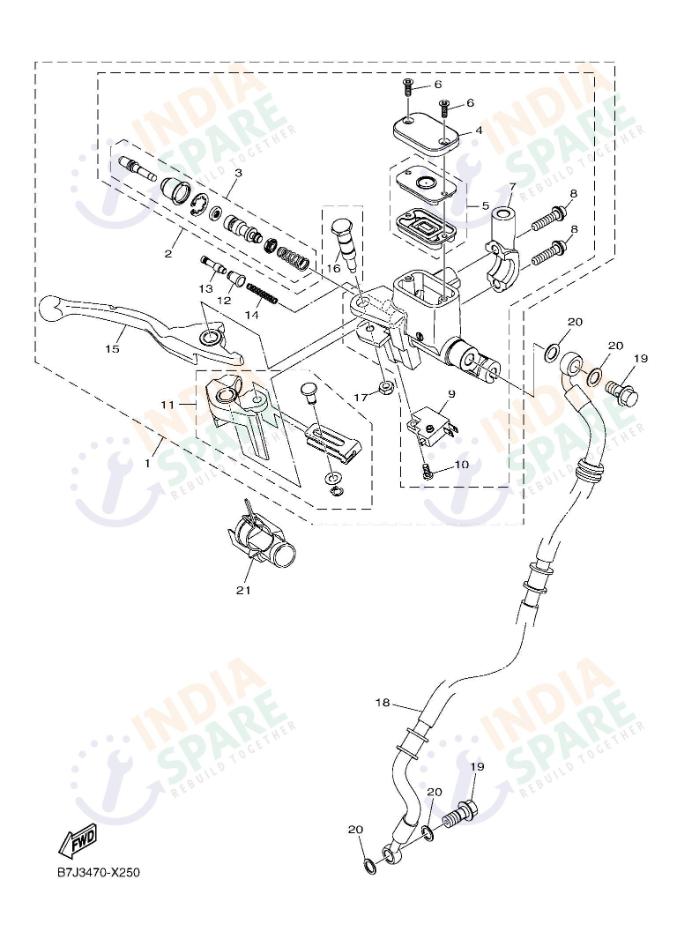

BKXD
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF583T0100 | MASTER CYLINDER ASSY | ₹ 1733 | 1 | ||
| 2 | B7JF580A0000 | MASTER CYLINDER SU | ₹ 1523 | 1 | ||
| 3 | B7JF58070000 | CYLINDER KIT MAST | ₹ 154 | 1 | ||
| 4 | B7JF58520000 | CAP RESERVOIR | ₹ 46 | 1 | ||
| 5 | B7JW004B0000 | DIAPHRAGM SEAL KIT | ₹ 34 | 1 | ||
| 6 | B7JF589H0000 | SCREW | ₹ 28 | 2 | ||
| 7 | B7JF58670000 | BRACKET MASTER CYLINDER | ₹ 93 | 1 | ||
| 8 | B7JF63320000 | BOLT 2 | ₹ 69 | 2 | ||
| 9 | B7JH39800000 | FRONT STOP SWITCH ASSY | ₹ 109 | 1 | ||
| 10 | B7JF585H0000 | SCREW SET | ₹ 12 | 1 | ||
| 11 | B7JW004A1000 | KNOCKER SET | ₹ 331 | 1 | ||
| 12 | B7JF583H0000 | BOOT | ₹ 21 | 1 | ||
| 13 | B7JF58610000 | PISTON | ₹ 19 | 1 | ||
| 14 | B7JF58650000 | SPRING SEAT | ₹ 10 | 1 | ||
| 15 | B7JH39220100 | LEVER 2 | ₹ 212 | 1 | ||
| 16 | B7JF589F0000 | BOLT LEVER | ₹ 62 | 1 | ||
| 17 | B7JF586F0000 | NUT COVER | ₹ 10 | 1 | ||
| 18 | BGPF58720000 | HOSE, BRAKE 1 | ₹ 921 | 1 | ||
| 19 | 904011082600 | BOLT UNION | ₹ 46 | 2 | ||
| 20 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 21 | B7JF585C0000 | COVER MASTER CYLIN | ₹ 16 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Experience ultimate braking control with the BKXD Front Master Cylinder assembly. This kit is the powerhouse of your machines stopping system, featuring the Master Cylinder Assy and its dedicated Cylinder Kit Mast for smooth, consistent hydraulic pressure. Reliability is prioritized via the Knocker Set, Piston, and Spring Seat, all protected by a genuine Boot and Cover Master Cylin. The system is complete with the Cap Reservoir, Diaphragm Seal Kit, and a high-durability BGPF58720000 brake line. For actuation, we provide the ergonomic Lever 2, Bolt Lever, and Nut Cover. Connectivity is managed through the Bolt Union and Washer Plain. The kit also features the Bracket Master Cylinder and Front Stop Switch Assy, secured by a specialized Screw Set. These parts offer the technical clarity of a perfectly bled system and the purchase confidence that only genuine Yamaha engineering can provide. For the storyteller who values precision stopping, this master cylinder kit is the essential choice for restoring factory-standard braking response and safety on every road.
