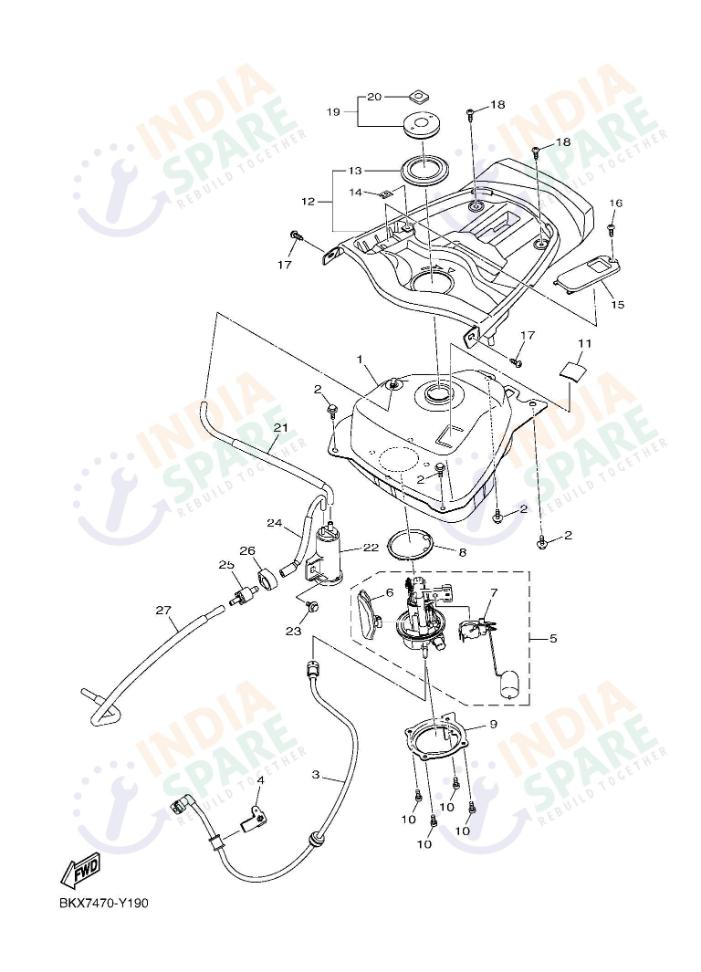

BKXD
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF41100000 | FUEL TANK COMP. | ₹ 1794 | 1 | ||
| 2 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 4 | ||
| 3 | B7JE39710000 | PIPE FUEL 1 | ₹ 729 | 1 | ||
| 4 | 904641580500 | CLAMP | ₹ 42 | 1 | ||
| 5 | B7JE39070100 | FUEL PUMP COMP. | ₹ 5162 | 1 | ||
| 6 | B7JE39150000 | FILTER | ₹ 211 | 1 | ||
| 7 | B7JH57520000 | SENDER UNIT ASSY FUEL METER | ₹ 703 | 1 | ||
| 8 | 2GSF414G0100 | SEAL | ₹ 160 | 1 | ||
| 9 | B7JF44910000 | BRACKET FUEL PUMP | ₹ 73 | 1 | ||
| 10 | 913320501000 | BOLT | ₹ 2 | 4 | ||
| 11 | 905200280600 | DAMPER PLATE | ₹ 8 | 1 | ||
| 12 | BKXXF41G0000 | COVER TANK | ₹ 161 | 1 | ||
| 13 | 2FSF414G0000 | SEAL | ₹ 10 | 1 | ||
| 14 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 15 | BGPH61630000 | COVER CONTROLLER | ₹ 18 | 1 | ||
| 16 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 17 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 18 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 19 | BGEXF4610000 | CAP SUB ASSY | ₹ 210 | 1 | ||
| 20 | BGPF817K0000 | LABEL FUEL | ₹ 10 | 1 | ||
| 21 | B7JF43130000 | PIPE 3 | ₹ 47 | 1 | ||
| 22 | B7JF41701000 | CANISTER ASSY | ₹ 153 | 1 | ||
| 23 | 901090620200 | BOLT | ₹ 13 | 1 | ||
| 24 | B7JF43140000 | PIPE 4 | ₹ 32 | 1 | ||
| 25 | B7JF44210100 | VALVE, CHECK | ₹ 115 | 1 | ||
| 26 | B7JF419A0000 | HOLDER | ₹ 11 | 1 | ||
| 27 | B7JF43210000 | PIPE 10 | ₹ 60 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Fuel your passion with the BKXD Fuel Tank assembly, the secure heart of your Yamaha RayZR’s range. This kit features the Fuel Tank Comp. and its dedicated Fuel Pump Comp. and Filter to ensure your engine receives clean fuel. Monitoring is simplified by the SENDER UNIT ASSY FUEL METER and its accompanying Seal. The system is designed for safety and environmental compliance, featuring the Roll Over Valve Assy, Canister Assy, and Check Valve. We include all necessary hardware, such as the Bolt With Washer, Clamp, and various Pipe 3 and Pipe 4 connectors. For a finished look, the kit features the Cap Sub Assy, Cover Tank, and Label Fuel. To isolate the electronics, we provide the specialized Cover Controller and various Nut Spring and Screw Tapping units. To isolate the tank, we provide the specialized Damper Plate and Holder Pipe 10 components. This fuel tank assembly offers the technical clarity of a perfectly pressurized system and the purchase confidence that only genuine Yamaha engineering can provide.
