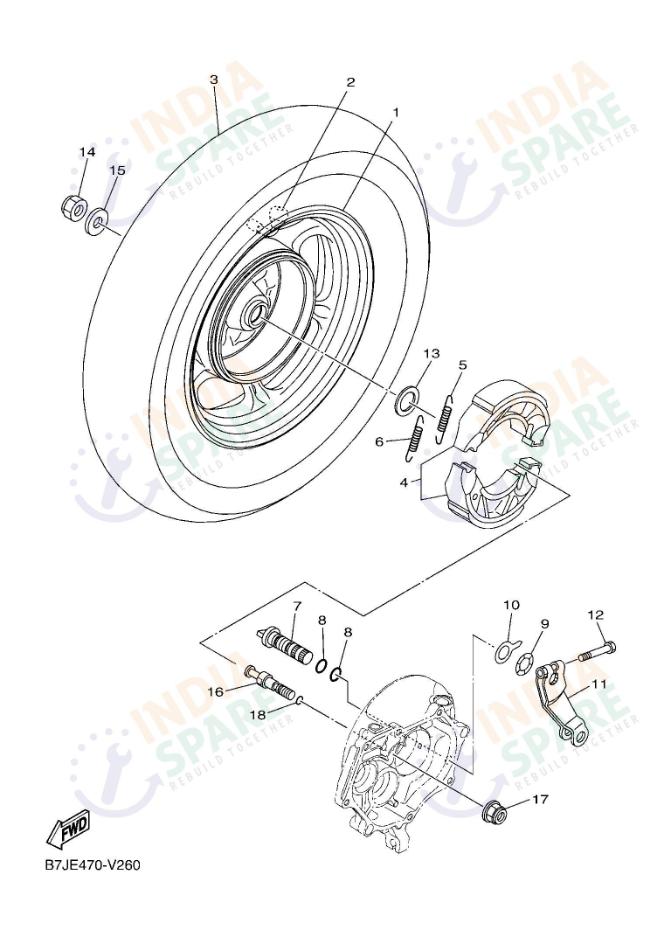

BKXD
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | B7JF53380233 | CAST WHEEL REAR | ₹ 3922 | 1 | FOR S8,SMX | |
| 1B | B7JF5338028L | CAST WHEEL, REAR | ₹ 3719 | 1 | FOR MDPBM1 | |
| 2 | 939000080800 | VALVE RIM | ₹ 38 | 1 | ||
| 3A | 941111080600 | TIRE | ₹ 2406 | 1 | ||
| 3B | 941111080500 | TIRE | ₹ 0 | 1 | ||
| 4 | 1GCF530K0000 | BRAKE SHOE SET | ₹ 271 | 1 | ||
| 5 | 905061200100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 6 | 905061500100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 7 | 1GCF53511000 | CAMSHAFT | ₹ 66 | 1 | ||
| 8 | 932101080100 | O-RING | ₹ 4 | 2 | ||
| 9 | 902061480200 | WASHER WAVE | ₹ 7 | 1 | ||
| 10 | 1GCF533A0000 | PLATE INDICATOR | ₹ 2 | 1 | ||
| 11 | B7JF53550000 | LEVER CAMSHAFT | ₹ 59 | 1 | ||
| 12 | 901010681400 | BOLT | ₹ 5 | 1 | ||
| 13 | 90201220J800 | WASHER PLATE | ₹ 9 | 1 | ||
| 14 | 901851680000 | NUT SELF-LOCKING | ₹ 52 | 1 | ||
| 15 | 902011681100 | WASHER PLATE | ₹ 22 | 1 | ||
| 16 | 1GCF53260000 | PIN PIVOT | ₹ 30 | 1 | ||
| 17 | 957021050000 | NUT, FLANGE | ₹ 4 | 1 | ||
| 18 | 932100780300 | O-RING | ₹ 4 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The BKXD Rear Wheel assembly is engineered to translate your Yamaha RayZR’s power into smooth, reliable motion. This kit features the high-strength Cast Wheel Rear (multiple options), a durable Tire, and a secure Valve Rim. Braking is managed by the high-friction Brake Shoe Set, supported by the Camshaft, Lever Camshaft, and Spring Tension (5YY) for consistent stopping power. Technical accuracy is maintained by the Plate Indicator and specialized O-Ring and Washer Wave units. The assembly is secured by the Pin Pivot, Nut Flange, and Nut Self-Locking, with the Washer Plate and Nut ensuring a smooth, grit-free hub. These parts offer the technical clarity of a perfectly balanced rear end and the purchase confidence needed for high-speed stability. Whether you are replacing a worn tire or a damaged rim, this genuine Yamaha wheel assembly ensures your scooter continues to deliver its signature performance. Ride with the confidence that every part is engineered to the highest standards for the ultimate street machine.
