BKXE
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

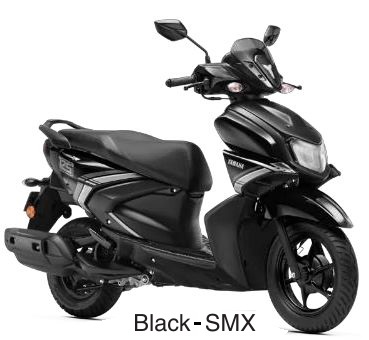

| 1A | B2UXF15120P1 | FENDER FRONT | ₹ 792 | 1 | FOR SMX | |

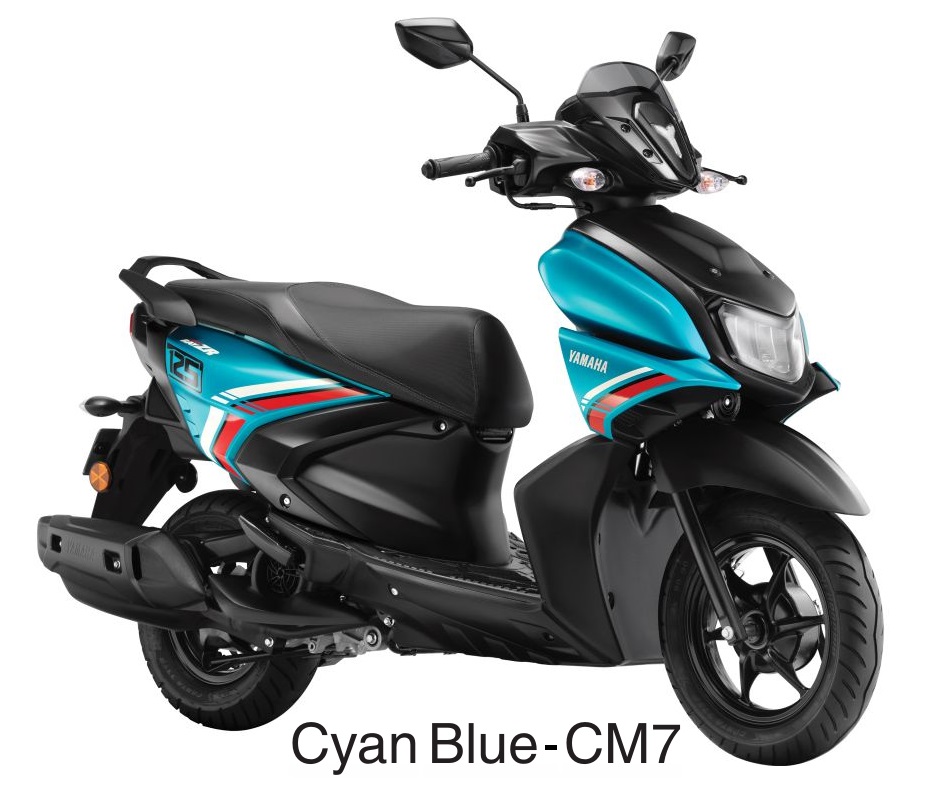

| 1B | B2UXF15120P4 | FENDER FRONT | ₹ 792 | 1 | FOR CM7 | |
| 2 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 3 | 90387068T800 | COLLAR | ₹ 16 | 3 | ||
| 4 | 958120601600 | BOLT FLANGE | ₹ 3 | 3 | ||
| 5 | B2UF16110000 | FENDER REAR | ₹ 317 | 1 | ||
| 6 | 90387068S100 | COLLAR | ₹ 12 | 4 | ||
| 7 | 958120601400 | BOLT FLANGE | ₹ 5 | 4 | ||
| 8 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 9 | B7JF16910100 | FLAP | ₹ 32 | 1 | ||
| 10 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 12 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 13 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 14 | B2UF16510000 | COVER REAR FENDER | ₹ 42 | 1 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your Yamaha RayZR and maintain its clean lines with the BKXE Fender assembly. This kit features the Fender Front and Fender Rear, provide excellent coverage against road spray and debris. Technical integrity is maintained with the specialized Damper 1, Collar, and Bolt Flange hardware. We’ve also included the Cover Rear Fender and various Nut Spring units for a secure installation. For safety and compliance, the kit includes the Reflector Front 1 and its Nut Flange. Aerodynamics and style are bolstered by the dual Flap components, secured with high-quality Screw Tapping units. These genuine parts offer the technical clarity of perfect fitment and the purchase confidence of knowing your machine is protected by high-impact resistant materials. Keep your machine looking new and functioning perfectly with these factory-original fender components. By choosing genuine Yamaha parts, you ensure your scooter’s story remains one of quality and durability through every splash and every mile of your journey, keeping the engine and bodywork clean.
