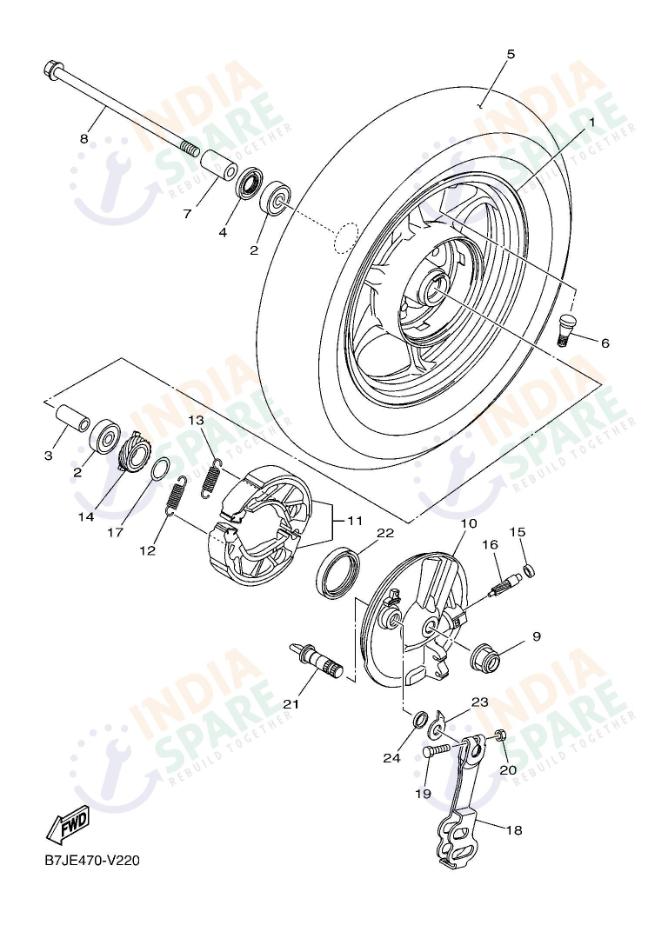

BKXE
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF51680233 | CAST WHEEL, FRONT | ₹ 3802 | 1 | ||
| 2 | 93306300YN00 | BEARING | ₹ 124 | 2 | ||
| 3 | 903871084600 | COLLAR | ₹ 76 | 1 | ||
| 4 | 931062081300 | OIL SEAL | ₹ 103 | 1 | ||
| 5A | 941091281700 | TIRE | ₹ 2138 | 1 | ||
| 5B | 941091281600 | TIRE (3.00-18 6PR) | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | 903871084700 | COLLAR | ₹ 82 | 1 | ||
| 8 | 90105108C400 | BOLT FLANGE | ₹ 100 | 1 | ||
| 9 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 10 | B7JF51210000 | PLATE BRAKE SHOE | ₹ 431 | 1 | ||
| 11 | 2RPWF536W000 | BRAKE SHOE SET | ₹ 366 | 1 | ||
| 12 | 905061200100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 13 | 905061500100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 14 | B7JF51350000 | GEAR DRIVE | ₹ 31 | 1 | ||
| 15 | 1GCF51360000 | BUSH | ₹ 3 | 1 | ||
| 16 | B7JF51380000 | GEAR METER | ₹ 22 | 1 | ||
| 17 | 902012080100 | WASHER SPACER | ₹ 5 | 1 | ||
| 18 | B7JF51550000 | LEVER CAMSHAFT 1 | ₹ 75 | 1 | ||
| 19 | 901010681400 | BOLT | ₹ 5 | 1 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 1 | ||
| 21 | 1GCF51510000 | CAMSHAFT | ₹ 59 | 1 | ||
| 22 | 931054780100 | SEAL OIL | ₹ 16 | 1 | ||
| 23 | 36LF513A0000 | PLATE INDICATOR | ₹ 7 | 1 | ||
| 24 | 1GCF51590000 | SEAL CAMSHAFT | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The BKXE Front Wheel assembly is the foundation of your Yamaha RayZR’s sharp steering and agile handling. This kit features the lightweight Cast Wheel Front, a high-performance Tire (3.00-18 6PR), and a secure Valve Rim. Smooth rotation is guaranteed by high-quality Bearing units, an Oil Seal, and the essential Collar. For the braking system, we include the Plate Brake Shoe and Brake Shoe Set, supported by the Camshaft, Lever Camshaft 1, and Spring Tension (5YY). Accuracy is maintained through the Gear Drive, Bush, and Gear Meter units, complete with a Washer Spacer. The entire assembly is held together by the high-tensile Bolt Flange and Nut U Flange. This wheel kit offers the technical clarity and purchase confidence required for precise turn-in and stability. Whether you are performing a restoration or a simple tire change, using genuine Yamaha bearings and axles ensures your scooter handles with the same precision as the day it was new. Experience the road with the confidence that only factory-engineered wheels can provide.
