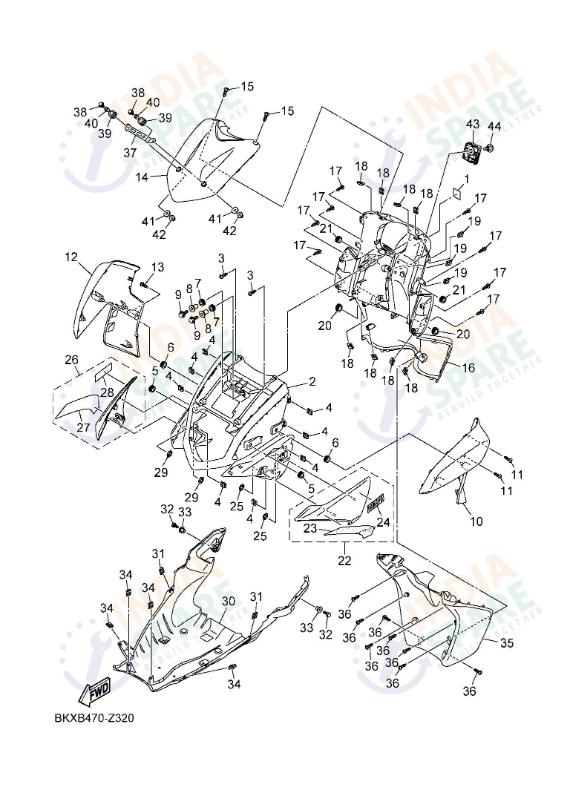

BKXE
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF15680000 | LABEL WARNING | ₹ 6 | 1 | ||
| 2 | B2UF83110000 | LEG SHIELD 1 | ₹ 414 | 1 | ||
| 3 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 8 | ||
| 5 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 6 | 904801339800 | GROMMET | ₹ 10 | 2 | ||
| 7 | 904801382300 | GROMMET | ₹ 20 | 2 | ||
| 8 | 90387068U700 | COLLAR | ₹ 23 | 2 | ||
| 9 | 958220602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 10A | B2UF835U00P1 | PANEL 1 | ₹ 654 | 1 | FOR SMX | |
| 10B | B2UF835U00PC | PANEL 1 | ₹ 654 | 1 | FOR CM7 | |
| 11 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 2 | ||
| 12A | B2UF835V00P1 | PANEL 2 | ₹ 654 | 1 | FOR SMX | |
| 12B | B2UF835V00PC | PANEL 2 | ₹ 654 | 1 | FOR CM7 | |
| 13 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 1 | ||
| 14 | B2UF839R00P0 | PANEL ACCESSORY | ₹ 461 | 1 | ||
| 15 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 16 | B2UF83120000 | LEG SHIELD 2 | ₹ 414 | 1 | ||
| 17 | 977025001600 | SCREW TAPPING | ₹ 10 | 8 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 8 | ||
| 19 | 90183050A700 | NUT SPRING | ₹ 22 | 3 | ||
| 20 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 21 | 904801339800 | GROMMET | ₹ 10 | 2 | ||
| 22A | B2UXF8AB20P2 | PLATE 1 SUB ASSY | ₹ 239 | 1 | FOR SMX | |
| 22B | B2UXF8AB00P4 | PLATE,1 SUB ASSY | ₹ 354 | 1 | FOR CM7 | |
| 23A | BKXF83911000 | GRAPHIC 1 | ₹ 65 | 1 | FOR SMX | |
| 23B | BKXF83917000 | GRAPHIC 1 | ₹ 75 | 1 | FOR CM7 | |
| 24 | B2UF83150000 | EMBLEM | ₹ 20 | 1 | ||
| 25 | 901830506700 | NUT SPRING | ₹ 8 | 2 | ||
| 26A | B2UXF8AC20P2 | PLATE 2 SUB ASSY | ₹ 239 | 1 | FOR SMX | |
| 26B | B2UXF8AC00P4 | PLATE,2 SUB ASSY | ₹ 354 | 1 | FOR CM7 | |
| 27A | BKXF83921000 | GRAPHIC 2 | ₹ 65 | 1 | FOR SMX | |
| 27B | BKXF83927000 | GRAPHIC 2 | ₹ 75 | 1 | FOR CM7 | |
| 28 | B2UF83150000 | EMBLEM | ₹ 20 | 1 | ||
| 29 | 901830506700 | NUT SPRING | ₹ 8 | 2 | ||
| 30 | B2UF83850100 | COVER UNDER | ₹ 295 | 1 | ||
| 31 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 32 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 33 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 34 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 35 | B2UF15520000 | FENDER INNER | ₹ 295 | 1 | ||
| 36 | 977025001200 | SCREW TAPPING | ₹ 11 | 8 | ||
| 37 | B2UF34870000 | STAY PLATE | ₹ 32 | 1 | ||
| 38 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 39 | 904801481900 | GROMMET | ₹ 8 | 2 | ||
| 40 | 90387066J900 | COLLAR | ₹ 7 | 2 | ||
| 41 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 42 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 43 | B7JF83790000 | HOOK | ₹ 81 | 1 | ||
| 44 | 90109068C800 | BOLT | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The BKXE Leg Shield assembly is where aggressive personality and rider protection converge on your Yamaha RayZR. This extensive kit features a complex array of aerodynamic parts, including Panel 1 and Panel 2 sets, Leg Shield 1 and 2, and the durable Cover Under. Aesthetic flair is maintained through specialized Graphic 1 and 2, the iconic Emblem, and the Fender Inner. Every component is secured with specialized Nut Spring, Bolt Hex. Socket Button, and Bolt Flange hardware. To isolate vibrations, we provide high-quality GROMMET and Collar sets, along with a specialized Hook and Bolt assembly. Structural integrity is maintained via the Stay Plate and various Washer Plate hardware. For a finished look, we include the specialized Round Tapping Screw and Label Warning. This assembly provides the technical clarity of a flawless fit and the purchase confidence of using high-impact resistant materials. Refresh your scooters profile and protect your engine components from road debris with these genuine Yamaha panels, designed for street-level dominance.
