BKXE

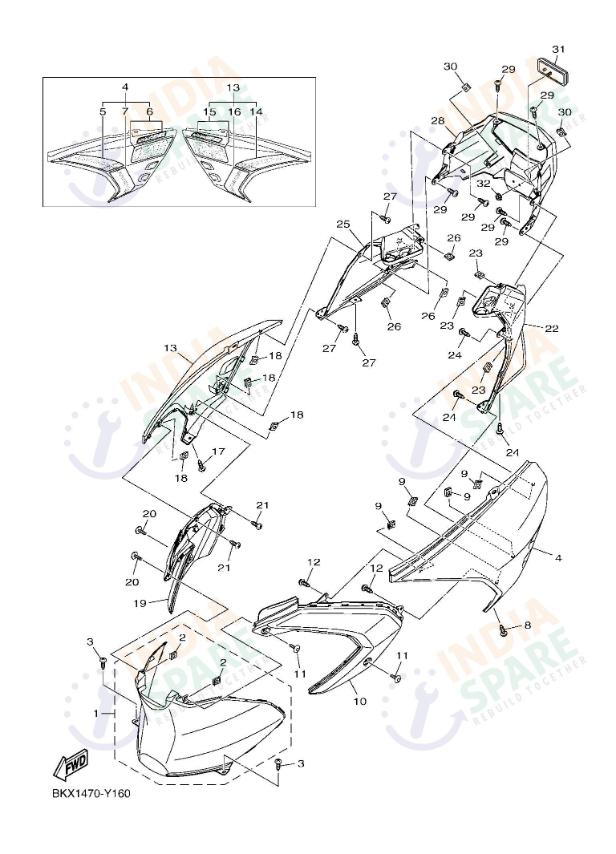

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B2UXF17E0000 | COVER TOP SUB ASSY | ₹ 165 | 1 | ||
| 2 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 3 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||

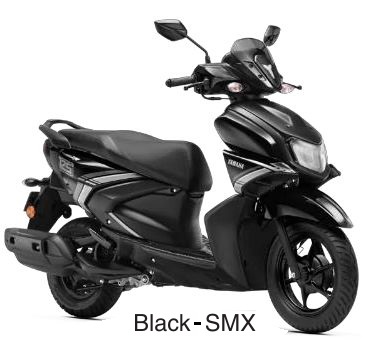

| 4A | B2UXF17140P1 | SIDE COVER ASSY 1 | ₹ 663 | 1 | FOR SMX | |

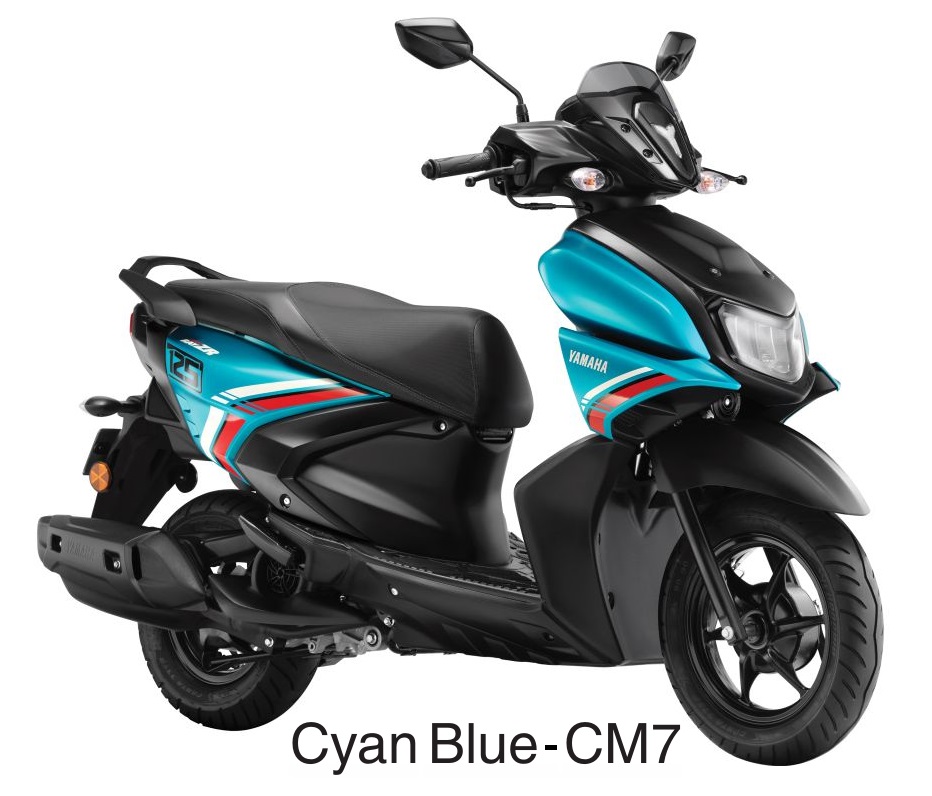

| 4B | B2UXF17100PB | SIDE COVER ASSY 1 | ₹ 1161 | 1 | FOR CM7 | |
| 5A | BKXF173E1000 | GRAPHIC 1 | ₹ 95 | 1 | FOR SMX | |
| 5B | BKXF173E7000 | GRAPHIC 1 | ₹ 125 | 1 | FOR CM7 | |
| 6A | BKXF174G1000 | GRAPHIC 3 | ₹ 105 | 1 | FOR SMX | |
| 6B | BKXF174G6000 | GRAPHIC 3 | ₹ 125 | 1 | FOR CM7 | |
| 7A | BKXF174J1000 | GRAPHIC 5 | ₹ 70 | 1 | FOR SMX | |
| 7B | BKXF174J6000 | GRAPHIC 5 | ₹ 75 | 1 | FOR CM7 | |
| 8 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 10 | B2UF171L00P0 | MOLE SIDE COVER 1 | ₹ 179 | 1 | ||
| 11 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 2 | ||
| 12 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 13A | B2UXF17240P1 | SIDE COVER ASSY 2 | ₹ 663 | 1 | FOR SMX | |
| 13B | B2UXF17200PB | SIDE COVER ASSY 2 | ₹ 1161 | 1 | FOR CM7 | |
| 14A | BKXF173F1000 | GRAPHIC 2 | ₹ 95 | 1 | FOR SMX | |
| 14B | BKXF173F7000 | GRAPHIC 2 | ₹ 125 | 1 | FOR CM7 | |
| 15A | BKXF174H1000 | GRAPHIC 4 | ₹ 105 | 1 | FOR SMX | |
| 15B | BKXF174H6000 | GRAPHIC 4 | ₹ 125 | 1 | FOR CM7 | |
| 16A | BKXF174K1000 | GRAPHIC 6 | ₹ 70 | 1 | FOR SMX | |
| 16B | BKXF174K6000 | GRAPHIC 6 | ₹ 75 | 1 | FOR CM7 | |
| 17 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 19 | B2UF171M00P0 | MOLE SIDE COVER 2 | ₹ 179 | 1 | ||
| 20 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 2 | ||
| 21 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 22 | B2UF17310000 | COVER SIDE 3 | ₹ 92 | 1 | ||
| 23 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 24 | 977025001200 | SCREW TAPPING | ₹ 11 | 3 | ||
| 25 | B2UF17410000 | COVER SIDE 4 | ₹ 92 | 1 | ||
| 26 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 27 | 977025001200 | SCREW TAPPING | ₹ 11 | 3 | ||
| 28 | B2UF171E0000 | COVER SIDE 5 | ₹ 165 | 1 | ||
| 29 | 977025001200 | SCREW TAPPING | ₹ 11 | 6 | ||
| 30 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 31 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 32 | 957070550000 | NUT FLANGE | ₹ 1 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Refresh your machine’s aesthetic with the comprehensive BKXE Side Cover assembly, a collection of panels and graphics that scream performance. This kit includes the Side Cover Assy 1 and 2, all adorned with high-quality Graphics 1 through 6 for a dynamic look. Technical details like the Nut Spring, Screw Tapping, and Bolt Hex. Socket Button ensure a flush, rattle-free fitment. The kit also includes the Cover Top Sub Assy and specialized Cover Side 3, 4, and 5 panels to maintain the factorys high standards. For safety and visibility, we’ve included the Reflector Assy and its Nut Flange. We also provide the Mole Side Cover 1 and 2 for a finished, layered look. Whether you are repairing damage or customizing your look, these genuine panels and graphics provide the perfect fit and finish. Experience the heart of a storyteller through the bold lines and premium textures of Yamaha’s authentic bodywork. Refresh your scooter’s presence with these genuine Yamaha panels, designed for street-level dominance.
