BP12
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

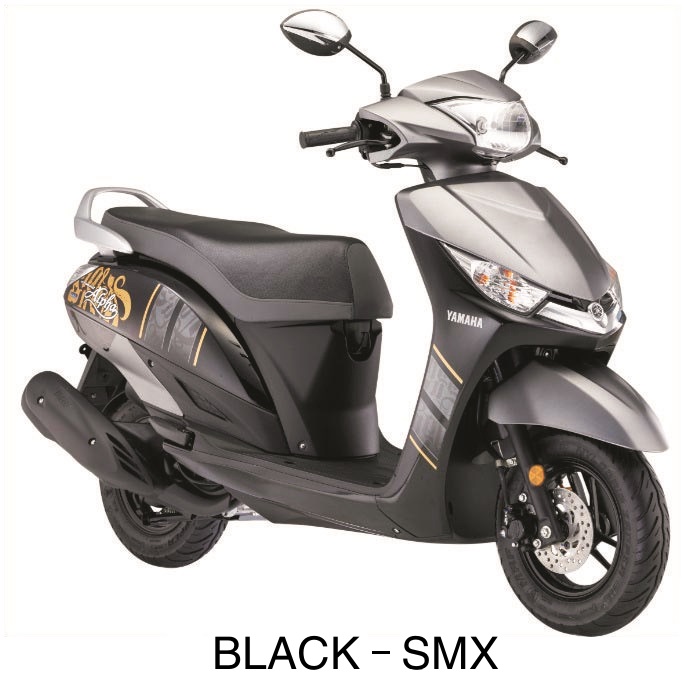

| 1A | 2FCF151100P6 | FENDER FRONT-MNM3(MAT GREY) | ₹ 792 | 1 | FOR SMX | |

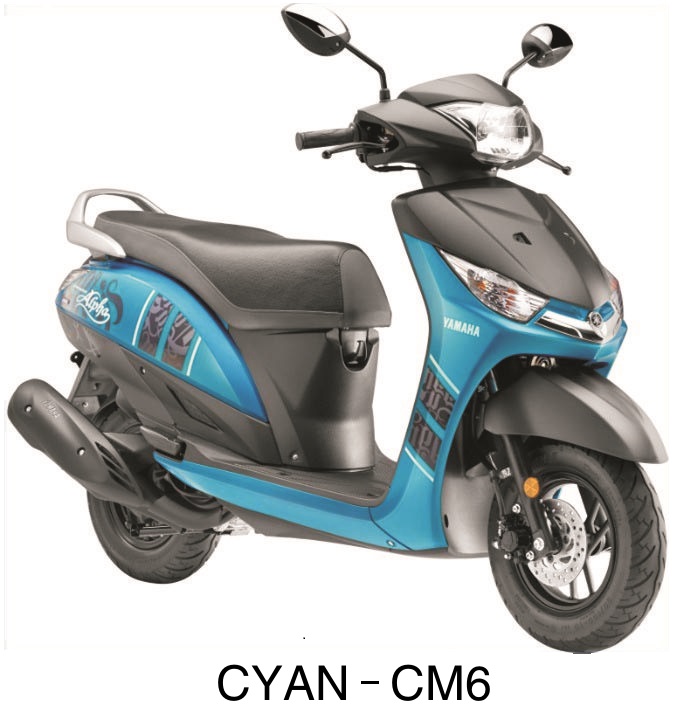

| 1B | 2FCF151100P7 | FENDER FRONT-MBL2(MAT BLACK) | ₹ 792 | 1 | FOR CM6 | |

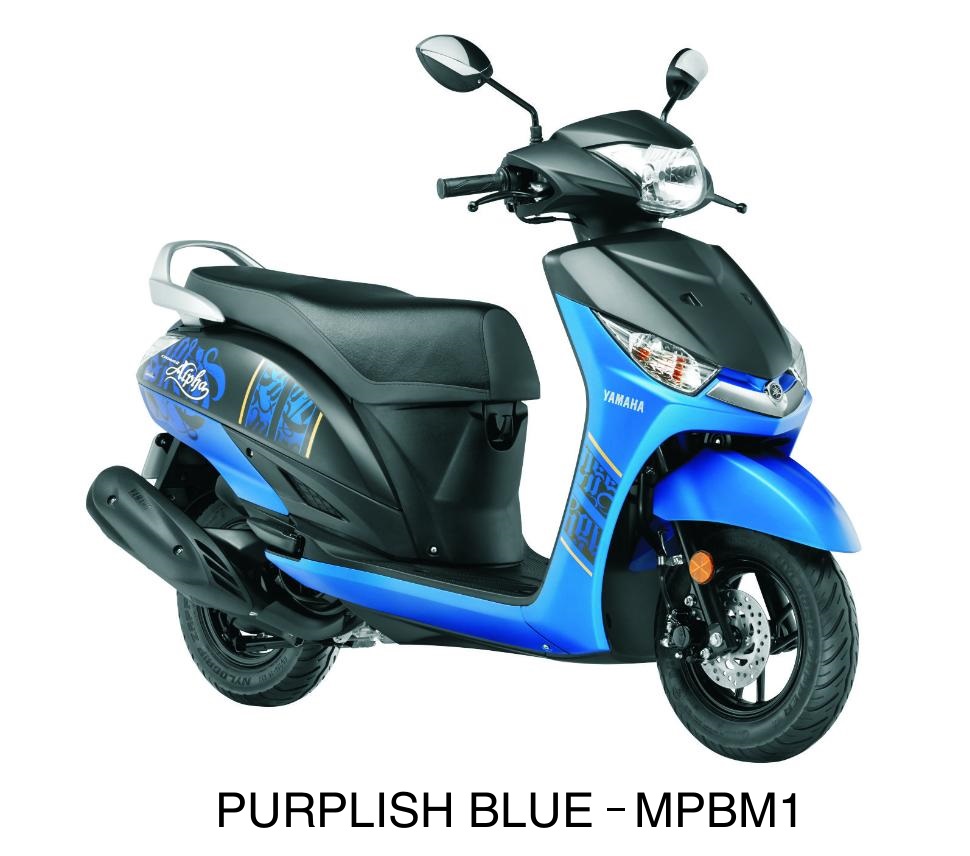

| 1C | 2FCF151100P8 | FENDER FRONT -MPBM1(PURPLE B | ₹ 792 | 1 | FOR MPBM1 | |
| 2 | 90387068S100 | COLLAR | ₹ 12 | 3 | ||
| 3 | 958120601400 | BOLT FLANGE | ₹ 5 | 3 | ||
| 4 | 1GCF16110000 | FENDER REAR | ₹ 128 | 1 | ||
| 5 | 901090620200 | BOLT | ₹ 13 | 3 | ||
| 6 | 90387068M600 | COLLAR | ₹ 11 | 1 | ||
| 7 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 1 | ||
| 8 | 1GCF16120000 | BRACKET REAR FENDER | ₹ 20 | 1 | ||
| 9 | 958120601400 | BOLT FLANGE | ₹ 5 | 1 | ||
| 10 | 2FCF16290000 | GUARD MUD | ₹ 248 | 1 | ||
| 11 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 12 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 13 | 2FSF16210000 | FLAP | ₹ 18 | 1 | ||
| 14 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 15 | 957020550000 | NUT FLANGE | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA BP12 ALPHA Series FENDER
