STEERING HANDLE & CABLE
BP16
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B62F61101000 | HANDLE COMP. | ₹ 580 | 1 | ||
| 2 | 901051028300 | BOLT FLANGE | ₹ 24 | 1 | ||
| 3 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 4 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||

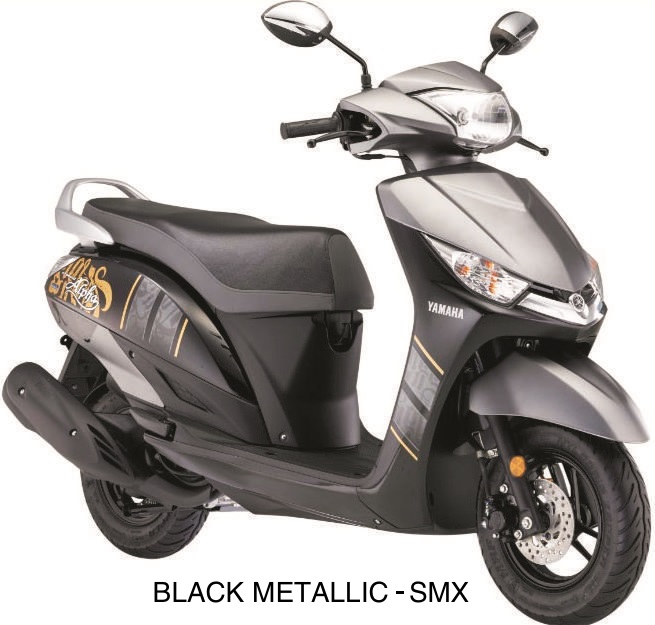

| 5A | BP1F614300P0 | COVER HANDLE UPPER MNM3 | ₹ 519 | 1 | FOR SMX | |

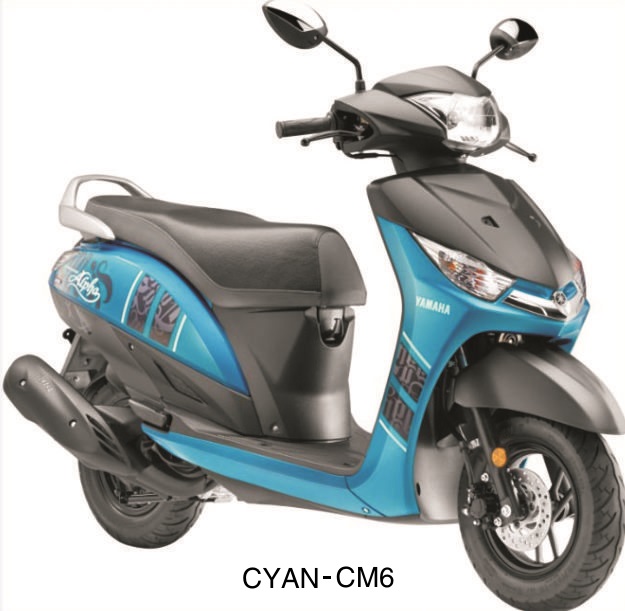

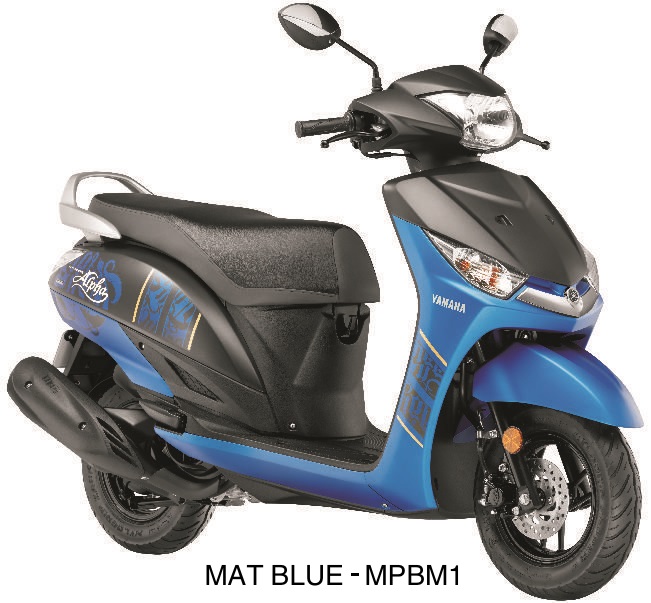

| 5B | BP1F614300P1 | COVER HANDLE UPPER MBL2 | ₹ 519 | 1 | FOR CM6,MPBM1 | |
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | BP1F61450000 | COVER HANDLE UPPER | ₹ 133 | 1 | ||
| 9 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 10 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 11A | 2XBH355901P0 | COVER METER-MNM3(MAT GREY) | ₹ 258 | 1 | FOR SMX | |
| 11B | 2XBH355901P1 | COVER METER MBL2(MAT BLACK) | ₹ 258 | 1 | FOR CM6,MPBM1 | |
| 12 | 2FSF62400000 | GRIP ASSY | ₹ 40 | 1 | ||
| 13 | 2FSF62810000 | CAP GRIP UPPER | ₹ 13 | 1 | ||
| 14 | 2FSF62820000 | CAP GRIP UNDER | ₹ 13 | 1 | ||
| 15 | 985020502500 | SCREW PAN HEAD | ₹ 4 | 2 | ||
| 16 | 54BF62410000 | GRIP | ₹ 35 | 1 | ||
| 17 | 2XBF62800100 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 375 | 1 | ||
| 18 | 2XBF62900100 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 375 | 1 | ||
| 19 | B2VF63110100 | CABLE THROTTLE 1 | ₹ 354 | 1 | ||
| 20 | 985020502000 | SCREW PAN HEAD | ₹ 4 | 1 | ||
| 21 | 904642480200 | CLAMP | ₹ 13 | 1 | ||
| 22 | BP1F63510000 | CABLE BRAKE | ₹ 290 | 1 | ||
| 23 | 905011680800 | SPRING COMPRESSION | ₹ 13 | 1 | ||
| 24 | 901790680600 | NUT BRAKE | ₹ 17 | 1 | ||
| 25 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 26 | 1GCF637G0000 | HOLDER WIRE | ₹ 16 | 1 | ||
| 27 | 1GCF62570000 | STOPPER | ₹ 5 | 1 | ||
| 28 | 950220604000 | BOLT FLANGE | ₹ 18 | 1 | ||
| 29 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 30 | 2FSF63310000 | CABLE STARTER 1 | ₹ 170 | 1 | ||
| 31 | 1GCF63530000 | NUT ADJUSTING | ₹ 15 | 1 | ||
| 32 | 2FSF62790000 | GUIDE CABLE | ₹ 23 | 1 | ||
| 33 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 34 | 2FSF637G0000 | HOLDER WIRE | ₹ 13 | 1 | ||
| 35 | BP1F63720000 | COVER HANDLE LEVER 1 | ₹ 13 | 1 | ||
| 36 | BP1F637A0100 | COVER, HANDLE LEVER 2 | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
