FRONT FORK
BPD6
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

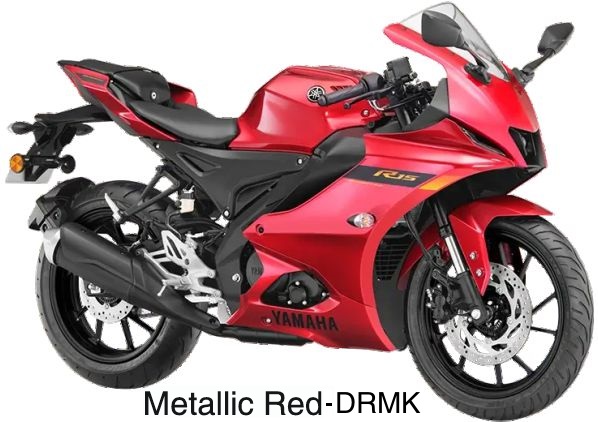

| 1A | BCWF31002000 | FRONT FORK ASSY | ₹ 24116 | 1 | FOR DRMK | |

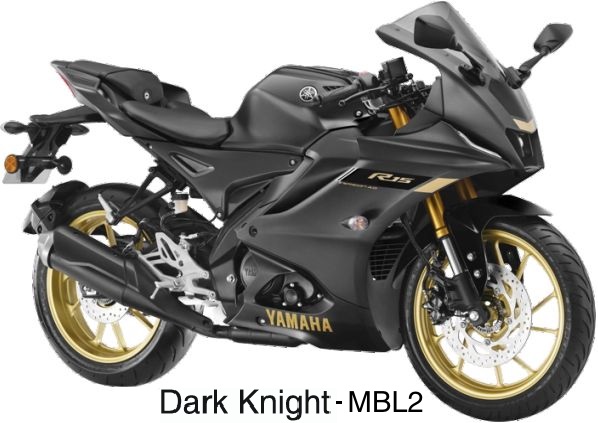

| 1B | BCWF31001000 | FRONT FORK ASSY | ₹ 22300 | 1 | FOR MBL2 | |
| 2A | BCWF31032000 | DAMPER ASSY. (R) | ₹ 11108 | 1 | FOR DRMK | |
| 2B | BCWF31031000 | FRONT FORK ASSY (R.H) | ₹ 10997 | 1 | FOR MBL2 | |
| 3 | BCWF31201000 | INNER TUBE COMP.2 | ₹ 2971 | 1 | ||
| 4 | BCWF22220000 | SPRING SHOCK ABSORBER 2 | ₹ 27 | 1 | ||
| 5 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 6 | BCWF319U0000 | CAP | ₹ 97 | 1 | ||
| 7 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 8 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 9 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 10 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 11 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 12 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 13A | BCWF31262000 | TUBE, OUTER (L.H) | ₹ 4074 | 1 | FOR DRMK | |
| 13B | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | FOR MBL2 | |
| 14 | BCWF332K0000 | BUMP, STOP | ₹ 37 | 1 | ||
| 15 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 16 | BCWF31111000 | BOLT CAP | ₹ 361 | 1 | ||
| 17 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 18A | BCWF31022000 | DAMPER ASSY. (L) | ₹ 12426 | 1 | FOR DRMK | |
| 18B | BCWF31021000 | FRONT FORK ASSY (L.H) | ₹ 12297 | 1 | FOR MBL2 | |
| 19 | BCWF31101000 | INNER TUBE COMP.1 | ₹ 2971 | 1 | ||
| 20 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 21 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 22 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 23 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 24 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 25 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 26A | BCWF31262000 | TUBE, OUTER (L.H) | ₹ 4074 | 1 | FOR DRMK | |
| 26B | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | FOR MBL2 | |
| 27 | BCWF31700000 | CYLINDER COMP. FRONT FORK | ₹ 2112 | 1 | ||
| 28 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 29 | BCWF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 36 | 1 | ||
| 30 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 31 | BCWF31170000 | GUIDE, SPRING | ₹ 39 | 1 | ||
| 32 | BCWF31180000 | SPACER | ₹ 85 | 1 | ||
| 33 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 34 | BCWF31111000 | BOLT CAP | ₹ 361 | 1 | ||
| 35 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 36 | BCWF33400000 | UNDER BRACKET COMP. | ₹ 2544 | 1 | ||
| 37 | 5YYF34620000 | SEAL DUST STEERING | ₹ 23 | 1 | ||
| 38 | 2FBF38750000 | .BEARING, STEERING LOWER | ₹ 0 | 1 | ||
| 39 | BCWF33460000 | BOLT 1 | ₹ 55 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Conquer every road with exceptional precision and agility using the advanced Front Fork assemblies for your Yamaha R15 V4. This system is the gateway to superior suspension, absorbing imperfections and delivering unparalleled feedback for confident handling. Our FRONT FORK ASSY (L.H) is engineered to provide optimal damping and spring action, ensuring consistent tire contact. Crucial OIL SEALS maintain lubrication and prevent contamination, ensuring smooth, long-lasting operation. The responsive SPRING FRONT FORK contributes to a balanced ride, enhancing both comfort and sporty performance. Equip your Yamaha R15 V4 with these vital components for a truly connected and exhilarating riding experience.
