FRONT FORK
BPDR
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

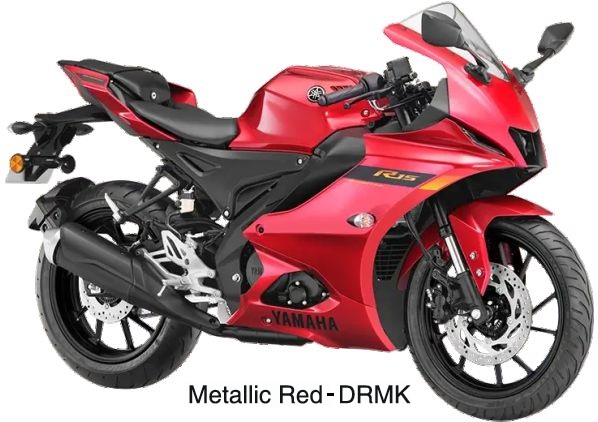

| 1A | BCWF31002000 | FRONT FORK ASSY | ₹ 24116 | 1 | FOR DRMK | |

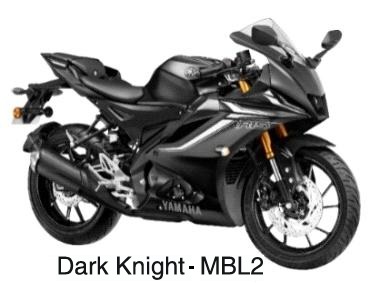

| 1B | BCWF31001000 | FRONT FORK ASSY | ₹ 22300 | 1 | FOR MBL2 | |
| 2A | BCWF31032000 | DAMPER ASSY. (R) | ₹ 11108 | 1 | FOR DRMK | |
| 2B | BCWF31031000 | FRONT FORK ASSY (R.H) | ₹ 10997 | 1 | FOR MBL2 | |
| 3 | BCWF31201000 | INNER TUBE COMP.2 | ₹ 2971 | 1 | ||
| 4 | BCWF22220000 | SPRING SHOCK ABSORBER 2 | ₹ 27 | 1 | ||
| 5 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 6 | BCWF319U0000 | CAP | ₹ 97 | 1 | ||
| 7 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 8 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 9 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 10 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 11 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 12 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 13A | BCWF31262000 | TUBE, OUTER (L.H) | ₹ 4074 | 1 | FOR DRMK | |
| 13B | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | FOR MBL2 | |
| 14 | BCWF332K0000 | BUMP, STOP | ₹ 37 | 1 | ||
| 15 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 16 | BCWF31111000 | BOLT CAP | ₹ 361 | 1 | ||
| 17 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 18A | BCWF31022000 | DAMPER ASSY. (L) | ₹ 12426 | 1 | FOR DRMK | |
| 18B | BCWF31021000 | FRONT FORK ASSY (L.H) | ₹ 12297 | 1 | FOR MBL2 | |
| 19 | BCWF31101000 | INNER TUBE COMP.1 | ₹ 2971 | 1 | ||
| 20 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 21 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 22 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 23 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 24 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 25 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 26A | BCWF31262000 | TUBE, OUTER (L.H) | ₹ 4074 | 1 | FOR DRMK | |
| 26B | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | FOR MBL2 | |
| 27 | BCWF31700000 | CYLINDER COMP. FRONT FORK | ₹ 2112 | 1 | ||
| 28 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 29 | BCWF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 36 | 1 | ||
| 30 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 31 | BCWF31170000 | GUIDE, SPRING | ₹ 39 | 1 | ||
| 32 | BCWF31180000 | SPACER | ₹ 85 | 1 | ||
| 33 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 34 | BCWF31111000 | BOLT CAP | ₹ 361 | 1 | ||
| 35 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 36 | BCWF33400000 | UNDER BRACKET COMP. | ₹ 2544 | 1 | ||
| 37 | 5YYF34620000 | SEAL DUST STEERING | ₹ 23 | 1 | ||
| 38 | 2FBF38750000 | .BEARING, STEERING LOWER | ₹ 0 | 1 | ||
| 39 | BCWF33460000 | BOLT 1 | ₹ 55 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Handling plus precision are defining features of the Yamaha R15 V4, plus the Front Fork assembly is the foundation of that performance. This sophisticated suspension system features the Damper Assy plus the Inner Tube Comp for superior rigidity plus feedback. Inside, the Spring Front Fork plus the Piston work together to provide consistent damping plus a smooth ride over varied Indian road surfaces. The assembly is kept leak free by high quality Oil Seal plus Seal Dust units, protected by the Ring Snap. Every Tube Outer plus Bolt Cap is manufactured to the highest standards to ensure smooth action plus longevity. The Under Bracket Comp plus the Seal Dust Steering ensure that the steering remains responsive plus fluid. For the Yamaha R15 V4, these forks are critical for both track day performance plus daily comfort. Genuine Yamaha fork parts are essential for maintaining the high quality damping characteristics that define this machine.
