LEG SHIELD
BPDV
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

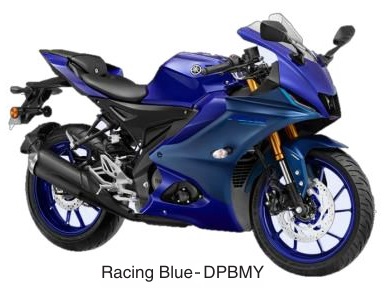

| 1A | BCWXF83610P1 | PANEL COMP 1 | ₹ 1843 | 1 | FOR DPBMY | |
| 1B | BCWXF83600P6 | PANEL COMP 1 | ₹ 1843 | 1 | FOR MNM3 | |

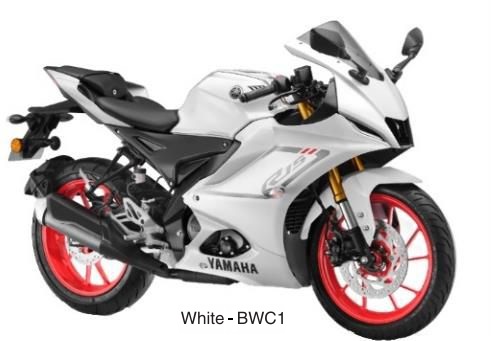

| 1C | BCWXF83610P3 | PANEL COMP 1 | ₹ 1862 | 1 | FOR BWC1 | |
| 2A | BPDF83931000 | GRAPHIC 3 | ₹ 300 | 1 | FOR DPBMY | |
| 2B | BPDF83933000 | GRAPHIC 3 | ₹ 325 | 1 | FOR MNM3 | |
| 2C | BGNF83931000 | GRAPHIC 3 | ₹ 500 | 1 | FOR BWC1 | |
| 3 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 5 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 6A | BCWXF83G10P1 | PANEL COMP 2 | ₹ 1843 | 1 | FOR DPBMY | |
| 6B | BCWXF83G00P6 | PANEL COMP 2 | ₹ 1843 | 1 | FOR MNM3 | |
| 6C | BCWXF83G10P3 | PANEL COMP 2 | ₹ 1862 | 1 | FOR BWC1 | |
| 7A | BPDF83941000 | GRAPHIC 4 | ₹ 300 | 1 | FOR DPBMY | |
| 7B | BPDF83943000 | GRAPHIC 4 | ₹ 325 | 1 | FOR MNM3 | |
| 7C | BGNF83941000 | GRAPHIC 4 | ₹ 500 | 1 | FOR BWC1 | |
| 8 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 10 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 11 | BCWF837L0000 | PANEL CONSOLE 1 | ₹ 66 | 1 | ||
| 12 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 13 | BCWF837M0000 | PANEL CONSOLE 2 | ₹ 66 | 1 | ||
| 14 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 15A | BCWF838500P8 | COVER, LOWER | ₹ 1677 | 1 | FOR DPBMY | |
| 15B | BCWF838500P7 | COVER, LOWER | ₹ 1682 | 1 | FOR MNM3 | |
| 15C | BCWXF83800P4 | UNDER COVER ASSY 1 | ₹ 1783 | 1 | FOR BWC1 | |
| 16 | BCWF839H0000 | EMBLEM 1 | ₹ 72 | 1 | FOR BWC1 | |
| 17 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 19 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 20 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 21 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 22 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 23A | BCWF839500P8 | COVER, UNDER | ₹ 1677 | 1 | FOR DPBMY | |
| 23B | BCWF839500P7 | COVER, UNDER | ₹ 1682 | 1 | FOR MNM3 | |
| 23C | BCWXF83900P4 | UNDER COVER ASSY 2 | ₹ 1783 | 1 | FOR BWC1 | |
| 24 | BCWF839H0000 | EMBLEM 1 | ₹ 72 | 1 | FOR BWC1 | |
| 25 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 26 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 27 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 28 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 29 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 30 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 31 | BCWF836K0000 | PANEL INNER 1 | ₹ 132 | 1 | ||
| 32 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 33 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 34 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 35 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 36 | BCWF836L0000 | PANEL INNER 2 | ₹ 132 | 1 | ||
| 37 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 38 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 39 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 40 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 41 | BCWF836M0000 | PANEL INNER 3 | ₹ 286 | 1 | ||
| 42 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 43 | 902690681300 | RIVET | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
