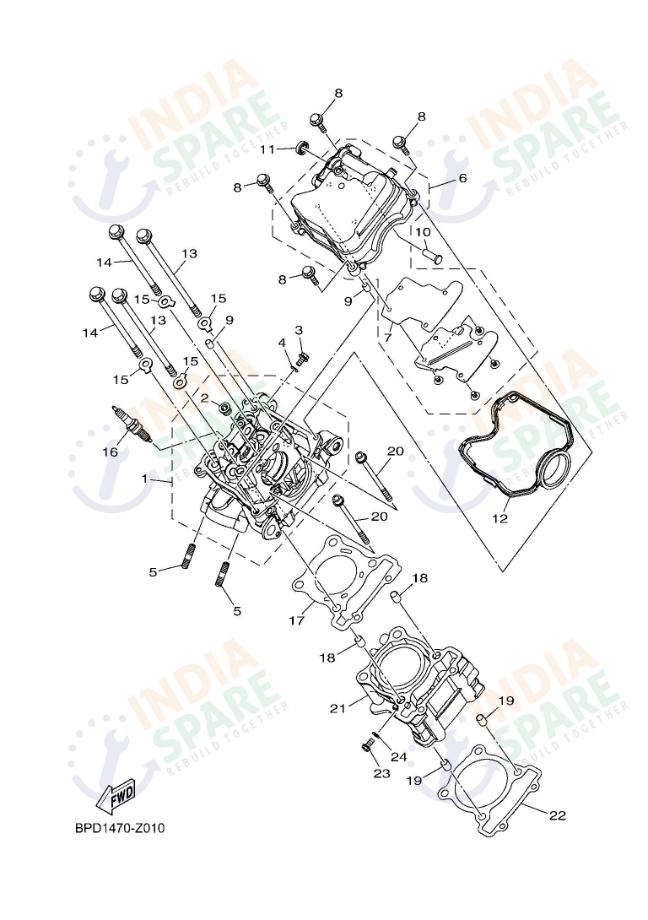

CYLINDER HEAD
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B0TE11021000 | CYLINDER HEAD ASSY | ₹ 5171 | 1 | ||
| 2 | 903401281300 | PLUG STRAIGHT SCREW | ₹ 55 | 1 | ||
| 3 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 4 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 5 | 956120861800 | BOLT STUD | ₹ 15 | 2 | ||
| 6 | BK7E11900000 | COVER CYLINDER HEAD 1 | ₹ 558 | 1 | ||
| 7 | BK7E11690000 | GASKET BREATHER COVER | ₹ 20 | 1 | ||
| 8 | 950220603000 | BOLT FLANGE | ₹ 14 | 4 | ||
| 9 | 995300801200 | PIN DOWEL | ₹ 23 | 2 | ||
| 10 | BCWE132G0000 | ROD 1 | ₹ 106 | 1 | ||
| 11 | 931020880000 | OIL SEAL | ₹ 142 | 1 | ||
| 12 | BK7E11930000 | GASKET HEAD COVER 1 | ₹ 148 | 1 | ||
| 13 | 90105088J700 | BOLT FLANGE | ₹ 95 | 2 | ||
| 14 | 90105088J600 | BOLT FLANGE | ₹ 88 | 2 | ||
| 15 | BLVE113F0000 | PLATE 3 | ₹ 35 | 4 | ||
| 16 | 947030043900 | PLUG SPARK | ₹ 245 | 1 | ||
| 17 | B0TE11810000 | GASKET CYLINDER HEAD 1 | ₹ 350 | 1 | ||
| 18 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 19 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 20 | 901100637800 | BOLT HEXAGON SOCKET HEAD | ₹ 176 | 2 | ||
| 21 | BCWE13110100 | CYLINDER | ₹ 0 | 1 | ||
| 22 | B0TE13510000 | GASKET CYLINDER | ₹ 82 | 1 | ||
| 23 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 24 | 904300681700 | GASKET | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Secure at IndiaSpare. Commanding the combustion of every fuel molecule occurs within the high technology environment of the original plus reliable Yamaha R15 V3 S Cylinder Head units. This specific assembly includes the primary Cylinder Head along with specialized items like the Head Gasket plus original Spark Plugs plus high quality Head Covers. Within this detailed catalog you will find every required Flange Bolt plus Pin Dowel alongside specialized Seal kits required for an airtight engine head rebuild. Every original Gasket plus Oil Seal provided here represents the high heat resistance required for liquid cooled engines to prevent leaks plus compression loss during long runs. These heads are precision engineered with optimized cooling channels meant for managing extreme thermal loads experienced during high rev racing plus urban touring through the city. R15 V3 S owners recognize that original cylinder heads preserve power. Grab at IndiaSpare.
