FENDER
BPDW

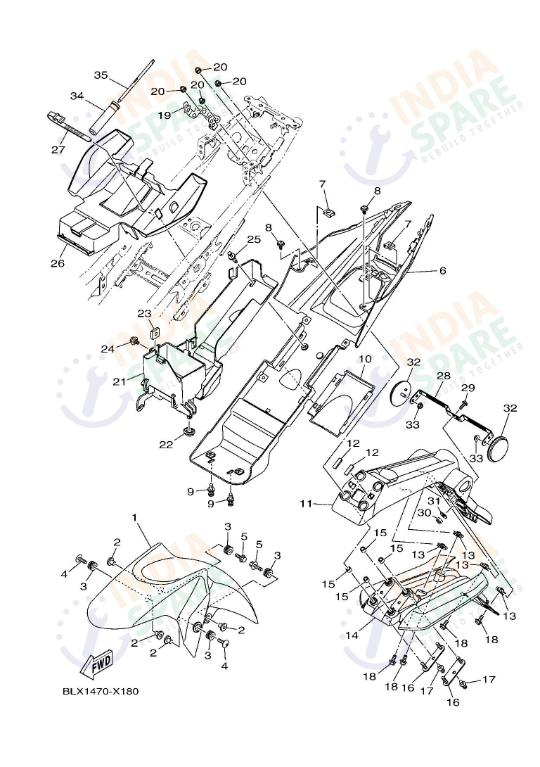

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7F15110000 | FENDER FRONT (BLACK COLOR) | ₹ 221 | 1 | ||
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 5 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 6 | BLXF16110000 | FENDER REAR | ₹ 244 | 1 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 901590681700 | SCREW, WITH WASHER | ₹ 10 | 2 | ||
| 9 | 902690681200 | RIVET | ₹ 20 | 2 | ||

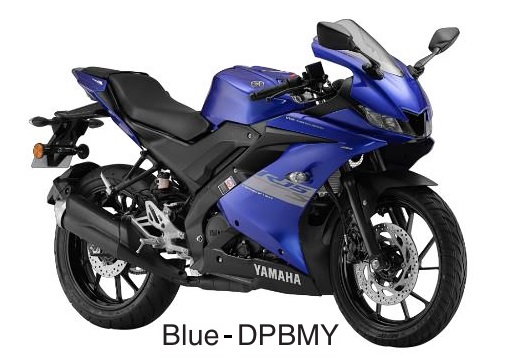

| 10A | BK7F162R00P0 | FENDER 2-DPBMY(DEEPPURPLE BLUE | ₹ 151 | 1 | FOR DPBMY | |

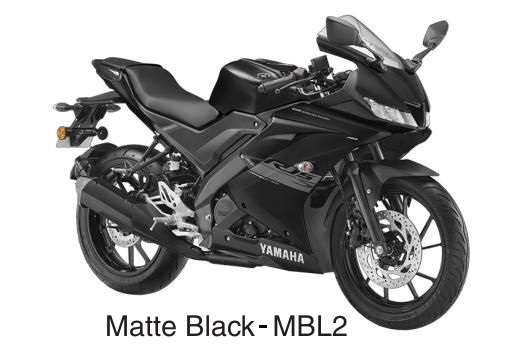

| 10B | BK7F162R00P2 | FENDER 2 | ₹ 151 | 1 | FOR MBL2 | |
| 11 | BK7F16290100 | GUARD MUD | ₹ 161 | 1 | ||
| 12 | BK7F834E0000 | DAMPER 1 | ₹ 14 | 2 | ||
| 13 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 14 | BK7F16170000 | BRACKET FENDER | ₹ 285 | 1 | ||
| 15 | 90387066J900 | COLLAR | ₹ 7 | 4 | ||
| 16 | BK7F16130000 | STAY FENDER 1 | ₹ 50 | 2 | ||
| 17 | 902690681200 | RIVET | ₹ 20 | 2 | ||
| 18 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 4 | ||
| 19 | B0TH19480000 | BRACKET | ₹ 58 | 1 | ||
| 20 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 4 | ||
| 21 | BLXF160E0000 | BOX | ₹ 114 | 1 | ||
| 22 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 23 | 901730680600 | NUT, SQUARE | ₹ 11 | 1 | ||
| 24 | 901090620200 | BOLT | ₹ 13 | 1 | ||
| 25 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 26 | BK7F16530000 | BOX | ₹ 326 | 1 | ||
| 27 | 5TSH39360100 | BAND SWITCH CORD | ₹ 4 | 1 | ||
| 28 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 29 | 950220601400 | BOLT FLANGE | ₹ 12 | 1 | ||
| 30 | 956170610000 | NUT NYLOC | ₹ 76 | 1 | ||
| 31 | 902010607800 | WASHER PLATE | ₹ 10 | 1 | ||
| 32 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 33 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 34 | 36LF81511100 | GRIP DRIVER | ₹ 9 | 1 | ||
| 35 | 36LF81520000 | DRIVER PLUS MINUS | ₹ 11 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Source at IndiaSpare. Shielding the internal mechanics from road spray plus dirt while enhancing the aerodynamic profile remains the primary function of every Yamaha R15 V3 S fender. Our Fender assembly catalog features the original Front Fender Sub Assy along with various Rear Fender components meant for the sportier look you desire. Every kit includes original Brackets plus Stay Fenders alongside specialized Grommets plus Collar kits meant for high frequency vibration resistance throughout your motorcycle. Specialized mud guard items plus Guard Flap gear provide protection for the radiator plus rear monoshock from stones plus flying debris on Indian highways. Using genuine Yamaha R15 V3 S fenders ensures that the mounting holes align perfectly with the suspension hardware without the risk of loose panels. Every original rivet plus specialized Nut Spring found here preserves silence during vibrations. Check at IndiaSpare.
