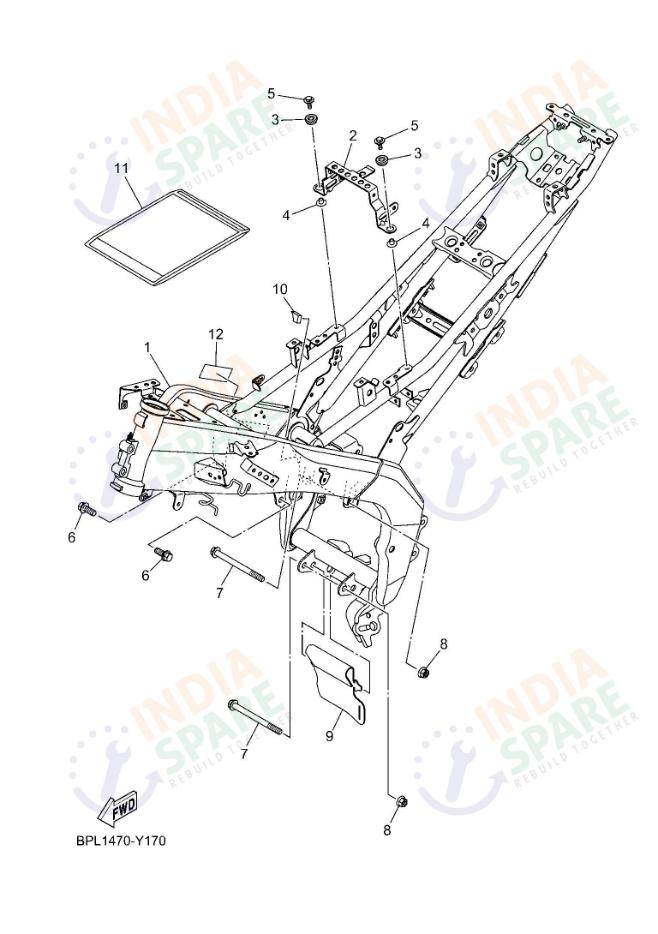

FRAME
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPLF11100000 | FRAME COMP. | ₹ 9200 | 1 | ||
| 2 | BK7F19460000 | BRACKET SEAT FITTING | ₹ 124 | 1 | ||
| 3 | 904801356700 | GROMMET | ₹ 8 | 2 | ||
| 4 | 90387068C500 | COLLAR | ₹ 8 | 2 | ||
| 5 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 2 | ||
| 6 | 90105108A400 | BOLT FLANGE | ₹ 13 | 2 | ||
| 7 | 901051088600 | BOLT FLANGE | ₹ 119 | 2 | ||
| 8 | 901791081900 | NUT | ₹ 6 | 2 | ||
| 9 | B0TF23270000 | MUD GUARD 1 | ₹ 35 | 1 | ||
| 10 | BK7F113B0000 | DAMPER | ₹ 3 | 1 | ||
| 11 | 1CKF81860000 | POUCH | ₹ 36 | 1 | ||
| 12 | B0TF815P0000 | LABEL NOTICE 1 | ₹ 17 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Check at IndiaSpare. The backbone of your sportbike resides within the high tensile strength plus structural engineering of the authentic plus high technology Yamaha R15 V3 S Frame. This specific Frame assembly catalog provides the primary Frame Comp plus essential mounting hardware including Seat Brackets plus various Gaskets needed for frame integrity. Included within this section are high quality Collar kits plus Flange Bolts required for attaching heavy engine components safely to the main motorcycle chassis. Precise items like the Side Cover stays plus original Mud Guards plus specialized Damper Pads prevent unwanted vibrations from affecting the riders comfort during long runs. Every authentic frame part undergoes specialized painting plus anti corrosion treatment to prevent rust within the humid Indian climate over several seasons. Yamaha R15 V3 S riders depend on the rigidity of the original frame for precise handling. View at IndiaSpare.
