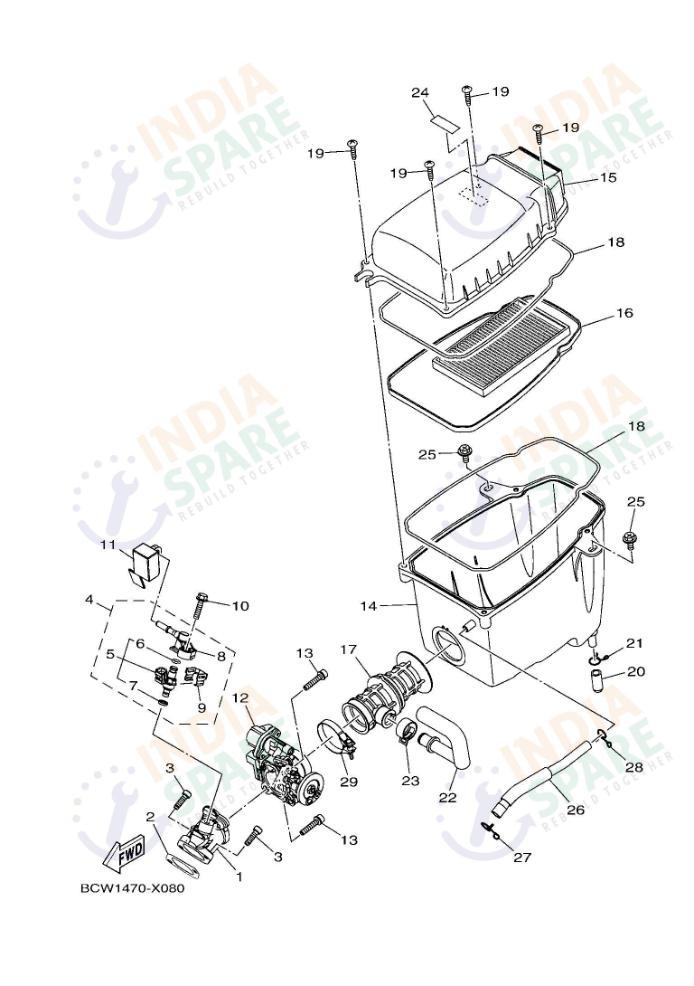

INTAKE
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWE35850000 | MANIFOLD | ₹ 272 | 1 | ||
| 2 | B0TE41990000 | GASKET | ₹ 10 | 1 | ||
| 3 | 913120602000 | BOLT HEXAGON SOCKET HEAD | ₹ 38 | 2 | ||
| 4 | BCWE37700000 | INJECTOR ASSY | ₹ 1897 | 1 | ||
| 5 | BCWE37610000 | INJECTOR | ₹ 1950 | 1 | ||
| 6 | BACE41470000 | O-RING | ₹ 14 | 1 | ||
| 7 | BACE41A10000 | SEAL RING | ₹ 145 | 1 | ||
| 8 | B7JE39381000 | PIPE | ₹ 140 | 1 | ||
| 9 | 1STE41370000 | CLIP | ₹ 87 | 1 | ||
| 10 | 958120602500 | BOLT FLANGE | ₹ 5 | 1 | ||
| 11 | BCWE37670000 | CAP INJECTOR | ₹ 31 | 1 | ||
| 12 | BK7E37501100 | THROTTLE BODY ASSY | ₹ 6337 | 1 | ||
| 13 | 901100684600 | BOLT HEXAGON SOCKET HEAD | ₹ 44 | 2 | ||
| 14 | BPDE44110000 | CASE, AIR CLEANER 1 | ₹ 270 | 1 | ||
| 15 | BPDE44120000 | CAP, CLEANER CASE 1 | ₹ 155 | 1 | ||
| 16 | BPDE44500000 | ELEMENT ASSY, AIR CLEANER | ₹ 270 | 1 | ||
| 17 | BPDE44530000 | JOINT, AIR CLEANER 1 | ₹ 115 | 1 | ||
| 18 | BPDE44520000 | SEAL | ₹ 25 | 2 | ||
| 19 | 977075002500 | SCREW TAPPING | ₹ 6 | 4 | ||
| 20 | 1PME443E0000 | PIPE DRAIN | ₹ 10 | 1 | ||
| 21 | 1PME44380000 | CLIP DRAIN CLEANER | ₹ 5 | 1 | ||
| 22 | BPDE441J0000 | PIPE, SILENCER | ₹ 64 | 1 | ||
| 23 | 904672080400 | CLIP | ₹ 12 | 1 | ||
| 24 | 1GCE417E0000 | LABEL CAUTION | ₹ 6 | 1 | ||
| 25 | 901190605100 | BOLT WITH WASHER | ₹ 18 | 2 | ||
| 26 | BK7E11660000 | PIPE, BREATHER 1 | ₹ 27 | 1 | ||
| 27 | 904671205200 | CLIP | ₹ 80 | 1 | ||
| 28 | 904671182500 | CLIP | ₹ 58 | 1 | ||
| 29 | 904504380700 | HOSE CLAMP ASSY | ₹ 30 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Available at IndiaSpare. Purity of air delivery through every RPM shift allows your high performance Yamaha R15 V3 S engine to breathe with absolute power plus mechanical freedom. The Intake assembly catalog provides all required components including the primary Manifold along with high precision Fuel Injectors plus original Throttle Body units for the bike. Within this detailed section you will find every required Element Assy for the Air Cleaner alongside various specialized Pipes plus Seals required for installation. Genuine air filter kits provide superior filtration required to protect the advanced DiASil cylinder from fine Indian dust while ensuring the perfect fuel air ratio. Using authentic Intake hardware including Clip DRAIN units plus specific Manifold gaskets ensures that the engine stays free from vacuum leaks plus remains remarkably fuel efficient. R15 V3 S riders trust these original intake parts. Buy from IndiaSpare.
