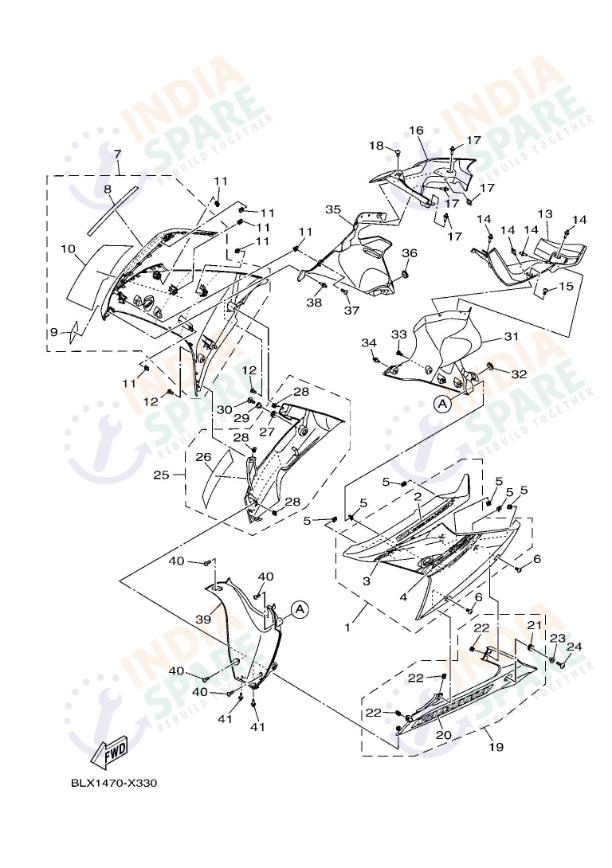

LEG SHIELD
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BK7XF83640P0 | PANEL COMP 1 | ₹ 1859 | 1 | FOR DPBMY | |
| 1B | BK7XF83620P2 | PANEL COMP 1 | ₹ 1465 | 1 | FOR MBL2 | |
| 2A | B0TF83910000 | GRAPHIC 1 | ₹ 22 | 1 | FOR DPBMY | |
| 2B | BLXF83910000 | GRAPHIC 1 | ₹ 25 | 1 | FOR MBL2 | |
| 3 | B9EF843G0000 | GRAPHIC 3 | ₹ 12 | 1 | ||
| 4A | BLXF83930000 | GRAPHIC 3 | ₹ 197 | 1 | FOR DPBMY | |
| 4B | BLXF83931000 | GRAPHIC 3 | ₹ 225 | 1 | FOR MBL2 | |
| 5 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 6 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 7A | BK7XF83G40P0 | PANEL COMP 2 | ₹ 1859 | 1 | FOR DPBMY | |
| 7B | BK7XF83G20P2 | PANEL COMP 2 | ₹ 1465 | 1 | FOR MBL2 | |
| 8A | B0TF83920000 | GRAPHIC 2 | ₹ 22 | 1 | FOR DPBMY | |
| 8B | BLXF83920000 | GRAPHIC 2 | ₹ 25 | 1 | FOR MBL2 | |
| 9 | B9EF843G0000 | GRAPHIC 3 | ₹ 12 | 1 | ||
| 10A | BLXF83940000 | GRAPHIC 4 | ₹ 197 | 1 | FOR DPBMY | |
| 10B | BLXF83941000 | GRAPHIC 4 | ₹ 225 | 1 | FOR MBL2 | |
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 12 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 13 | BK7F837L0000 | PANEL CONSOLE 1 - (BLACK) | ₹ 67 | 1 | ||
| 14 | 902690681200 | RIVET | ₹ 20 | 4 | ||
| 15 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 16 | BK7F837M0000 | PANEL CONSOLE 2 - (BLACK) | ₹ 66 | 1 | ||
| 17 | 902690681200 | RIVET | ₹ 20 | 4 | ||
| 18 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 19 | BK7XF83800P2 | UNDER COVER ASSY 1 MBL1 | ₹ 860 | 1 | ||
| 20 | B0TF841H0000 | GRAPHIC 5 | ₹ 51 | 1 | ||
| 21 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 22 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 23 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 24 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 25 | BK7XF83900P2 | UNDER COVER ASSY 2 MBL2 | ₹ 860 | 1 | ||
| 26 | B0TF841H0000 | GRAPHIC 5 | ₹ 51 | 1 | ||
| 27 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 28 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 29 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 30 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 31 | BK7F836K0000 | PANEL INNER 1 - (BLACK) | ₹ 87 | 1 | ||
| 32 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 33 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 1 | ||
| 34 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 35 | BK7F836L0000 | PANEL INNER 2- (BLACK) | ₹ 129 | 1 | ||
| 36 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 37 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 1 | ||
| 38 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 39 | BK7F836M0000 | PANEL INNER 3 - (BLACK) | ₹ 211 | 1 | ||
| 40 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 41 | 902690681200 | RIVET | ₹ 20 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Stock at IndiaSpare. Safeguarding the internal mechanics of your Yamaha R15 V3 S fairing architecture depends on the perfect fit of the leg shield panels. This catalog section features a vast collection of bodywork including the primary Panel Comp units plus original Graphic kits plus specialized Console units. Every plastic component found within this assembly is crafted for high temperature resistance near the engine while providing essential aerodynamic guidance. Using genuine Panels including various Under Covers plus Inner Panel units preserves the streamlined nature of your sportbike for track plus street. Every Rivet plus Nut Spring plus specialized Screw found within the Leg Shield assembly provides a secure fastening system meant for rugged Indian road conditions. Replacing cracked fairings with original Yamaha R15 V3 S parts ensures that factory lines plus paint matching remain consistent across your machine. Preserve aggressive style now. Trust IndiaSpare.
