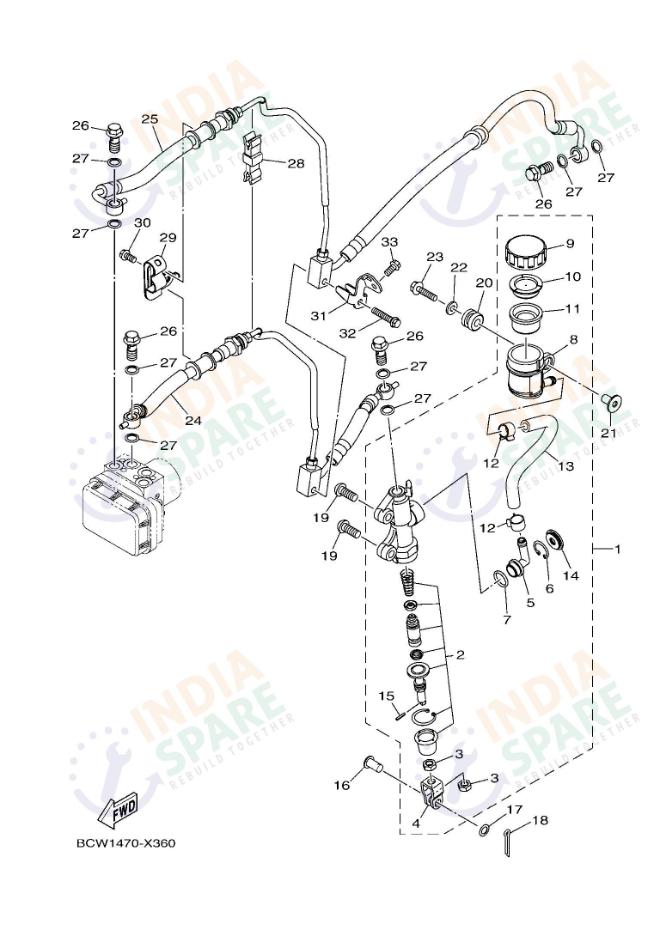

REAR MASTER CYLINDER
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF580E0000 | REAR MASTER CYLINDER ASSY | ₹ 2447 | 1 | ||
| 2 | B5GF58080000 | CYLINDER SET MASTER | ₹ 593 | 1 | ||
| 3 | 953020870000 | NUT | ₹ 3 | 2 | ||
| 4 | 50CF72220000 | JOINT | ₹ 73 | 1 | ||
| 5 | 50CF582A5000 | JOINT | ₹ 82 | 1 | ||
| 6 | 50CF58660000 | CIRCLIP | ₹ 27 | 1 | ||
| 7 | 932101562000 | O-RING | ₹ 16 | 1 | ||
| 8 | 50CF58941100 | TANK RESERVOIR | ₹ 225 | 1 | ||
| 9 | 1WDF58525000 | CAP RESERVOIR | ₹ 92 | 1 | ||
| 10 | 50CF58550000 | BUSH DIAPHRAGM | ₹ 34 | 1 | ||
| 11 | 2VNF58540000 | DIAPHRAGM, RESERVOIR | ₹ 75 | 1 | ||
| 12 | 904671208500 | CLIP | ₹ 13 | 2 | ||
| 13 | BCWF58955000 | HOSE RESERVOIR | ₹ 277 | 1 | ||
| 14 | 50CF589A0000 | COVER DUST | ₹ 110 | 1 | ||
| 15 | 5BU272340000 | PIN, BRAKE ROD | ₹ 150 | 1 | ||
| 16 | 902400800500 | PIN CLEVIS | ₹ 52 | 1 | ||
| 17 | 902010806600 | WASHER PLATE | ₹ 14 | 1 | ||
| 18 | 902521880000 | PIN SPLIT | ₹ 1 | 1 | ||
| 19 | 920120802000 | BOLT BUTTON HEAD | ₹ 20 | 2 | ||
| 20 | BK7F47420000 | GROMMET | ₹ 10 | 1 | ||
| 21 | BK7F62590000 | COLLAR | ₹ 42 | 1 | ||
| 22 | 902010682800 | WASHER PLATE | ₹ 4 | 1 | ||
| 23 | 958020602500 | BOLT FLANGE | ₹ 6 | 1 | ||
| 24 | B9EF584C0100 | HOSE BRAKE | ₹ 897 | 1 | ||
| 25 | B9EF584D0100 | HOSE BRAKE | ₹ 1105 | 1 | ||
| 26 | 904011082600 | BOLT UNION | ₹ 46 | 4 | ||
| 27 | 902011011800 | WASHER PLAIN | ₹ 5 | 8 | ||
| 28 | 904640610100 | CLAMP | ₹ 270 | 1 | ||
| 29 | B9EF58860000 | HOLDER BRAKE HOSE | ₹ 35 | 1 | ||
| 30 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 31 | B9EF58870000 | HOLDER BRAKE HOSE | ₹ 20 | 1 | ||
| 32 | 950220603000 | BOLT FLANGE | ₹ 14 | 1 | ||
| 33 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Trust IndiaSpare. Stopping power represents the most critical safety feature on your high performance Yamaha R15 V3 S during fast spirited rides on canyon roads. The Rear Master Cylinder assembly catalog contains every necessary component for hydraulic restoration including the Cylinder kit plus original Pushing Rod sets. Every Master Cylinder Assy works alongside the Reservoir plus durable Brake Hose setups to translate foot pressure into precise stopping force at the wheel. Precision components including specialized Wire plus Clip units along with authentic Grommet kits ensure that the braking system stays free from leaks. Riders across India who push the Yamaha R15 V3 S to its limits require absolute confidence in the responsiveness of their rear braking circuits. Our inventory including the Connector Bush plus Pin Clevis plus Washer kits ensures a professional repair that matches factory safety standards. Choose genuine hydraulic spares. Shop now at IndiaSpare.
