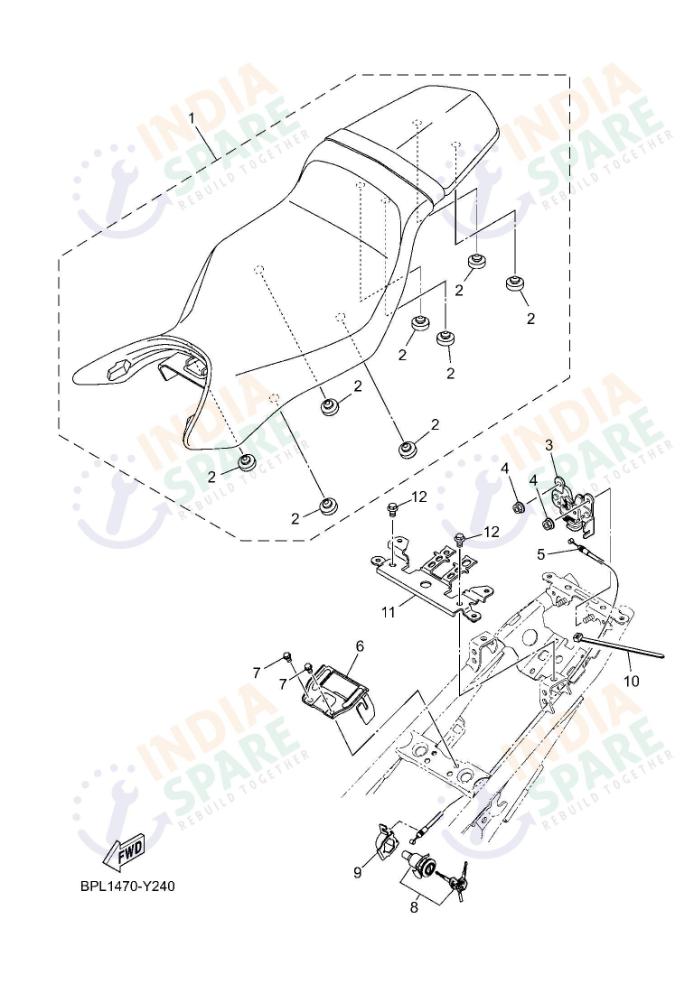

SEAT
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BLXF47300100 | DOUBLE SEAT ASSY | ₹ 1580 | 1 | ||
| 2 | 4LSF47410000 | PAD SEAT | ₹ 8 | 8 | ||
| 3 | BLXF47800000 | SEAT LOCK ASSY | ₹ 88 | 1 | ||
| 4 | 957070650000 | NUT FLANGE | ₹ 5 | 2 | ||
| 5 | BLXF478E0000 | CABLE SEAT LOCK | ₹ 77 | 1 | ||
| 6 | B0TF475H0000 | BRACKET SEAT LEVER 1 | ₹ 120 | 1 | ||
| 7 | 950220601000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 8 | BLXWF4790000 | ROTOR SUB ASSY WITH KEY | ₹ 275 | 1 | ||
| 9 | 1GCF117K0000 | STAY LOCK | ₹ 11 | 1 | ||
| 10 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 11 | BLXF475J0000 | BRACKET SEAT LEVER 2 | ₹ 207 | 1 | ||
| 12 | 950220801200 | BOLT FLANGE | ₹ 9 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Find it at IndiaSpare. Ergonomic comfort plus long distance durability for your Yamaha R15 V3 S resides within our high quality Seat catalog for every adventurous touring enthusiast. This specific assembly provides the original Double Seat Assy for the rider along with the Pad Seat setups meant for your pillion companion. Included in this collection are the necessary Seat Lock Assy plus Cable Seat Lock alongside specialized Bracket Seat Lever units required for maximum security during every journey. These parts feature original waterproof upholstery plus internal foam that retains its shape after years of intense heat plus rain throughout the country. Genuine Yamaha R15 V3 S seat locks plus bracket levers ensure that your seat remains securely attached plus provides easy access to the storage areas underneath. Using original seat assemblies prevents unwanted sliding plus ensures correct posture. Maintain premium feel now. Explore at IndiaSpare.
