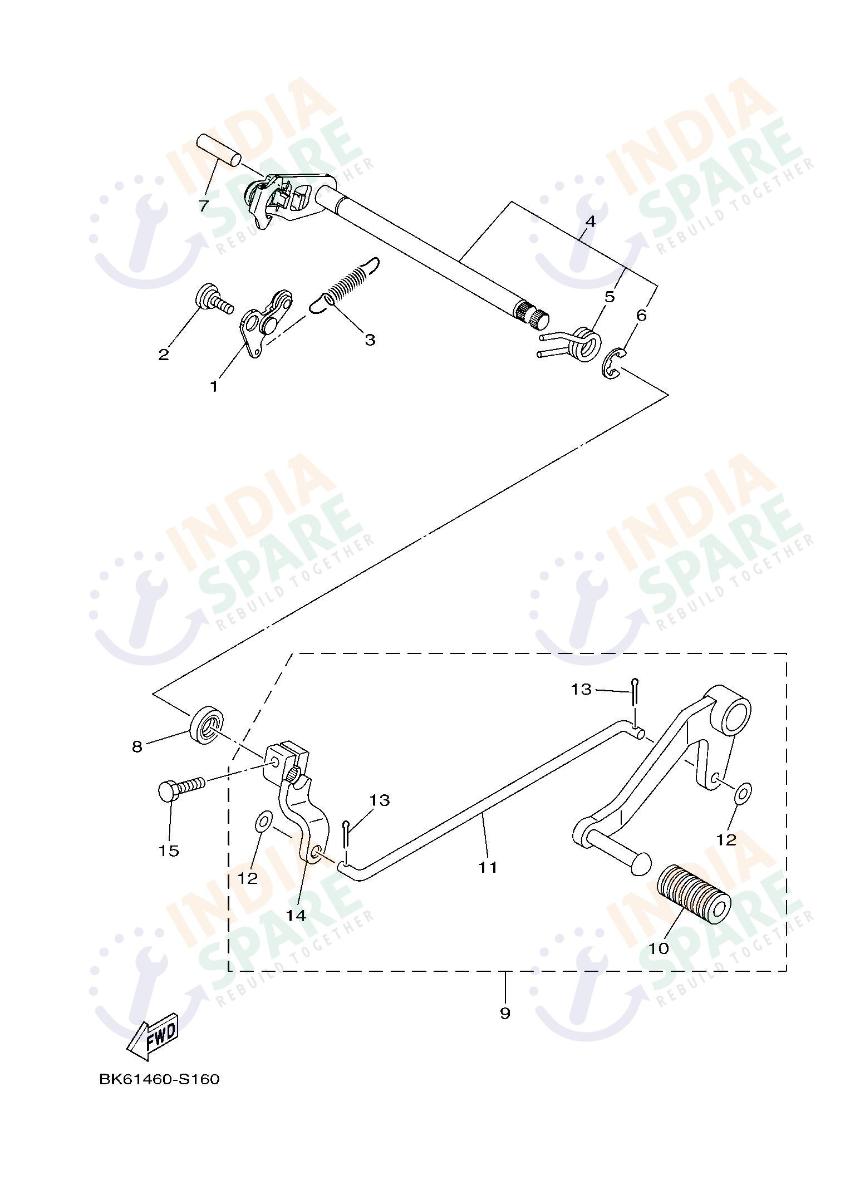

SHIFT SHAFT
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E81400000 | STOPPER LEVER ASSY | ₹ 46 | 1 | ||
| 2 | 901090625900 | BOLT | ₹ 88 | 1 | ||
| 3 | BK7E83370000 | SPRING | ₹ 6 | 1 | ||
| 4 | 38BE81010000 | SHIFT SHAFT ASSY | ₹ 212 | 1 | ||
| 5 | 905083283700 | SPRING TORSION | ₹ 7 | 1 | ||
| 6 | 990011060000 | CIRCLIP | ₹ 2 | 1 | ||
| 7 | 936083083900 | PIN DOWEL | ₹ 7 | 1 | ||
| 8 | 931021280900 | OIL SEAL | ₹ 19 | 1 | ||
| 9 | BCWE81101100 | SHIFT PEDAL ASSY | ₹ 460 | 1 | ||
| 10 | 20PE81130100 | COVER, SHIFT PEDAL | ₹ 18 | 1 | ||
| 11 | BK7E81150000 | ROD SHIFT | ₹ 39 | 1 | ||
| 12 | 929070620000 | WASHER | ₹ 5 | 2 | ||
| 13 | 902521880000 | PIN SPLIT | ₹ 1 | 2 | ||
| 14 | BCWE81120000 | ARM SHIFT | ₹ 177 | 1 | ||
| 15 | 970120602000 | BOLT | ₹ 10 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - View at IndiaSpare. Navigating through the six gears of your high performance engine requires absolute smoothness plus mechanical precision from the original Yamaha R15 V3 S shift components. Our Shift Shaft assembly catalog features every required part for the gearbox interface including the primary Shift Shaft plus specialized Stopper Lever units. Included within this section are high quality Shift Pedals alongside the original Torsion Springs plus various Oil Seals needed for the engine casing. Precision hardware like Circlip units plus Pin Dowels ensures that the gear shifting mechanism stays tight plus provides immediate feedback to the riders foot. Authentic shift rods plus pedals prevent missed shifts during high RPM racing while ensuring that neutral gear remains easy to find every single time. Every Indian rider understands that the mechanical feel of the R15 V3 S gearbox represents the spirit of a track bike. Browse at IndiaSpare.
