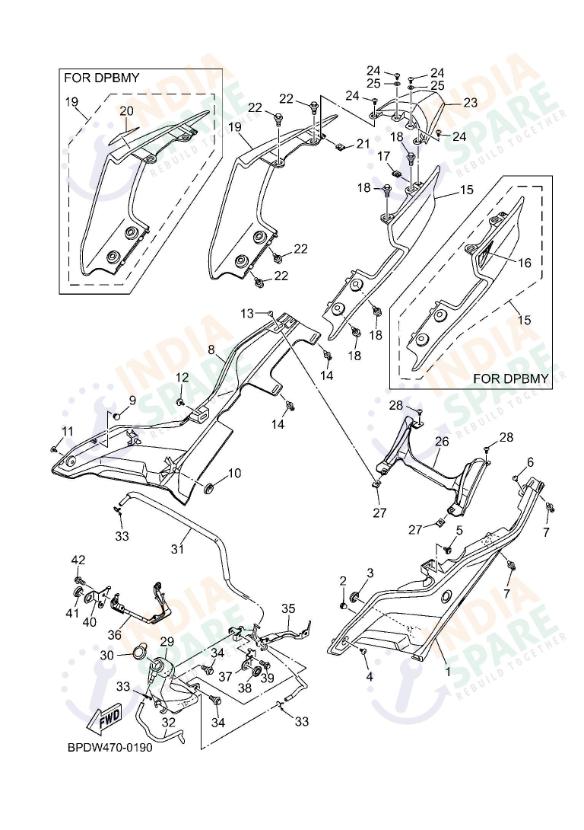

SIDE COVER
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BLXF17110000 | COVER SIDE 1 | ₹ 207 | 1 | ||
| 2 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 3 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 4 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 5 | 901590681700 | SCREW, WITH WASHER | ₹ 10 | 1 | ||
| 6 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 7 | 902690681200 | RIVET | ₹ 20 | 2 | ||
| 8 | BLXF17210000 | COVER SIDE 2 | ₹ 207 | 1 | ||
| 9 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 10 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 11 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 12 | 901590681700 | SCREW, WITH WASHER | ₹ 10 | 1 | ||
| 13 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 14 | 902690681200 | RIVET | ₹ 20 | 2 | ||
| 15A | BLXXF17300P0 | COVER SIDE 3 | ₹ 962 | 1 | FOR DPBMY | |
| 15B | BLXF173100P1 | COVER SIDE 3 | ₹ 811 | 1 | FOR MBL2 | |
| 16 | B0TF173E0000 | GRAPHIC 1 | ₹ 22 | 1 | FOR DPBMY | |
| 17 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 18 | 90109068B200 | BOLT | ₹ 13 | 4 | ||
| 19A | BLXXF17400P0 | COVER SIDE 4 | ₹ 962 | 1 | FOR DPBMY | |
| 19B | BLXF174100P1 | COVER SIDE 4 | ₹ 811 | 1 | FOR MBL2 | |
| 20 | B0TF173F0000 | GRAPHIC 2 | ₹ 22 | 1 | FOR DPBMY | |
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 22 | 90109068B200 | BOLT | ₹ 13 | 4 | ||
| 23 | BK7F171E0000 | COVER SIDE 5 (BLACK) | ₹ 119 | 1 | ||
| 24 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 25 | 902010502900 | WASHER, PLATE | ₹ 10 | 2 | ||
| 26 | BLXF171X0000 | COVER SIDE 6 | ₹ 67 | 1 | ||
| 27 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 28 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 29 | BK7F18710000 | TANK RECOVERY | ₹ 105 | 1 | ||
| 30 | BK7F18750000 | CAP | ₹ 12 | 1 | ||
| 31 | BK7F18170000 | PIPE 2 | ₹ 81 | 1 | ||
| 32 | BK7F247A0000 | HOSE 1 | ₹ 11 | 1 | ||
| 33 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 3 | ||
| 34 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 35 | BK7F82830000 | BRACKET POUCH | ₹ 231 | 1 | ||
| 36 | BPLF82840000 | BPLF82840000 | ₹ 0 | 1 | ||
| 37 | BK7F84170000 | PLATE | ₹ 22 | 1 | ||
| 38 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 39 | 950220601400 | BOLT FLANGE | ₹ 12 | 1 | ||
| 40 | B0TF841F0000 | PLATE | ₹ 53 | 1 | ||
| 41 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 42 | 950220601400 | BOLT FLANGE | ₹ 12 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Pick at IndiaSpare. Aero dynamic bodywork plus aggressive graphics provide the distinct track ready personality of every genuine Yamaha R15 V3 S cruising the streets of our country. This Side Cover catalog assembly contains every external fairing piece including Side Cover units plus original Recovery Tank components required for thermal management. Included within this collection are the specialized Graphic kits for various model years plus the necessary Grommet plus Nut Spring kits for assembly. These plastic panels feature high quality paints along with UV resistant graphics meant to stay bright despite constant exposure to sun plus road grime. Genuine side fairings include internal mounting points for original fasteners that ensure a rattle free experience while riding at top highway speed. Owners of the R15 V3 S understand that authentic body panels fit perfectly without the need for forced modifications today. Source at IndiaSpare.
