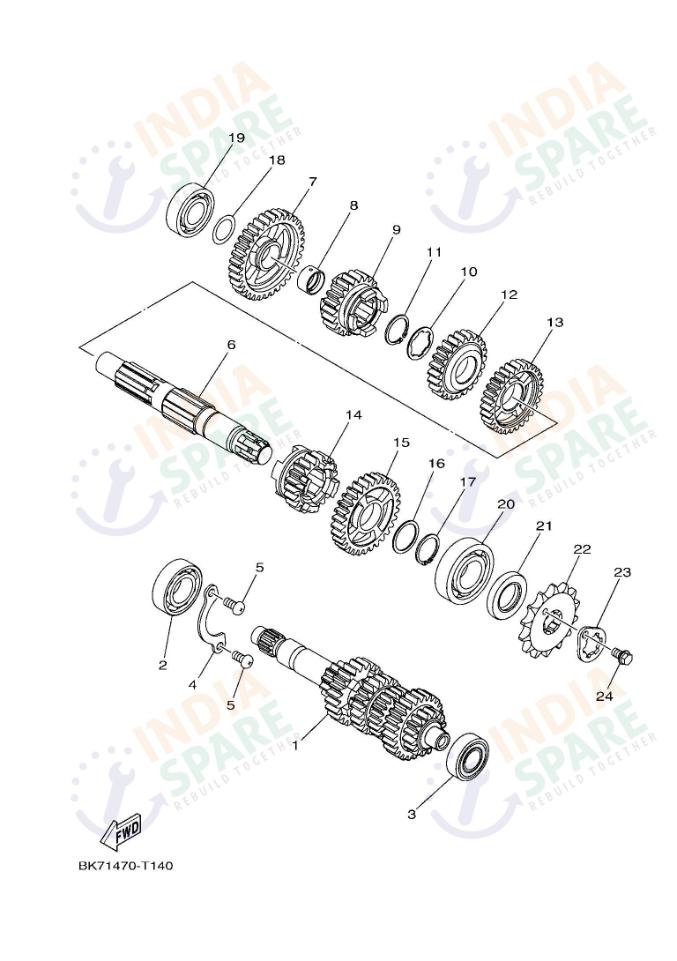

TRANSMISSION
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B0TE74103000 | MAIN AXLE COMP. | ₹ 4415 | 1 | ||
| 2 | 93306054XG00 | BEARING | ₹ 225 | 1 | ||
| 3 | 933062021500 | BEARING | ₹ 257 | 1 | ||
| 4 | 38BE74710000 | PLATE COVER | ₹ 17 | 1 | ||
| 5 | 985020601200 | SCREW PAN HEAD | ₹ 17 | 2 | ||
| 6 | B0TE74213000 | AXLE, DRIVE | ₹ 1465 | 1 | ||
| 7 | B0TE72113000 | GEAR, 1ST WHEEL | ₹ 502 | 1 | ||
| 8 | 38BE72580000 | COLLAR 1 | ₹ 57 | 1 | ||
| 9 | B0TE72513000 | GEAR, 5TH WHEEL | ₹ 580 | 1 | ||
| 10 | 902091820800 | WASHER PLAIN | ₹ 16 | 1 | ||
| 11 | 934102203900 | CIRCLIP | ₹ 4 | 1 | ||
| 12 | BK6E72410000 | GEAR 4TH WHEEL | ₹ 670 | 1 | ||
| 13 | B0TE72313000 | GEAR, 3RD WHEEL | ₹ 608 | 1 | ||
| 14 | B0TE72613000 | GEAR, 6TH WHEEL | ₹ 811 | 1 | ||
| 15 | B0TE72212000 | GEAR 2ND WHEEL | ₹ 611 | 1 | ||
| 16 | 902012279300 | WASHER PLATE | ₹ 55 | 1 | ||
| 17 | 934102203900 | CIRCLIP | ₹ 4 | 1 | ||
| 18 | 90201173F400 | WASHER, PLATE | ₹ 23 | 1 | ||
| 19 | 93306203XR00 | BEARING | ₹ 227 | 1 | ||
| 20 | 93306272X400 | BEARING | ₹ 242 | 1 | ||
| 21 | 931022281800 | OIL SEAL | ₹ 21 | 1 | ||
| 22 | 938221480000 | SPROCKET DRIVE(14T) | ₹ 127 | 1 | ||
| 23 | 4LSE74560000 | HOLDER SPROCKET | ₹ 4 | 1 | ||
| 24 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Discover at IndiaSpare. High velocity cruising requires a durable drivetrain where every gear ratio works in absolute harmony inside the robust heart of your Yamaha R15 V3 S. Our Transmission catalog provides the complete Main Axle plus Drive Axle units along with specialized gear wheels for every speed range on your motorcycle. Within this comprehensive assembly including high speed Bearings plus original Plate Covers plus Circlip kits we offer all parts for transmission repairs. Precision items like the Drive Sprocket plus various Oil Seals ensure that power reaches the rear wheel with minimal loss while maintaining internal lubrication. Authentic Gear Wheel sets are designed with specific tooth profiles meant for quiet plus efficient power delivery during high speed touring through the highways. Every part is tested to withstand the heat generated by the high RPM characteristic that makes the R15 V3 S an icon. Lock at IndiaSpare.
